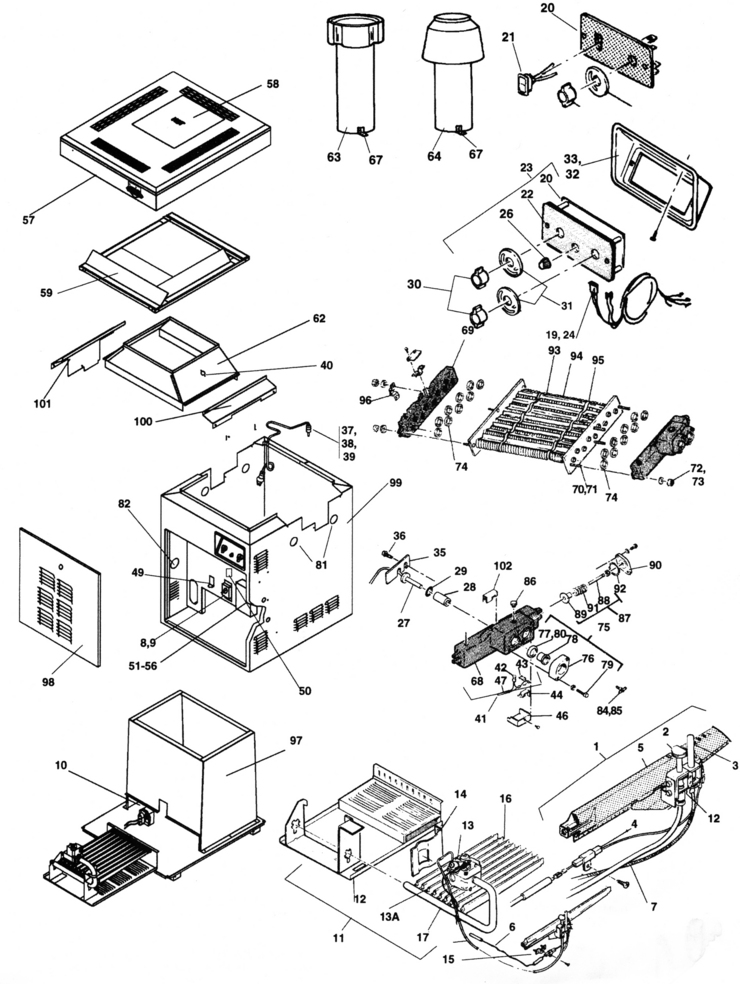

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Jandy

Model Name: Laars Lite2 LJ (Mfg. 2003-Present



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R0383601	Burner Tray Assy, NAT	Yes	1 Day(s)	$1221.25
1	R0383705	Burner Tray Assy, LPG	Yes	1 Day(s)	$1430.62
1	R0383704	Burner Tray Assy, LPG	Yes	1 Day(s)	$1395.72
1	R0383703	Burner Tray Assy, LPG	Yes	1 Day(s)	$1308.50
1	R0383702	Burner Tray Assy, LPG	Yes	1 Day(s)	$1256.14
1	R0383701	Burner Tray Assy, LPG	Yes	1 Day(s)	$1221.25
1	R0383605	Burner Tray Assy, NAT	Yes	1 Day(s)	$1430.62
1	R0383604	Burner Tray Assy, NAT	Yes	1 Day(s)	$1395.72
1	R0383603	Burner Tray Assy, NAT	Yes	1 Day(s)	$1308.50
1	R0383602	Burner Tray Assy, NAT	Yes	1 Day(s)	$1256.14
2	R0317005	Burner Tray, Shelf Only	Yes	1 Day(s)	$165.75
2	R0317004	Burner Tray, Shelf Only	Yes	1 Day(s)	$160.50
2	R0317003	Burner Tray, Shelf Only	Yes	1 Day(s)	$157.00
2	R0317002	Burner Tray, Shelf Only	Yes	1 Day(s)	$151.79
2	R0317001	Burner Tray, Shelf Only	Yes	1 Day(s)	$148.31
3	R0317100	Gas Valve, NAT	Yes	1 Day(s)	$256.47
3	R0319600	Gas Valve, LPG	Yes	1 Day(s)	$270.43
4	L0032900	Gas Orifice, LPG 0 - 5,000 ft alt. (EA.) (b)	Yes	1 Day(s)	$2.19
4	L0032200	Gas Orifice, NAT 0 - 3,000 ft alt. (EA.) (a)	Yes	1 Day(s)	$2.19
5	10835900	Anti-Rotation Bracket	No	N/A	N/A	N/A
6	L0052300	Burner, Main	Yes	1 Day(s)	$16.57
7	L0006600	Burner Manifold	Yes	1 Day(s)	$104.68
7	L0006500	Burner Manifold	Yes	1 Day(s)	$101.18
7	L0006400	Burner Manifold	Yes	1 Day(s)	$95.95
7	L0006300	Burner Manifold	Yes	1 Day(s)	$92.48
7	L0052200	Burner Manifold	Yes	1 Day(s)	$86.80
8	R0366200	Heater Control Assembly	Yes	1 Day(s)	$333.24
9	R0366500	High Voltage Assembly	Yes	1 Day(s)	$374.22
10	R0366700	Transformer with Wiring Harness	Yes	1 Day(s)	$50.61
11	R0366800	Power Control Board	Yes	1 Day(s)	$357.67
12	R0366900	115/230 VAC Conversion Plug	Yes	1 Day(s)	$46.19
13	S0069800	Bezel	Yes	1 Day(s)	$27.47
14	R0367000	Temperature Sensor	Yes	1 Day(s)	$80.24
15	R0367000	Gasket, Temperature Sensor	Yes	1 Day(s)	$80.24
16	10447300	Temperature Sensor Retainer Bracket	Yes	1 Day(s)	$1.87
17	F0009100	Retainer Bracket Screw	Yes	1 Day(s)	$1.32
19	R0013200	Pressure Switch, 2 PSI	Yes	1 Day(s)	$70.66
19	R0015500	Pressure Switch, 1-10 PSI	Yes	1 Day(s)	$76.31
20	R0057800	Siphon Loop Assembly	Yes	1 Day(s)	$57.61
21	R0023200	High-Limit Switch Assembly	Yes	1 Day(s)	$66.32
22	R0022700	High-Limit Switch, 135° F	Yes	1 Day(s)	$32.27
23	R0023000	High-Limit Switch, 150° F	Yes	1 Day(s)	$32.27
24	S0098900	High- Limit Switch Retainer Boot (c)	Yes	1 Day(s)	$3.92
25	10419301	High-Limit Switch Wire Harness	Yes	1 Day(s)	$51.78
26	10728500	High- Limit Switch Retainer Clip	Yes	1 Day(s)	$2.60
27	10418300	High- Limit Switch Cover	Yes	1 Day(s)	$3.34
28	R0012200	Fusible Link Assembly	Yes	1 Day(s)	$7.86
29	10479900	Fusible Link Bracket	Yes	1 Day(s)	$2.23
30	R0383900	Igniter Box Assembly Kit	No	N/A	N/A	N/A
31	R0449800	Igniter	Yes	1 Day(s)	$133.91
32	R0383300	Igniter Fuse Assy (set of 2)	Yes	1 Day(s)	$23.76
33	R0334300	Flame Sense Rod	Yes	1 Day(s)	$148.31
34	R0366600	Wire Harnesses, Temp/Ignition Control (c)	Yes	1 Day(s)	$39.86
35	R0343405	Top Enclosure	Yes	1 Day(s)	$471.04
35	R0343404	Top Enclosure	Yes	1 Day(s)	$455.36
35	R0343403	Top Enclosure	Yes	1 Day(s)	$443.13
35	R0343402	Top Enclosure	Yes	1 Day(s)	$429.19
35	R0343401	Top Enclosure	Yes	1 Day(s)	$418.72
36	R0343705	Top Filler Plate	Yes	1 Day(s)	$53.20
36	R0343704	Top Filler Plate	Yes	1 Day(s)	$39.69
36	R0343703	Top Filler Plate	Yes	1 Day(s)	$36.21
36	R0343702	Top Filler Plate	Yes	1 Day(s)	$32.27
36	R0343701	Top Filler Plate	Yes	1 Day(s)	$30.98
37	R0318301	Rainshield Kit	Yes	1 Day(s)	$72.84
37	R0318302	Rainshield Kit	Yes	1 Day(s)	$77.20
37	R0318303	Rainshield Kit	Yes	1 Day(s)	$81.55
37	R0318304	Rainshield Kit	Yes	1 Day(s)	$86.36
37	R0318305	Rainshield Kit	Yes	1 Day(s)	$90.72
38	R0316405	Flue Collector Assembly	Yes	1 Day(s)	$218.11
38	R0316404	Flue Collector Assembly	Yes	1 Day(s)	$214.60
38	R0316403	Flue Collector Assembly	Yes	1 Day(s)	$209.37
38	R0316402	Flue Collector Assembly	Yes	1 Day(s)	$209.37
38	R0316401	Flue Collector Assembly	Yes	1 Day(s)	$200.64
39	10561501	Outdoor Vent Cap	Yes	1 Day(s)	$90.69
39	10561502	Outdoor Vent Cap	Yes	1 Day(s)	$98.24
39	10561503	Outdoor Vent Cap	Yes	1 Day(s)	$105.79
39	10561504	Outdoor Vent Cap	Yes	1 Day(s)	$119.65
39	10561505	Outdoor Vent Cap	Yes	1 Day(s)	$124.27
40	10561405	Indoor Drafthood	Yes	1 Day(s)	$124.27
40	10561404	Indoor Drafthood	Yes	1 Day(s)	$119.65
40	10561403	Indoor Drafthood	Yes	1 Day(s)	$105.79
40	10561402	Indoor Drafthood	Yes	1 Day(s)	$98.24
40	10561401	Indoor Drafthood	Yes	1 Day(s)	$90.69
41	10861901	Flue Transition Plate	Yes	1 Day(s)	$7.07
41	10861902	Flue Transition Plate	Yes	1 Day(s)	$7.81
41	10861903	Flue Transition Plate	Yes	1 Day(s)	$8.58
41	10861904	Flue Transition Plate	Yes	1 Day(s)	$9.32
41	10861905	Flue Transition Plate	Yes	1 Day(s)	$9.69
42	10535305	Adapter Plate	No	N/A	N/A	N/A
42	10535304	Adapter Plate	No	N/A	N/A	N/A
42	10535303	Adapter Plate	Yes	1 Day(s)	$17.14
42	10535302	Adapter Plate	Yes	1 Day(s)	$15.64
42	10535301	Adapter Plate	Yes	1 Day(s)	$14.53
43	10211000	Clip	Yes	1 Day(s)	$1.50
44	10726000	Flue Collector Hold Down Clamp	No	N/A	N/A	N/A
45	R0016800	Inlet/ Outlet Header, Bronze, 2""	Yes	1 Day(s)	$732.76
45	R0056400	Inlet/ Outlet Header, 2""	Yes	1 Day(s)	$446.63
46	R0058300	Return Header (Includes set of 9 gaskets)	Yes	1 Day(s)	$172.72
46	R0054600	Return Header, Bronze(Includes set of 9 gaskets)	Yes	1 Day(s)	$369.86
47	R0057000	Header Bolt Assembly (Set of 8)	Yes	1 Day(s)	$25.75
