Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Jandy
Model Name: Leaf Master

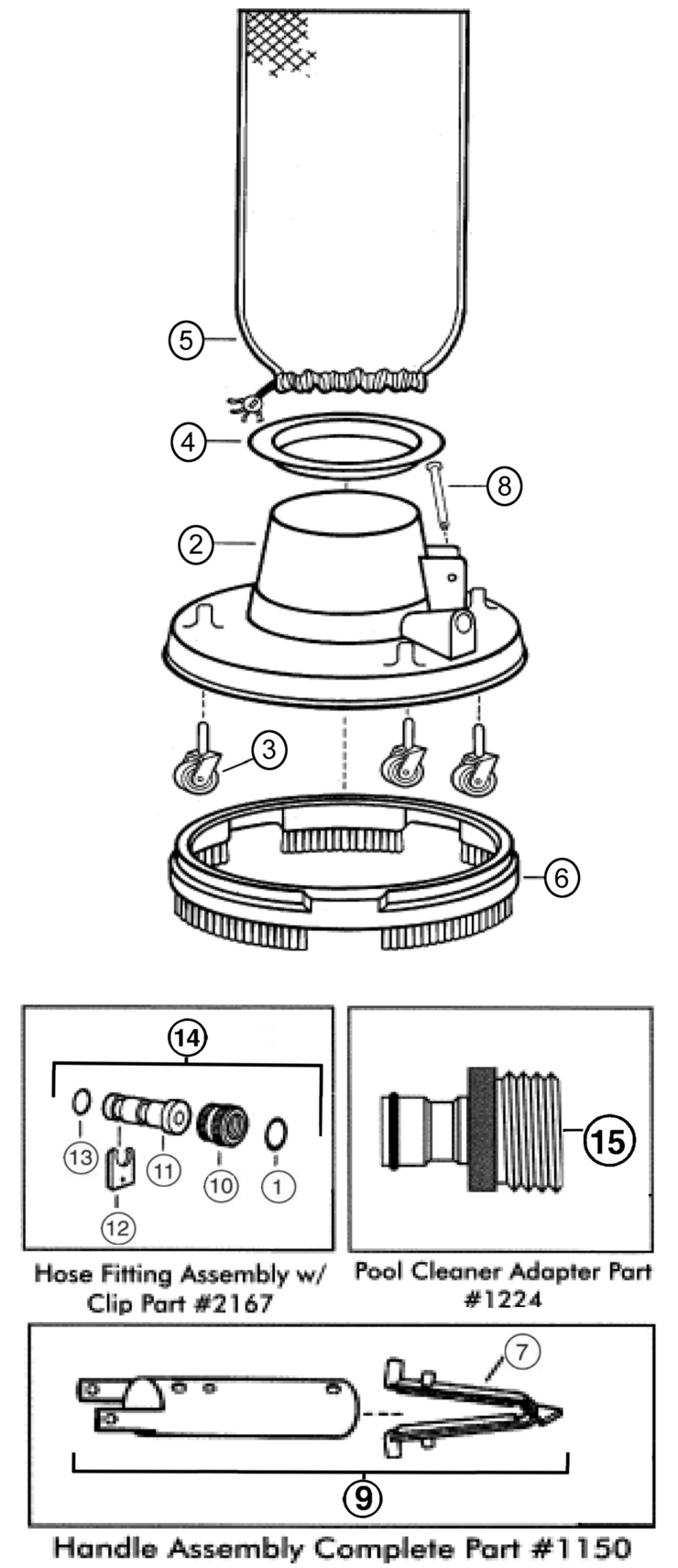

Jandy Leaf-Master replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 1217 Shell (Purchase new Leaf Master) (c) No N/A N/A N/A

3

 1218 Wheel Assembly Complete Yes 1 Day(s) $13.23

4

 1219 Bag Ring Yes 1 Day(s) $13.61

5

 1222 Standard Replacement Bag Yes 1 Day(s) $31.98

5

 1221 Fine Mesh Bag Yes 1 Day(s) $26.48

8

 1226 Handle Pin Yes 1 Day(s) $7.89

9

 1150 Handle Assembly Complete Yes 1 Day(s) $18.54

14

 2167 Hose Fitting Assembly W/ Clip Yes 1 Day(s) $20.84

15

 1224 Pool Cleaner Adapter Yes 1 Day(s) $35.42
