SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

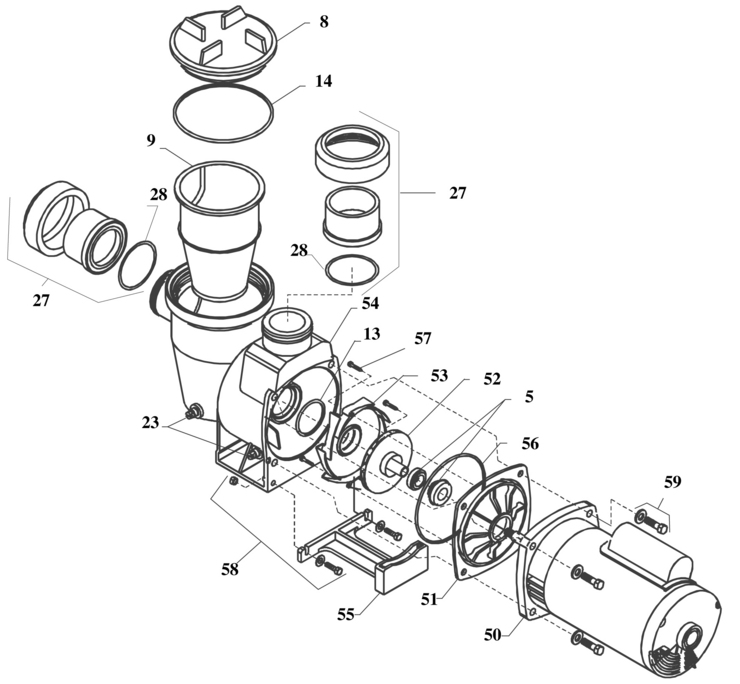

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Jandy

Model Name: MHP & MHPU Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	R0341200	Hardware Set, Complete	Yes	1 Day(s)	$49.73
-	R0341100	O-ring Set	Yes	1 Day(s)	$44.03
5	R0338200	Mechanical Seal	Yes	1 Day(s)	$19.21
8	R0338500	Pot Lid	Yes	1 Day(s)	$49.27
9	R0338600	Pot Basket	Yes	1 Day(s)	$19.21
13	R0338801	O-ring, -330, Diffuser	Yes	1 Day(s)	$4.35
14	R0338900	O-ring, -359, Pot Lid	Yes	1 Day(s)	$13.96
23	R0339100	Drain Plugs (2 req.)	No	N/A	N/A	N/A
27	R0339500	Coupling Nut Set	Yes	1 Day(s)	$42.97
28	R0339600	O-ring, -332, Coupling Set (2 req.)	Yes	1 Day(s)	$7.42
50	R0339805	Motor, Up-Rated, MHPU	Yes	1 Day(s)	$645.51
50	R0339804	Motor, Up-Rated, MHPU	Yes	1 Day(s)	$575.73
50	R0339803	Motor, Up-Rated, MHPU	Yes	1 Day(s)	$507.71
50	R0339802	Motor, Up-Rated, MHPU	Yes	1 Day(s)	$458.86
50	R0339801	Motor, Up-Rated, MHPU	Yes	1 Day(s)	$434.43
50	R0339704	Motor, Full Rated, MHP	Yes	1 Day(s)	$645.51
50	R0339703	Motor, Full Rated, MHP	Yes	1 Day(s)	$575.73
50	R0339702	Motor, Full Rated, MHP	Yes	1 Day(s)	$507.70
50	R0339701	Motor, Full Rated, MHP	Yes	1 Day(s)	$458.85
51	R0339900	Mounting Bracket	Yes	1 Day(s)	$104.68
52	R0340003	Impeller, MHP/MHPU	Yes	1 Day(s)	$53.66
52	R0340004	Impeller, MHP/MHPU	Yes	1 Day(s)	$58.00
52	R0340005	Impeller, MHP/MHPU	Yes	1 Day(s)	$63.24
52	R0340002	Impeller, MHP/MHPU	Yes	1 Day(s)	$49.73
52	R0340001	Impeller, MHPU	Yes	1 Day(s)	$47.99
53	R0340100	Diffuser	Yes	1 Day(s)	$34.45
54	R0340200	Body, Pump Face Assembly	Yes	1 Day(s)	$191.89
55	R0340300	Mounting Foot Assembly	Yes	1 Day(s)	$29.23
56	R0340400	O-ring, -259, Body	Yes	1 Day(s)	$15.29
57	R0340500	Hardware Set (3), Mntg. Diffuser (a)	Yes	1 Day(s)	$20.93
58	R0340600	Hardware Set (2), Mntg. Foot (a)	Yes	1 Day(s)	$5.65
59	R0340700	Hardware Set (4) Mntg. Motor (a)	No	N/A	N/A	N/A
