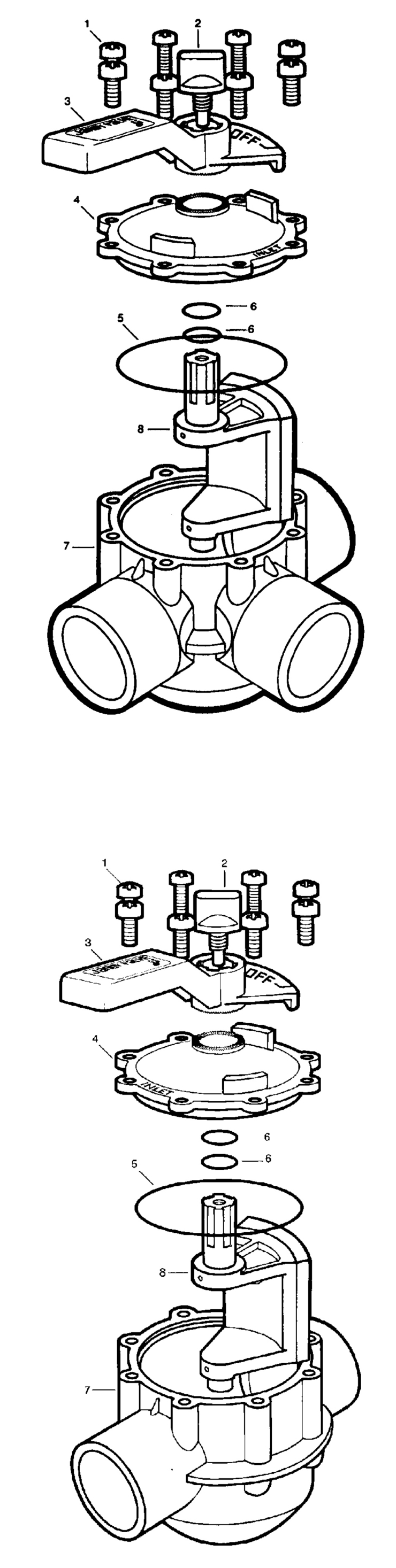

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Jandy

Model Name: NeverLube Backwash Valve Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R0552100	HANDLE KIT Knob (ABS), black Handle, NeverLube, black	Yes	1 Day(s)	$53.06
2	R0552200	COVER KIT Valve Cover, top; Valve Cover, bottom; O-ring, 151 (2); O-ring, 116 (4); Screws, Machine #14 (16)	Yes	1 Day(s)	$30.82
3	R0552300	DIVERTER KIT Valve Shaft, backwash; Sub-Assembly Diverter (2); Installation Manual	Yes	1 Day(s)	$78.75
4	R0552400	O-RING KIT Par Ring (2); O-ring, 151 (2); O-ring, 116 (8); Installation Manual	Yes	1 Day(s)	$8.75
