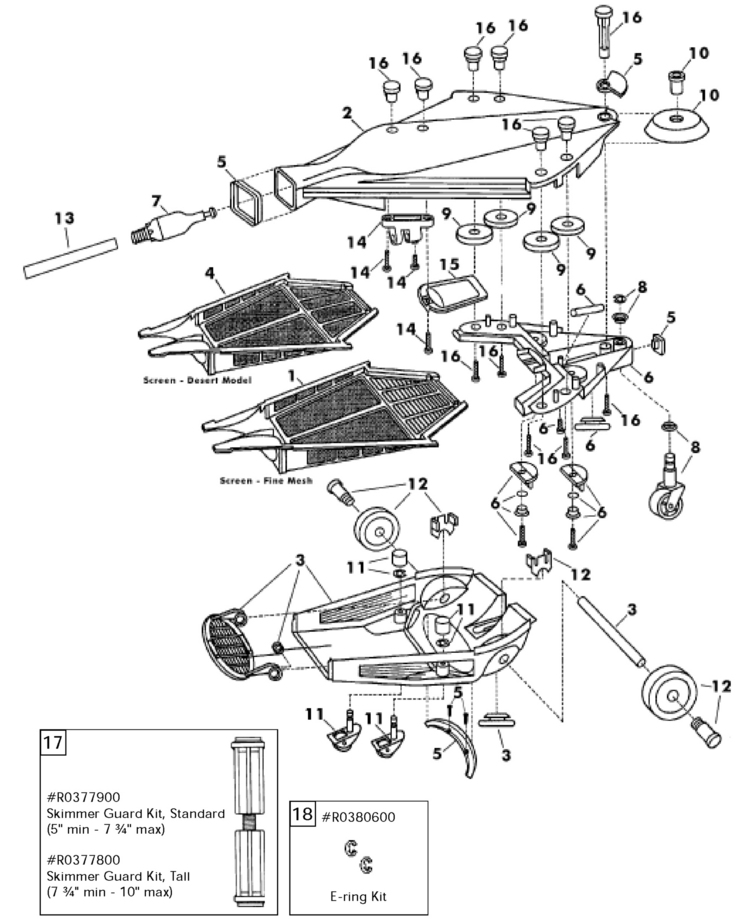

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Jandy

Model Name: Ray-Vac Desert Model Head, Gunite



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R0375300	Screen, Fine Mesh, Black	Yes	1 Day(s)	$96.42
1	R0374700	Screen, Fine Mesh, White	Yes	1 Day(s)	$71.52
3	R0375100	Bottom Complete, White	Yes	1 Day(s)	$209.93
3	R0376600	Bottom Complete, Black	Yes	1 Day(s)	$260.70
4	R0375200	Screen, Desert Model	Yes	1 Day(s)	$110.04
5	R0375500	Bumper Flatmouth Kit, White	Yes	1 Day(s)	$21.15
5	R0375600	Bumper Flatmouth Kit, Black	Yes	1 Day(s)	$24.11
5	R0375500	Bumper Flatmouth Kit, White	Yes	1 Day(s)	$21.15
6	R0375800	Nose Plate Kit, Gunite, White	Yes	1 Day(s)	$67.72
6	R0376700	Nose Plate Kit, Gunite, Black	Yes	1 Day(s)	$86.35
8	R0379700	Castor Wheel Kit, Gunite, Black	Yes	1 Day(s)	$30.65
8	R0378800	Castor Wheel Kit, Gunite, White	Yes	1 Day(s)	$28.44
9	R0379800	Side Wheel Kit, Black	Yes	1 Day(s)	$13.34
9	R0378900	Side Wheel Kit, White	Yes	1 Day(s)	$13.34
9	R0378900	Side Wheel Kit, White	Yes	1 Day(s)	$13.34
10	R0379900	Nose Wheel Kit, Gunite, Black	Yes	1 Day(s)	$25.31
10	R0379000	Nose Wheel Kit, Gunite, White	Yes	1 Day(s)	$17.33
11	R038000	Swivel Wheel Kit, Gunite, Black	No	N/A	N/A	N/A
11	R0379100	Swivel Wheel Kit, Gunite, White	Yes	1 Day(s)	$13.34
12	R0380100	Drive Wheel Kit, Gunite, Black	Yes	1 Day(s)	$9.33
12	R0379200	Drive Wheel Kit, Gunite, White	Yes	1 Day(s)	$8.88
14	R0380300	Transporter Jet Sleeve Kit	No	N/A	N/A	N/A
14	R0380300	Transporter Jet Sleeve Kit	No	N/A	N/A	N/A
15	R0380400	Head Float	Yes	1 Day(s)	$31.11
15	R0380400	Head Float	Yes	1 Day(s)	$31.11
16	R0380500	Wear Button Kit	Yes	1 Day(s)	$31.11
16	R0380500	Wear Button Kit	Yes	1 Day(s)	$31.11
17	R0377800	Skimmer Guard Kit, Tall	Yes	1 Day(s)	$28.44
17	R0377800	Skimmer Guard Kit, Tall	Yes	1 Day(s)	$28.44
17	R0377900	Skimmer Guard Kit, Standard	Yes	1 Day(s)	$28.44
17	R0377900	Skimmer Guard Kit, Standard	Yes	1 Day(s)	$28.44
18	R0380600	E-ring Kit (set of 2)	Yes	1 Day(s)	$12.69
18	R0380600	E-ring Kit (set of 2)	Yes	1 Day(s)	$12.69
