SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

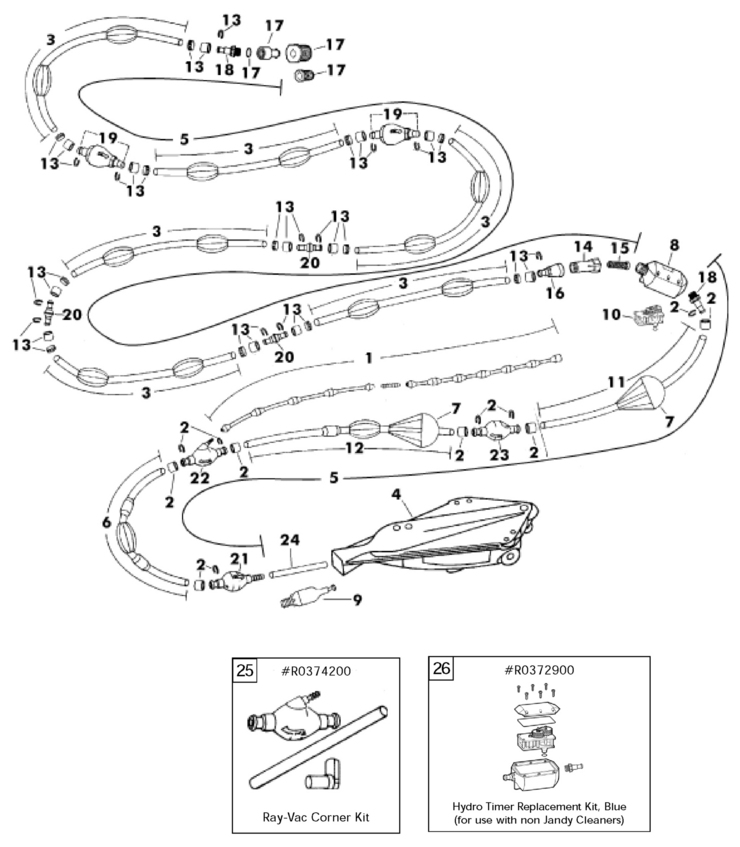

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Jandy
Model Name: Ray-Vac Desert Model Hose

Jandy RayVac-Desert-Model-Hose replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 R0373400 Whip Kit Yes 1 Day(s) $40.89

2

 R0374100 Mender Sleeve 1 1/2" Kit Yes 1 Day(s) $8.47

3

 R0374300 Hose Kit 5/8" Vinyl w/Floats Yes 1 Day(s) $28.44

4

 R0375000 Head Replacement Black Yes 1 Day(s) $501.10

4

 R0374900 Head Replacement White Yes 1 Day(s) $501.10

4

 R0376000 Head Replacement Vinyl Yes 1 Day(s) $501.10

4

 R0376800 Head Replacement Desert Model Yes 1 Day(s) $419.96

4

 R0375000 Head Replacement Black Yes 1 Day(s) $501.10

4

 R0374900 Head Replacement White Yes 1 Day(s) $501.10

4

 R0376000 Head Replacement Vinyl Yes 1 Day(s) $501.10

5

 R0375400 Hose Replacement Kit Yes 1 Day(s) $1049.62

6

 R0375700 Hose 1/2" Silicone w/Wear Sleeve and Floats Yes 1 Day(s) $26.65

7

 R0376400 Sea Anchor Kit Yes 1 Day(s) $22.24

8

 R0376500 Hydro Timer Replacement Kit Yes 1 Day(s) $96.50

9

 R0376900 Transporter Jet Kit Yes 1 Day(s) $22.02

9

 R0376900 Transporter Jet Kit Yes 1 Day(s) $22.02

9

 R0376900 Transporter Jet Kit Yes 1 Day(s) $22.02

10

 R0377000 Hydro Timer Gear Assembly Kit Yes 1 Day(s) $67.29

11

 R0377100 Hose 1/2" Vinyl with Sea Anchor Yes 1 Day(s) $26.65

12

 R0377200 Hose 1/2" Silicone with Sea Anchor and Floats Yes 1 Day(s) $52.06

13

 R0377300 Mender Sleeve 5/8" Kit Yes 1 Day(s) $4.45

14

 R0377400 Filter Screen Case Yes 1 Day(s) $17.77

15

 R0377500 Filter Screen No N/A $13.34

16

 R0377600 Filter Screen Fitting Yes 1 Day(s) $10.68

17

 R0378000 Quick Disconnect Replacement Kit Yes 1 Day(s) $21.78

17

 R0378000 Quick Disconnect Replacement Kit Yes 1 Day(s) $21.78

18

 R0378100 Swivel Ball Bearing Yes 1 Day(s) $22.24

19

 R0378300 Hose Line Swivel Kit Yes 1 Day(s) $26.65

20

 R0378400 Hose Coupler Kit Yes 1 Day(s) $5.31

21

 R0378500 Hose Pusher Jet Kit Yes 1 Day(s) $17.77

22

 R0378600 Hose Line Whip "Y" Jet Kit Yes 1 Day(s) $21.34

23

 R0378700 Hose Line Jet Kit Yes 1 Day(s) $13.34

24

 R0380200 Pusher Hose Yes 1 Day(s) $22.68

24

 R0380200 Pusher Hose Yes 1 Day(s) $22.68

24

 R0380200 Pusher Hose Yes 1 Day(s) $22.68

25

 R0374200 Corner Kit Yes 1 Day(s) $40.02

26

 R0372900 Hydro-Timer Replacement Kit (for use with non Jandy cleaners) Yes 1 Day(s) $79.95
