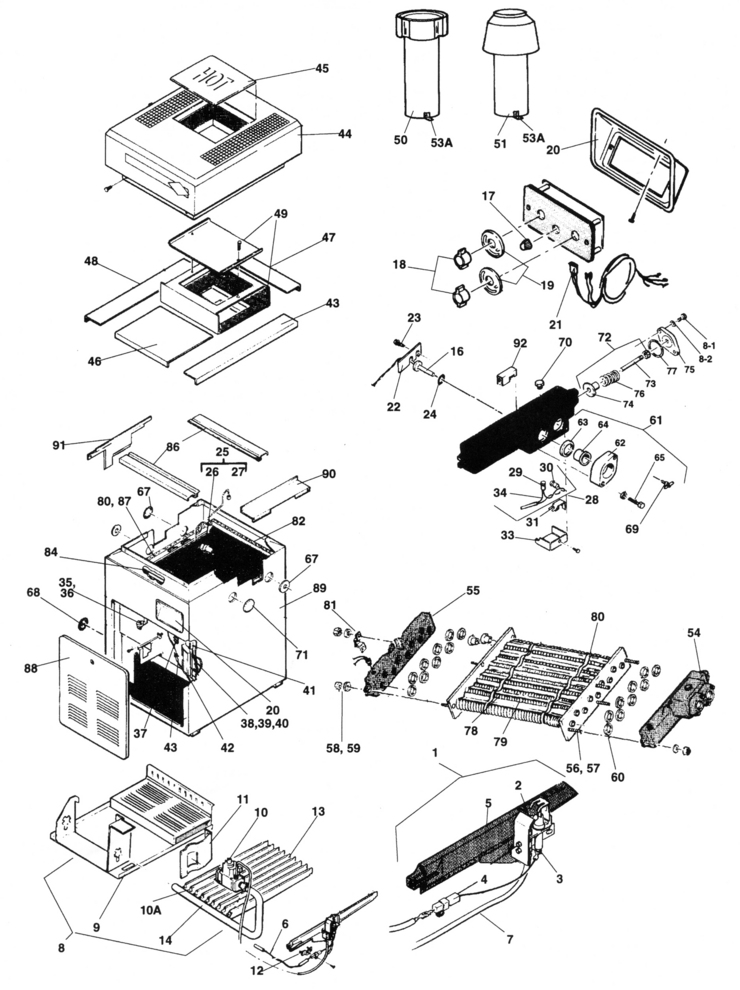

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Jandy

Model Name: Series 2 ESC (Mfg. 1993-1996)



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	R0040400	Pressure ReliefValve 3/4"" NPT, 75 PSI	Yes	1 Day(s)	$30.08
	10521701	Non Combustible Base	Yes	1 Day(s)	$49.53
	10521702	Non Combustible Base	Yes	1 Day(s)	$54.00
	10521703	Non Combustible Base	Yes	1 Day(s)	$60.34
	10521704	Non Combustible Base	Yes	1 Day(s)	$66.67
	10521705	Non Combustible Base	Yes	1 Day(s)	$73.74
1	R0096000	Pilot, Main Burner Assembly, NAT	Yes	1 Day(s)	$99.47
1	R0096500	Pilot, Main Burner Assembly, LPG	Yes	1 Day(s)	$99.47
2	R0061600	Pilot Burner, NAT	Yes	1 Day(s)	$74.59
2	R0095800	Pilot Burner, LPG	Yes	1 Day(s)	$82.43
3	W0041100	Pilot Bracket Shield	No	N/A	N/A	N/A
4	R0011600	Ceramic Insulator Assembly	Yes	1 Day(s)	$24.45
5	10457500	Burner, Main w/ Pilot Brkt	Yes	1 Day(s)	$14.53
6	R0099000	High Voltage Lead Assembly	Yes	1 Day(s)	$7.86
7	R0037000	Pilot Tubing	Yes	1 Day(s)	$13.09
8	R0097202	Burner Trav Assembly, LPG	Yes	1 Day(s)	$819.35
8	R0097205	Burner Trav Assembly, LPG	Yes	1 Day(s)	$923.63
8	R0097204	Burner Trav Assembly, LPG	Yes	1 Day(s)	$893.85
8	R0097203	Burner Trav Assembly, LPG	Yes	1 Day(s)	$849.15
8	R0098801	Burner Tray Assembly, NAT	Yes	1 Day(s)	$774.66
8	R0098802	Burner Tray Assembly, NAT	Yes	1 Day(s)	$819.35
8	R0098803	Burner Tray Assembly, NAT	Yes	1 Day(s)	$849.15
8	R0098804	Burner Tray Assembly, NAT	Yes	1 Day(s)	$893.85
8	R0098805	Burner Tray Assembly, NAT	Yes	1 Day(s)	$923.63
8	R0097201	Burner Trav Assembly, LPG	Yes	1 Day(s)	$774.66
9	R0317005	Burner Tray, Shelf Only	Yes	1 Day(s)	$165.75
9	R0317004	Burner Tray, Shelf Only	Yes	1 Day(s)	$160.50
9	R0317003	Burner Tray, Shelf Only	Yes	1 Day(s)	$157.00
9	R0317002	Burner Tray, Shelf Only	Yes	1 Day(s)	$151.79
9	R0317001	Burner Tray, Shelf Only	Yes	1 Day(s)	$148.31
10A	L0032900	Gas Orifice, LPG (a)	Yes	1 Day(s)	$2.19
10A	L0032200	Gas Orifice, NAT (a)	Yes	1 Day(s)	$2.19
10	R0039200	Gas Valve, NAT	Yes	1 Day(s)	$270.43
10	R0099400	Gas Valve, NAT	Yes	1 Day(s)	$270.43
10	R0095900	Gas Valve, LPG	Yes	1 Day(s)	$270.42
11	10577200	Anti- Rotation Bracket	Yes	1 Day(s)	$4.84
12	10419200	Mounting Bracket Assembly	Yes	1 Day(s)	$4.47
13	L0052300	Burner, Main	Yes	1 Day(s)	$16.57
15	R0011700	Temperature Control Assembly	Yes	1 Day(s)	$333.24
16	R0011800	Temperature Sensor	Yes	1 Day(s)	$80.24
17	R0099900	Knob, Single Bar	Yes	1 Day(s)	$7.86
18	R0010700	Thermostat Knob, Black	Yes	1 Day(s)	$4.35
19	10583100	""Temp-Lok"" Stop Plate	Yes	1 Day(s)	$0.75
20	S0069800	Bezel	Yes	1 Day(s)	$27.47
21	R0058100	Wire Harness Assembly	Yes	1 Day(s)	$37.52
22	10447300	Retainer Bracket	Yes	1 Day(s)	$1.87
23	F0009100	Retainer Bracket Screw	Yes	1 Day(s)	$1.32
24	E0116400	""O"" Ring, Temperature Control Bulb	Yes	1 Day(s)	$1.32
26	R0015500	Pressure Switch, 1-10 PSI	Yes	1 Day(s)	$76.31
26	R0013200	Pressure Switch, 2 PSI	Yes	1 Day(s)	$70.66
27	R0057800	Siphon Loop Assembly	Yes	1 Day(s)	$57.61
28	R0023200	High-Limit Switch Assembly	Yes	1 Day(s)	$66.32
29	R0022700	High-Limit Switch, 135°F	Yes	1 Day(s)	$32.27
30	R0023000	High-Limit Switch, 150°F	Yes	1 Day(s)	$32.27
31	10728500	High- Limit Switch Retainer Clip	Yes	1 Day(s)	$2.60
32	S0098900	High- Limit Switch Retainer Boot	Yes	1 Day(s)	$3.92
33	10418300	High-Limit Switch Cover	Yes	1 Day(s)	$3.34
34	10419300	High-Limit Switch Wire Harness	Yes	1 Day(s)	$51.78
35	R0012200	Fusible Link Assembly	Yes	1 Day(s)	$7.86
36	10479900	Fusible Link Bracket	Yes	1 Day(s)	$2.23
37	R0097800	Terminal Block	Yes	1 Day(s)	$10.91
38	10457900	Ignition Control Assembly, NAT	Yes	1 Day(s)	$302.41
38	R0097900	Ignition Control Assembly, LPG	Yes	1 Day(s)	$376.85
39	R0097100	Ignition Control, LPG	Yes	1 Day(s)	$376.85
39	R0011900	Ignition Control, NAT	Yes	1 Day(s)	$251.23
40	R0059800	Harness Assembly	Yes	1 Day(s)	$28.79
41	R0061100	Transformer (115V-220V/24V)	Yes	1 Day(s)	$50.61
42	10451200	Ignition Control Panel	Yes	1 Day(s)	$4.47
43	10480000	In- Line Fuse Assembly	Yes	1 Day(s)	$8.95
44	R0313205	Top Enclosure	Yes	1 Day(s)	$402.22
44	R0313204	Top Enclosure	Yes	1 Day(s)	$388.82
44	R0313203	Top Enclosure	Yes	1 Day(s)	$378.38
44	R0313202	Top Enclosure	Yes	1 Day(s)	$366.47
44	R0313201	Top Enclosure	Yes	1 Day(s)	$357.53
45	10535205	Top Filler	Yes	1 Day(s)	$48.06
45	10535204	Top Filler	Yes	1 Day(s)	$35.76
45	10535203	Top Filler	Yes	1 Day(s)	$32.79
45	10535202	Top Filler	Yes	1 Day(s)	$29.05
45	10535201	Top Filler	Yes	1 Day(s)	$26.80
46	R0326105	Rainshield Kit	Yes	1 Day(s)	$58.85
46	R0326104	Rainshield Kit	Yes	1 Day(s)	$55.87
46	R0098001	Rainshield, Front	Yes	1 Day(s)	$33.89
46	R0098002	Rainshield, Front	Yes	1 Day(s)	$35.76
46	R0098003	Rainshield, Front	Yes	1 Day(s)	$37.60
46	R0098004	Rainshield, Front	Yes	1 Day(s)	$39.86
46	R0098005	Rainshield, Front	Yes	1 Day(s)	$41.71
46	R0326101	Rainshield Kit	Yes	1 Day(s)	$45.81
46	R0326102	Rainshield Kit	Yes	1 Day(s)	$47.30
46	R0326103	Rainshield Kit	Yes	1 Day(s)	$49.90
47	R0098102	Rainshield, Rear	Yes	1 Day(s)	$11.54
47	R0098101	Rainshield, Rear	Yes	1 Day(s)	$11.54
47	R0098105	Rainshield, Rear	Yes	1 Day(s)	$12.29
47	R0098104	Rainshield, Rear	Yes	1 Day(s)	$11.92
47	R0098103	Rainshield, Rear	Yes	1 Day(s)	$11.92
48	R0098202	Rainshield, Side	Yes	1 Day(s)	$22.72
48	R0098205	Rainshield, Side	Yes	1 Day(s)	$28.67
48	R0098203	Rainshield, Side	Yes	1 Day(s)	$24.96
48	R0098204	Rainshield, Side	Yes	1 Day(s)	$26.80
48	R0098201	Rainshield, Side	Yes	1 Day(s)	$20.87
49	R0316404	Flue Collector	Yes	1 Day(s)	$214.60
