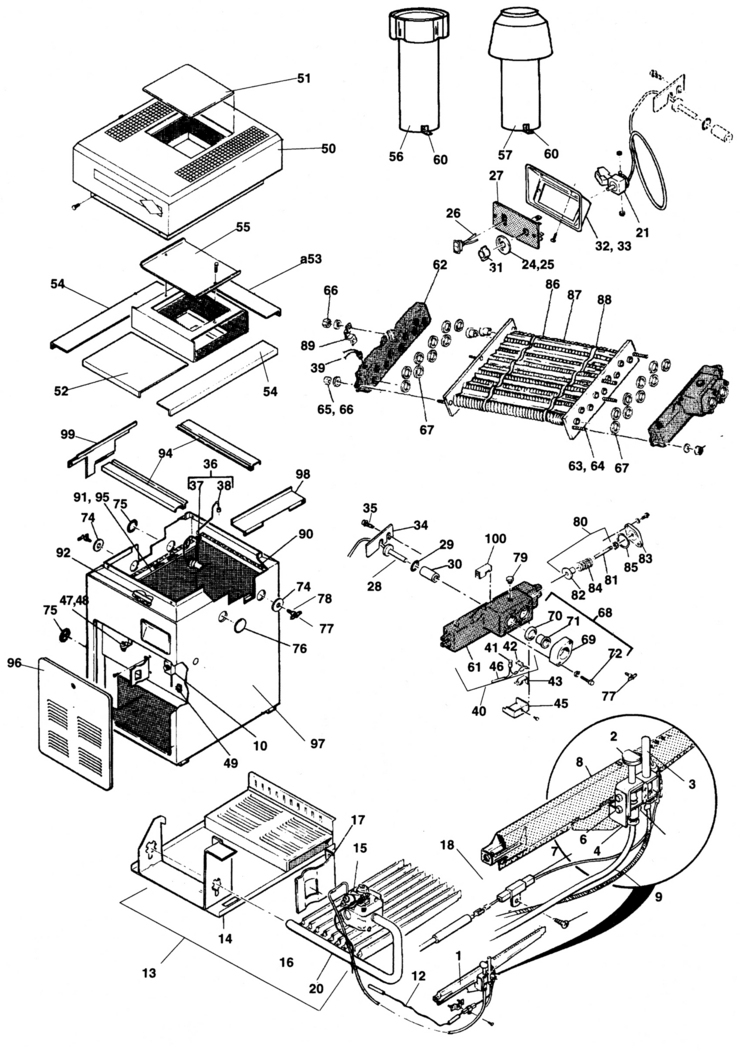

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Jandy

Model Name: Series 2 ESG (Mfg.1993-1996)



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	R0040400	Pressure Relief Valve 3/4"" NPT, 75 PSI	Yes	1 Day(s)	$30.08
	10521701	Non Combustible Base	Yes	1 Day(s)	$49.53
	10521702	Non Combustible Base	Yes	1 Day(s)	$54.00
	10521703	Non Combustible Base	Yes	1 Day(s)	$60.34
	10521704	Non Combustible Base	Yes	1 Day(s)	$66.67
	10521705	Non Combustible Base	Yes	1 Day(s)	$73.74
1	R0099100	Pilot, Main Burner Assembly, NAT	Yes	1 Day(s)	$139.58
1	R0099200	Pilot, Main Burner Assembly, LPG	Yes	1 Day(s)	$139.58
2	R0096700	Pilot Burner, NAT	Yes	1 Day(s)	$106.43
2	R0096600	Pilot Burner, LPG	Yes	1 Day(s)	$106.43
3	W0036901	Pilot Generator	Yes	1 Day(s)	$59.30
4	10576400	Pilot Bracket Adapter	Yes	1 Day(s)	$1.13
5	R0323300	Pilot Shield	Yes	1 Day(s)	$18.32
6	F0031300	Pilot Bracket Screw	Yes	1 Day(s)	$0.88
7	R0099300	Ceramic Insulator Assembly	Yes	1 Day(s)	$16.57
8	10457500	Burner, Main w/ Pilot Brkt	Yes	1 Day(s)	$14.53
9	R0037000	Pilot Tubing	Yes	1 Day(s)	$13.09
10	R0355900	Piezo Lighter Assembly	Yes	1 Day(s)	$43.21
12	R0098900	High Voltage Lead Assembly	No	N/A	N/A	N/A
13	R0098705	Burner Tray Assembly, LPG (a)	Yes	1 Day(s)	$1430.62
13	R0098704	Burner Tray Assembly, LPG (a)	Yes	1 Day(s)	$1395.72
13	R0098703	Burner Tray Assembly, LPG (a)	Yes	1 Day(s)	$1308.50
13	R0098601	Burner Tray Assembly, NAT (a)	Yes	1 Day(s)	$1221.25
13	R0098602	Burner Tray Assembly, NAT (a)	Yes	1 Day(s)	$1256.14
13	R0098603	Burner Tray Assembly, NAT (a)	Yes	1 Day(s)	$1308.50
13	R0098604	Burner Tray Assembly, NAT (a)	Yes	1 Day(s)	$1395.72
13	R0098701	Burner Tray Assembly, LPG (a)	Yes	1 Day(s)	$1221.25
13	R0098605	Burner Tray Assembly, NAT (a)	Yes	1 Day(s)	$1430.62
13	R0098702	Burner Tray Assembly, LPG (a)	Yes	1 Day(s)	$1256.14
14	R0317004	Burner Tray, Shelf Only	Yes	1 Day(s)	$160.50
14	R0317003	Burner Tray, Shelf Only	Yes	1 Day(s)	$157.00
14	R0317002	Burner Tray, Shelf Only	Yes	1 Day(s)	$151.79
14	R0317001	Burner Tray, Shelf Only	Yes	1 Day(s)	$148.31
14	R0317005	Burner Tray, Shelf Only	Yes	1 Day(s)	$165.75
15	R0096900	Gas Valve, LPG	Yes	1 Day(s)	$469.32
15	R0096400	Gas Valve, NAT	Yes	1 Day(s)	$469.32
16	L0032900	Gas Orifice, LPG (a)	Yes	1 Day(s)	$2.19
16	L0032200	Gas Orifice, NAT (a)	Yes	1 Day(s)	$2.19
17	10577200	Anti- Rotation Bracket	Yes	1 Day(s)	$4.84
18	10419200	Mounting Bracket Assembly	Yes	1 Day(s)	$4.47
19	L0052300	Burner, Main	Yes	1 Day(s)	$16.57
21	R0058200	Temperature Control Assembly	Yes	1 Day(s)	$146.54
22	R0058000	Wire Harness (Not Shown)	Yes	1 Day(s)	$32.71
23	10456300	Plate Assembly	Yes	1 Day(s)	$22.72
24	10456700	""Temp-Lok"" Stop Plate	Yes	1 Day(s)	$1.50
25	F0033300	Stop Plate Screw	Yes	1 Day(s)	$0.88
26	R0094100	On-Off Switch	Yes	1 Day(s)	$31.84
27	H0105300	Temperature Control Label	No	N/A	N/A	N/A
28	R0011800	Temperature Sensor	Yes	1 Day(s)	$80.24
29	E0116400	""O"" Ring, Temp Control Bulb	Yes	1 Day(s)	$1.32
30	10444900	Protector Sleeve, Bulb	Yes	1 Day(s)	$1.87
31	R0010700	Thermostat Knob, Black	Yes	1 Day(s)	$4.35
32	S0070000	Temperature Control Gasket	No	N/A	N/A	N/A
33	S0069800	Bezel	Yes	1 Day(s)	$27.47
34	10447300	Retainer Bracket	Yes	1 Day(s)	$1.87
35	F0009100	Retainer Bracket Screw	Yes	1 Day(s)	$1.32
37	R0015500	Pressure Switch, 1-10 PSI	Yes	1 Day(s)	$76.31
37	R0013200	Pressure Switch, 2 PSI	Yes	1 Day(s)	$70.66
38	R0057800	Siphon Loop Assembly	Yes	1 Day(s)	$57.61
39	R0012800	High-Limit Switch	No	N/A	N/A	N/A
40	R0023200	High-Limit Switch Assembly	Yes	1 Day(s)	$66.32
41	R0022700	High-Limit Switch, 135°F	Yes	1 Day(s)	$32.27
42	R0023000	High-Limit Switch, 150° F	Yes	1 Day(s)	$32.27
43	10728500	High-Limit Switch Retainer Clip	Yes	1 Day(s)	$2.60
44	S0098900	High-Limit Switch Retainer Boot (Not Shown)	Yes	1 Day(s)	$3.92
45	10418300	High-Limit Switch Cover	Yes	1 Day(s)	$3.34
46	10419300	High-Limit Switch Wire Harness	Yes	1 Day(s)	$51.78
47	R0012200	Fusible Link Assembly	Yes	1 Day(s)	$7.86
48	10479900	Fusible Link Bracket	Yes	1 Day(s)	$2.23
49	R0097800	Terminal Block	Yes	1 Day(s)	$10.91
50	R0313202	Top Enclosure	Yes	1 Day(s)	$366.47
50	R0313205	Top Enclosure	Yes	1 Day(s)	$402.22
50	R0313204	Top Enclosure	Yes	1 Day(s)	$388.82
50	R0313201	Top Enclosure	Yes	1 Day(s)	$357.53
50	R0313203	Top Enclosure	Yes	1 Day(s)	$378.38
51	10535205	Top Filler	Yes	1 Day(s)	$48.06
51	10535204	Top Filler	Yes	1 Day(s)	$35.76
51	10535203	Top Filler	Yes	1 Day(s)	$32.79
51	10535202	Top Filler	Yes	1 Day(s)	$29.05
51	10535201	Top Filler	Yes	1 Day(s)	$26.80
52	R0098005	Rainshield, Front	Yes	1 Day(s)	$41.71
52	R0326105	Rainshield Kit	Yes	1 Day(s)	$58.85
52	R0326104	Rainshield Kit	Yes	1 Day(s)	$55.87
52	R0326103	Rainshield Kit	Yes	1 Day(s)	$49.90
52	R0098001	Rainshield, Front	Yes	1 Day(s)	$33.89
52	R0098002	Rainshield, Front	Yes	1 Day(s)	$35.76
52	R0098003	Rainshield, Front	Yes	1 Day(s)	$37.60
52	R0098004	Rainshield, Front	Yes	1 Day(s)	$39.86
52	R0326101	Rainshield Kit	Yes	1 Day(s)	$45.81
52	R0326102	Rainshield Kit	Yes	1 Day(s)	$47.30
53	R0098101	Rainshield, Rear	Yes	1 Day(s)	$11.54
53	R0098104	Rainshield, Rear	Yes	1 Day(s)	$11.92
53	R0098103	Rainshield, Rear	Yes	1 Day(s)	$11.92
53	R0098102	Rainshield, Rear	Yes	1 Day(s)	$11.54
53	R0098105	Rainshield, Rear	Yes	1 Day(s)	$12.29
54	R0098202	Rainshield, Side	Yes	1 Day(s)	$22.72
54	R0098205	Rainshield, Side	Yes	1 Day(s)	$28.67
54	R0098204	Rainshield, Side	Yes	1 Day(s)	$26.80
54	R0098201	Rainshield, Side	Yes	1 Day(s)	$20.87
54	R0098203	Rainshield, Side	Yes	1 Day(s)	$24.96
