SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Jandy
Model Name: Slide Valve

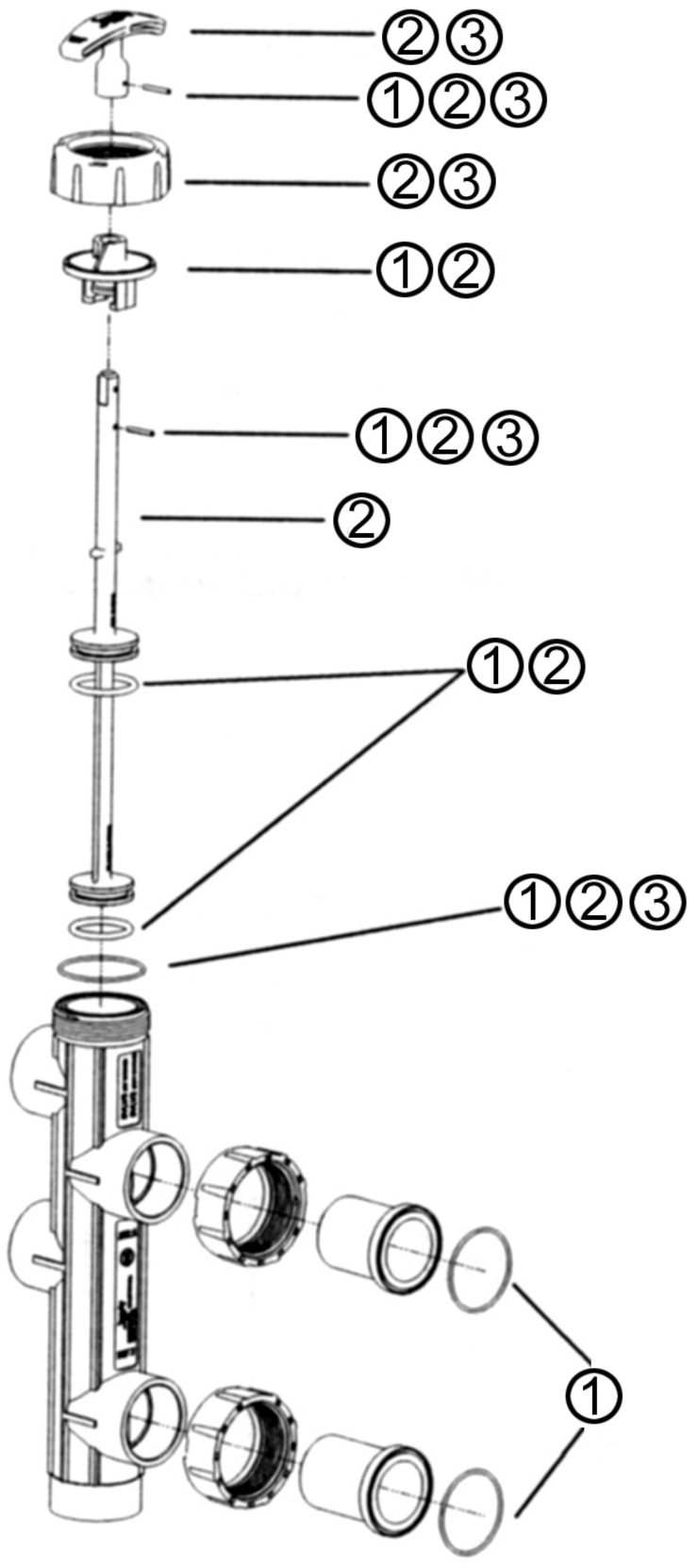

Jandy Slide-Valve replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 R0442100 Rebuild Kit Contains: Lid O-ring, Black O-ring for Top Shaft, Purple O-ring for Bottom Shaft, O-ring For Union Tail Piece (Qty 2 Yes 1 Day(s) $15.50

2

 R0442200 Shaft Replacement Kit Contains: Shaft, Handle, 1"" Roll Pin for Handle, 13/16"" Roll Pin for Shaft, Index Pl Yes 1 Day(s) $27.43

3

 R0442300 Handle Replacement Kit Contains: Handle; Roll Pin, Handle (1""); Roll Pin, Shaft (13/16""); Lid Union Nut; L Yes 1 Day(s) $15.48
