SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

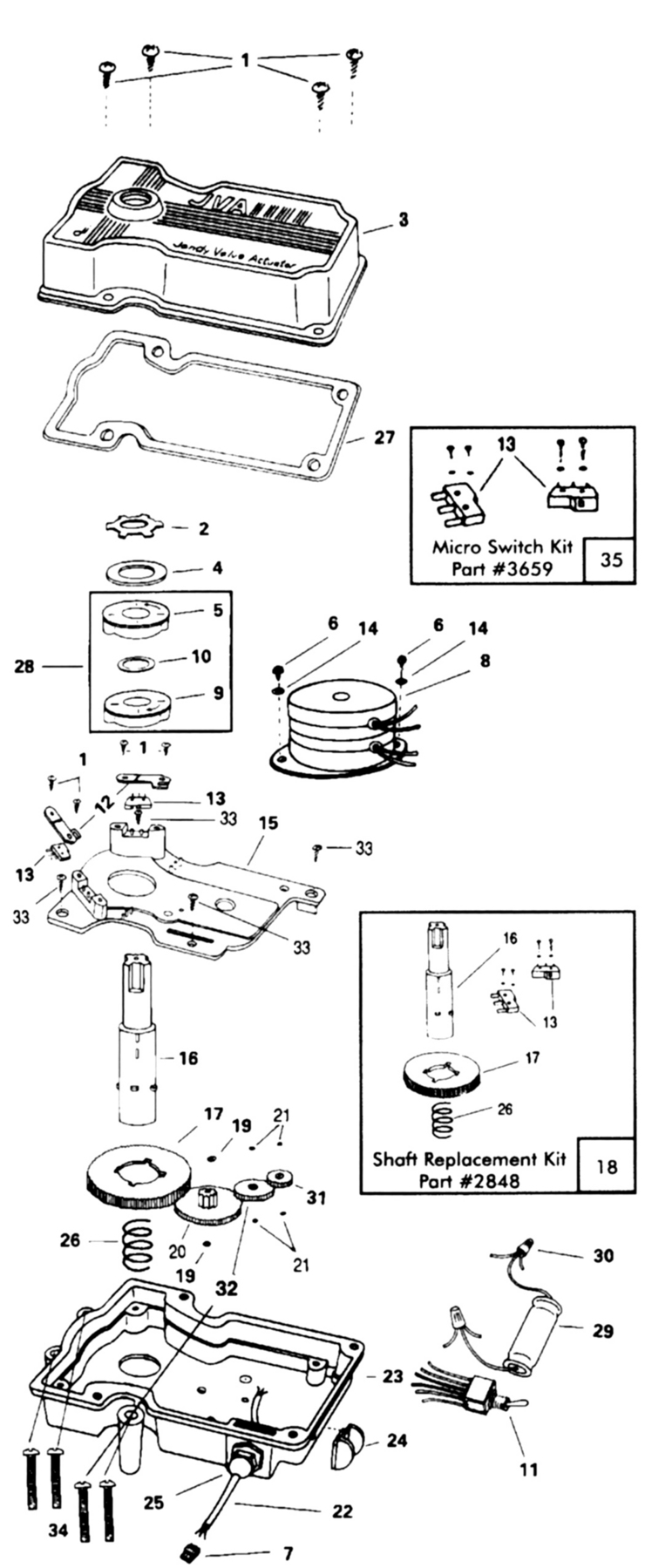

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Jandy
Model Name: Valve Actuator

Jandy Valve-Actuator replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

3

 3933 Housing Top Yes 1 Day(s) $19.73

4

 R0556201 Cam washer Yes 1 Day(s) $697.86

5

 R0556202 Top Cam (Use Kit #3553) (a) Yes 1 Day(s) $750.20

6

 6918 Screw 8.32 X 1/4"" Phil PN 18.8 Yes 1 Day(s) $19.73

7

 2711 Connector, 3 Pin Yes 1 Day(s) $2.95

8a

 4059 Motor, 12 VAC Yes 1 Day(s) $218.99

8

 2598 Motor, 24 VAC No N/A N/A N/A

9

 3946 Bottom Cam (Use Kit #3553) (a) No N/A N/A N/A

10

 1307 O-ring, 2-116 Yes 1 Day(s) $1.87

11

 4433 Toggle Switch, Complete Yes 1 Day(s) $27.55

12

 4146 Micro Switch Cover (Left) No N/A N/A N/A

12a

 4145 Micro Switch Cover (Right) No N/A N/A N/A

13

 1845 Micro Switch (Use Kit #3659) (a) No N/A N/A N/A

15

 3934 Center Plate w/Pins Yes 1 Day(s) $19.39

16

 3372 Output Shaft Threaded (Use Kit #2848) (a) No N/A N/A N/A

17

 2631 Output Gear (Use #2848) (a) No N/A N/A N/A

18

 2848 Shaft Replacement Kit Yes 1 Day(s) N/A N/A

19

 2652A Washer, .312 X . 195 Yes 1 Day(s) $1.75

20

 2633 Large Pinion Gear Yes 1 Day(s) $7.81

21

 2651A Washer, .312 X . 135 Yes 1 Day(s) $1.75

22

 4700 Power Cord Kit (20 FT.) Yes 1 Day(s) $35.38

23

 3935 Housing Bottom Plastic w/ Seal & Bushing Yes 1 Day(s) $27.55

24

 2694 Switch Guard No N/A N/A N/A

25

 2600 Strain Relief Yes 1 Day(s) $7.81

26

 1848 Spring (Use #2848) (a) No N/A N/A N/A

27

 2644 Gasket Yes 1 Day(s) $7.81

28

 3553 Cam Kit Yes 1 Day(s) $17.14

29

 2577 Capacitor, 24 V Yes 1 Day(s) $11.92

29a

 4016 Capacitor, 12 V No N/A N/A N/A

30

 3999 Wire Nut w/ Spring No N/A N/A N/A

31

 4387 Secondary Motor Gear No N/A N/A N/A

32

 4388 Primary Gear Yes 1 Day(s) $4.11

33

 4032 Screw, #8 X 5/8"" Mounting Plate Yes 1 Day(s) $2.22

34

 4725 Screw, #14 X 2"" Yes 1 Day(s) $2.22

35

 3659 Micro Switch Kit Yes 1 Day(s) $19.73
