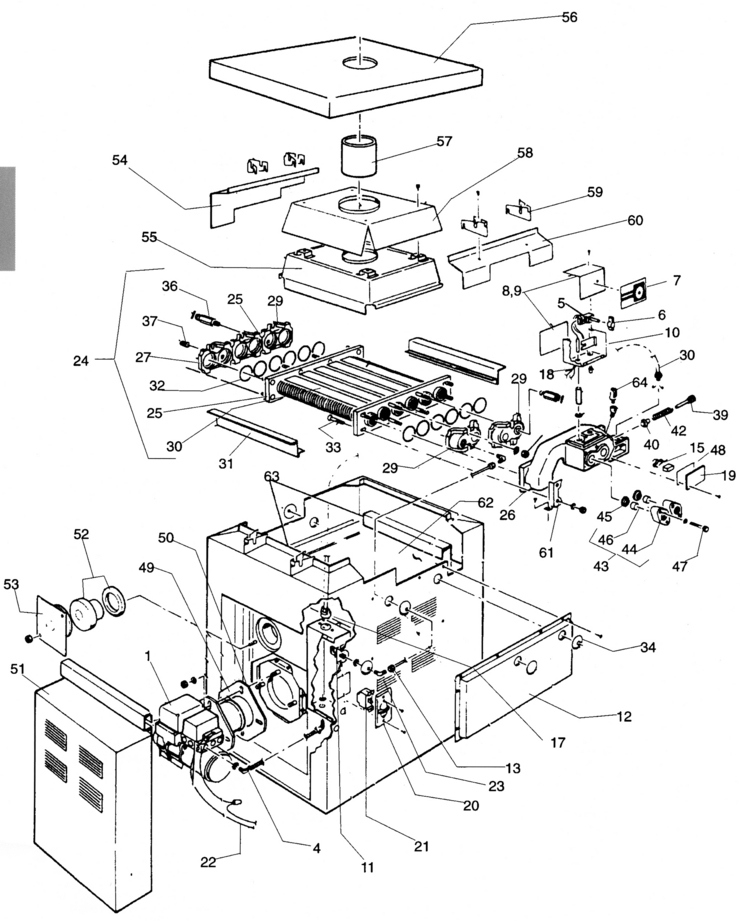

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Jandy

Model Name: XL-2 DP Oil Fired



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	R0140300	Primary Control	Yes	1 Day(s)	$380.33
-	P0026800	1 /4"" Burner Head Plug	Yes	1 Day(s)	$3.92
-	P0026100	I/ 8"" Burner Head Plug	Yes	1 Day(s)	$0.44
-	N0007100	By-Pass Plug	Yes	1 Day(s)	$2.23
-	N0007000	By-Pass Plug	No	N/A	N/A	N/A
-	N0006100	Honeywell Cad Cell	No	N/A	N/A	N/A
-	N0002600	Contact Spring Terminals	No	N/A	N/A	N/A
-	R0362200	Delavan Nozzle, 2.50	No	N/A	N/A	N/A
-	N0004500	Burner Head & Screws	Yes	1 Day(s)	$51.47
-	N0004000	Electrode Rod & Tip	No	N/A	N/A	N/A
-	N0003500	Electrode Clamp	Yes	1 Day(s)	$6.34
-	N0002800	Nozzle, Monarch 1.75	No	N/A	N/A	N/A
-	R0140200	Ignition Transformer	Yes	1 Day(s)	$219.81
-	R0393800	Chimney Cap - 9"" (Not Shown)	No	N/A	$132.01
-	F0004300	Air Tube Screw	Yes	1 Day(s)	$1.75
-	F0031300	Pilot Bracket Screw	Yes	1 Day(s)	$0.88
-	N0000200	End Air Shutter	Yes	1 Day(s)	$13.96
-	N0001000	Motor, 1/7H.P. ,3450RPM	No	N/A	N/A	N/A
-	N0001400	Blower Wheel 4- 1/4""x 3- 7/16""	No	N/A	N/A	N/A
-	N0001500	Flexible Coupling	No	N/A	N/A	N/A
-	R0140100	Fuel Unit, Two Stage	Yes	1 Day(s)	$540.82
-	N0002000	Pump Outlet Fitting	Yes	1 Day(s)	$6.96
-	N0002200	Connector Tube Assembly	Yes	1 Day(s)	$15.71
-	N0003100	Nozzle Line Electrode Assembly	No	N/A	N/A	N/A
1	L0038700	Oil Burner Assembly	Yes	1 Day(s)	$1901.67
1	L0038900	Oil Burner Assembly	Yes	1 Day(s)	$1901.67
2	P0065100	Oil Filter (Not Shown)	No	N/A	N/A	N/A
3	P0065500	Oil Filter Cartridge (Not Shown)	No	N/A	N/A	N/A
4	10430402	3/8"" Oil Line, Pump to Filter	No	N/A	N/A	N/A
5	R0318800	Thermostat	Yes	1 Day(s)	$146.54
6	R0010700	Thermostat Knob	Yes	1 Day(s)	$4.35
7	R0057900	Thermostat Dial	Yes	1 Day(s)	$78.97
8	R0057900	Thermostat Cover	Yes	1 Day(s)	$78.97
9	R0057900	Thermostat Back	Yes	1 Day(s)	$78.97
10	R0057900	Thermostat Base Plate	Yes	1 Day(s)	$78.97
11	R0045400	Pressure Switch, 1-10 PSI	Yes	1 Day(s)	$244.26
12	10403400	Siphon Loop Cover	No	N/A	N/A	N/A
13	R0057800	Siphon Loop Assembly	Yes	1 Day(s)	$57.61
14	R0023200	High-Limit Switch Assembly	Yes	1 Day(s)	$66.32
15	R0022700	High-Limit Switch, 135°F	Yes	1 Day(s)	$32.27
16	R0012700	High-Limit Switch, 150°F	Yes	1 Day(s)	$52.37
17	R0057500	High-Limit Switch Harness (115V)	Yes	1 Day(s)	$108.16
18	R0057700	High- Limit Switch Harness	Yes	1 Day(s)	$47.11
19	10401100	High- Limit Switch Cover	No	N/A	N/A	N/A
20	E0078300	Switch Cover	Yes	1 Day(s)	$30.08
21	E0156000	ON /OFF Switch	Yes	1 Day(s)	$23.99
22	R0057600	Oil Burner Harness	Yes	1 Day(s)	$120.40
23	P0059800	Connector Elbow 90°	Yes	1 Day(s)	$10.05
24	10403604	Heat Exchanger Assembly, Complete	Yes	1 Day(s)	$2590.51
24	10927101	Heat Exchanger Assembly, Complete	No	N/A	N/A	N/A
25	10403502	Heat Exchanger	Yes	1 Day(s)	$1471.46
25	10927101	Heat Exchanger	No	N/A	N/A	N/A
26	R0391000	Inlet/ Outlet Header	Yes	1 Day(s)	$789.56
27	R0391100	End Cap (1/2"" tap)	No	N/A	$196.00
28	R0391200	End Cap (No tap)	Yes	1 Day(s)	$61.50
29	R0391300	End Cap (1/4"" tap)	No	N/A	$190.77
30	10387804	Tee Baffle (5 req.)	Yes	1 Day(s)	$5.95
30	10387805	Tee Baffle (5 req.)	Yes	1 Day(s)	$6.34
31	10387702	End Baffle (2 req.)	No	N/A	N/A	N/A
32	10387703	End Baffle (2 req.)	No	N/A	N/A	N/A
32	R0391600	Tube Gaskets (12 req.)	Yes	1 Day(s)	$6.12
34	S0098800	Grommet (2 req.)	Yes	1 Day(s)	$3.05
35	P0027000	Brass Plug, 3/4""	Yes	1 Day(s)	$9.59
36	P0059900	Drain Valve Extension	No	N/A	N/A	N/A
37	P0026800	Drain Plug, 1/4"" (3 req.)	Yes	1 Day(s)	$3.92
38	R0020600	By-Pass Assembly	Yes	1 Day(s)	$39.69
39	R0391800	By- Pass Valve Rod	Yes	1 Day(s)	$23.56
40	S0074200	By- Pass Valve Disc	No	N/A	N/A	N/A
41	S0008700	By- Pass Valve Rod Retainer	Yes	1 Day(s)	$7.42
42	S0061100	By-Pass Valve Spring	Yes	1 Day(s)	$15.64
42	S0061000	By-Pass Valve Spring	Yes	1 Day(s)	$10.05
43	R0031900	Flange & Gasket Assembly	Yes	1 Day(s)	$120.40
44	10309200	Flange, 1 1/2""	No	N/A	N/A	N/A
45	S0053100	Flange Gasket, 1 1/2""	No	N/A	N/A	N/A
46	S0028000	Flange Sleeve, 1 1/2""	No	N/A	N/A	N/A
47	F0031700	Flange Bolt	No	N/A	N/A	N/A
48	S0065300	Gasket	Yes	1 Day(s)	$22.24
49	N0006600	Burner Tube Gasket	No	N/A	N/A	N/A
50	10392000	Burner Support Bracket	No	N/A	N/A	N/A
51	10412203	Burner Compartment Door	Yes	1 Day(s)	$165.37
51	10412204	Burner Compartment Door	No	N/A	N/A	N/A
52	T0020700	Fire Box Plug	Yes	1 Day(s)	$40.99
53	10425800	Fire Box Cover Plate	Yes	1 Day(s)	$11.92
54	10401000	Gap Spacer (Return)	No	N/A	N/A	N/A
55	10406302	Flue Collector Assemby	No	N/A	N/A	N/A
55	10406301	Flue Collector Assemby	No	N/A	N/A	N/A
56	10405002	Flue Top Assembly	No	N/A	N/A	N/A
56	10405001	Flue Top Assembly	No	N/A	N/A	N/A
57	R0392900	Inner Stack	Yes	1 Day(s)	$47.54
58	10404502	Flue Collector Shield	No	N/A	N/A	N/A
58	R0393001	Flue Collector Shield	Yes	1 Day(s)	$39.11
59	10319300	Vent Blade (10 req.)	No	N/A	N/A	N/A
60	R0393200	Gap Spacer (In /Out)	No	N/A	N/A	N/A
61	10401200	Hold Down Clip	Yes	1 Day(s)	$9.69
62	R0393402	Fire Box	No	N/A	$767.64
62	R0393401	Fire Box	No	N/A	N/A	N/A
63	R0393502	Fire Box Cover (2 req.)	Yes	1 Day(s)	$15.29
63	10400801	Fire Box Cover (2 req.)	No	N/A	N/A	N/A
64	R0040400	Pressure Relief Valve, 3/4"" NPT, 75 PSI	Yes	1 Day(s)	$30.08
