SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

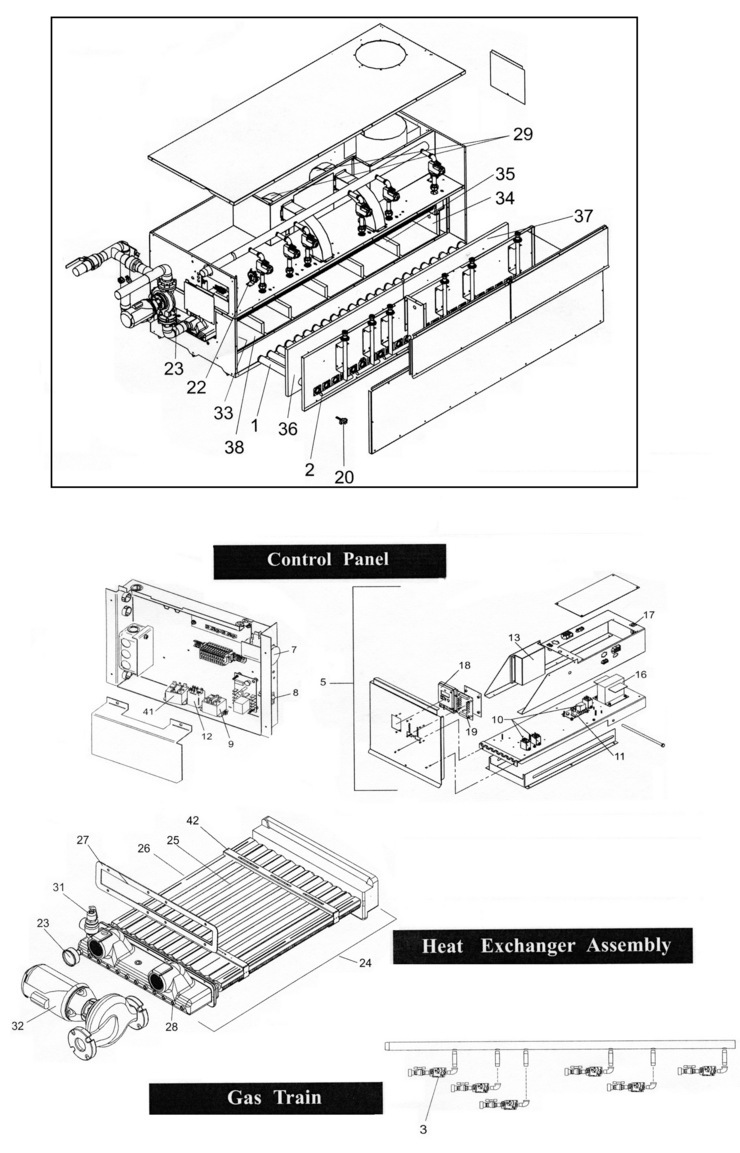

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Lochinvar

Model Name: Copper-Fin2



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	FIB2256	Insulation Pad, Right Side	No	N/A	N/A	N/A
-	PIP3011	Kit, Piping Loop 2 1/2 Vertical Conn	No	N/A	N/A	N/A
-	PRS2004	Pressure Switch, Low Gas	No	N/A	N/A	N/A
-	PRS2406	Pressure Switch, Water	No	N/A	N/A	N/A
-	RLY2058	Relay Pump/Maint.	No	N/A	N/A	N/A
-	RLY2706	Relay, 120VAC	No	N/A	N/A	N/A
-	FIB2472	Back Panel	No	N/A	N/A	N/A
-	FIB2260	Insulation Pad, Back	No	N/A	N/A	N/A
-	FIB2456	Back Panel	No	N/A	N/A	N/A
-	FIB2457	Back Left Panel	No	N/A	N/A	N/A
-	FIB2458	Back Left Panel	No	N/A	N/A	N/A
-	FIB2459	Back Left Panel	No	N/A	N/A	N/A
-	FIB2455	Back Right Panel	No	N/A	N/A	N/A
-	FIB2258	Insulation Pad, Back	No	N/A	N/A	N/A
-	GKT2408	Gasket Strip	No	N/A	N/A	N/A
-	FIB2257	Insulation Pad, Top	No	N/A	N/A	N/A
-	FIB2259	Insulation Pad, Top	No	N/A	N/A	N/A
-	PIP3010	Kit, Piping Loop 2 1/2 Horizontal Conn	No	N/A	N/A	N/A
-	GKT2023	Transition Gasket/Fan, Duct	No	N/A	N/A	N/A
-	MSC7119	Bulbwell Clip	No	N/A	N/A	N/A
-	WTR2047	Flow Switch	No	N/A	N/A	N/A
-	MSC3415	Sight Glass Kit	No	N/A	N/A	N/A
-	PRS2701	Pressure Aluminum Tap	No	N/A	N/A	N/A
-	TUB2002	Tubing-Air Pressure	No	N/A	N/A	N/A
-	MSC2155	Tee, Air Pressure Tube	No	N/A	N/A	N/A
-	MSC2156	Tee Fitting, Cap Air Pressure Tube	No	N/A	N/A	N/A
-	MSC2461	Tubing Silicone/Clear	No	N/A	N/A	N/A
-	MSC2406	Tubing-EPDM 1/8 I.D.	No	N/A	N/A	N/A
1	BNR3422	Main Burner (21 required)	No	N/A	N/A	N/A
1	BNR3422	Main Burner (21 required)	No	N/A	N/A	N/A
1	BNR3422	Main Burner (21 required)	No	N/A	N/A	N/A
1	BNR3422	Main Burner (21 required)	No	N/A	N/A	N/A
1	BNR3423	Main Burner w/ Pressure Tap (2 required)	No	N/A	N/A	N/A
1	BNR3422	Main Burner (21 required)	No	N/A	N/A	N/A
2	ORF2421	Orifice, Nat	No	N/A	N/A	N/A
2	ORF2418	Orifice, LP	No	N/A	N/A	N/A
3	VAL2413	Gas Valve, LP	No	N/A	N/A	N/A
3	VAL2076	Gas Valve, Nat	No	N/A	N/A	N/A
5	PAN3012	Control Panel	No	N/A	N/A	N/A
5	PAN3018	Control Panel w/PD & Maint. Timer (OPTIONAL)	No	N/A	N/A	N/A
7	HLC2702	Manual Reset High Limit	No	N/A	N/A	N/A
8	SWT2006	On/Off Switch	No	N/A	N/A	N/A
9	RLY2708	24V Relay/Pump Delay	No	N/A	N/A	N/A
10	RLY2903	24V Relay/Other Options	No	N/A	N/A	N/A
11	RLY2714	Time Delay Relay	No	N/A	N/A	N/A
12	RLY2051	Relay/Louver	No	N/A	N/A	N/A
13	RLY2402	Ignition Module	No	N/A	N/A	N/A
16	TRF2701	Transformer 150VA	No	N/A	N/A	N/A
17	MSC2447	Circuit Breaker 7AMP	No	N/A	N/A	N/A
18	RLY2038	Electronic Control	No	N/A	N/A	N/A
19	RLY2044	Indicator Panel	No	N/A	N/A	N/A
20	PLT3400	Hot Surface Igniter	No	N/A	N/A	N/A
22	PRS2422	Pressure Switch, Nat	No	N/A	N/A	N/A
22	PRS2010	Pressure Switch, L.P.	No	N/A	N/A	N/A
22	PRS2426	Pressure Switch, Nat	No	N/A	N/A	N/A
23	GTP3000	Gauge, Temperature	No	N/A	N/A	N/A
24	HEX3009	Heat Exchanger/C.N.	No	N/A	N/A	N/A
24	HEX3008	Heat Exchanger/C.N.	No	N/A	N/A	N/A
24	HEX3002	Heat Exchanger	No	N/A	N/A	N/A
24	HEX3001	Heat Exchanger	No	N/A	N/A	N/A
24	HEX3000	Heat Exchanger	No	N/A	N/A	N/A
25	JKE6078	V-Baffle	No	N/A	N/A	N/A
25	JKE6079	V-Baffle	No	N/A	N/A	N/A
25	JKE6080	V-Baffle	No	N/A	N/A	N/A
25	JKE6082	V-Baffle	No	N/A	N/A	N/A
25	JKE6081	V-Baffle	No	N/A	N/A	N/A
26	JKE6163	Frame Runner	No	N/A	N/A	N/A
26	JKE6160	Frame Runner	No	N/A	N/A	N/A
26	JKE6161	Frame Runner	No	N/A	N/A	N/A
26	JKE6162	Frame Runner	No	N/A	N/A	N/A
26	JKE6159	Frame Runner	No	N/A	N/A	N/A
27	GKT2418	Heat Shield Gasket	No	N/A	N/A	N/A
28	TST2300	Bulbwell	No	N/A	N/A	N/A
29	FAN2010	Fan Assembly	No	N/A	N/A	N/A
29	FAN2009	Fan Assembly	No	N/A	N/A	N/A
30	JKE6411	Air Shutter	No	N/A	N/A	N/A
31	RLV2017	Relief Valve, Pressure Only	No	N/A	N/A	N/A
32	ARM3024PABTE	Pump	No	N/A	N/A	N/A
32	ARM3072PABTE	Pump	No	N/A	N/A	N/A
33	FIB2204	Front, Head, Side, Panel	No	N/A	N/A	N/A
34	FIB2205	Rear, Head Side Panel	No	N/A	N/A	N/A
35	FIB2228	Divider Panel	No	N/A	N/A	N/A
36	FIB2220	Insulation Pad, Front Left	No	N/A	N/A	N/A
36	FIB2224	Insulation Pad, Front Left	No	N/A	N/A	N/A
36	FIB2215	Insulation Pad, Front Left	No	N/A	N/A	N/A
36	FIB2232	Insulation Pad, Front	No	N/A	N/A	N/A
36	FIB2231	Insulation Pad, Front	No	N/A	N/A	N/A
37	FIB2255	Insulation Pad, Front Right	No	N/A	N/A	N/A
37	FIB2234	Insulation Pad, Front Right	No	N/A	N/A	N/A
37	FIB2221	Insulation Pad, Front Right	No	N/A	N/A	N/A
38	FIB2222	Bottom Panel Position 1 (a)	No	N/A	N/A	N/A
38	FIB2219	Bottom Panel Position 4 (a)	No	N/A	N/A	N/A
38	FIB2207	Bottom Panel Position 3, 4, & 5 (a)	No	N/A	N/A	N/A
38	FIB2207	Bottom Panel Position 3, 4, & 5 (a)	No	N/A	N/A	N/A
38	FIB2223	Bottom Panel Position 5 (a)	No	N/A	N/A	N/A
38	FIB2227	Bottom Panel Position 6 (a)	No	N/A	N/A	N/A
38	FIB2226	Bottom Panel Position 1 (a)	No	N/A	N/A	N/A
38	FIB2212	Bottom Panel Position 2 (a)	No	N/A	N/A	N/A
38	FIB2207	Bottom Panel Position 3, 4, & 5 (a)	No	N/A	N/A	N/A
38	FIB2218	Bottom Panel Position 1 (a)	No	N/A	N/A	N/A
