SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

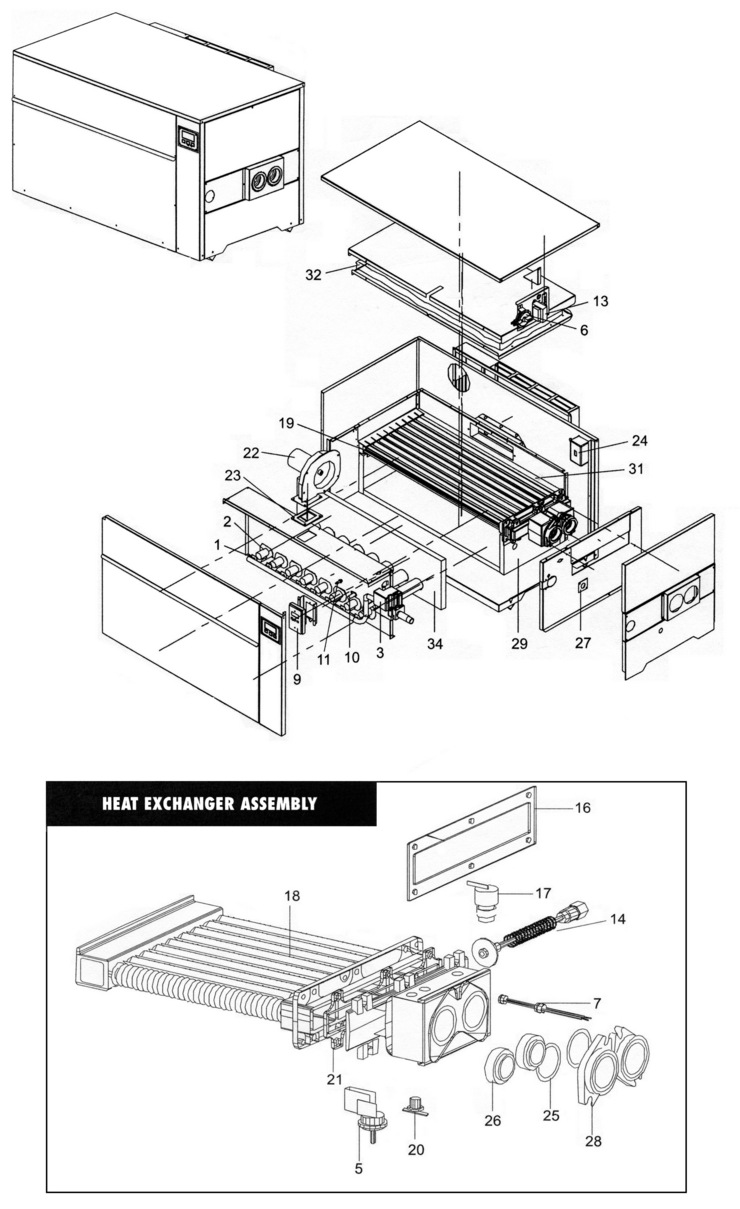

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Lochinvar

Model Name: EnergyRite2



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	TST2301	Bulbwell	No	N/A	N/A	N/A
-	TST2313	Tekmar 071 Temperature Sensor	No	N/A	N/A	N/A
-	GKT2014	Gasket, Tape 1/8"" x 1/2"" Open Cell Neoprene	No	N/A	N/A	N/A
-	WRE2035	Main Wire Harness	No	N/A	N/A	N/A
-	GKT2715	Gasket, Tape 1/4"" x 5/8"" Silicone Sponge	No	N/A	N/A	N/A
-	GKT2427	Gasket, Excutcheon 3/4"" Pipe	No	N/A	N/A	N/A
-	MSC2457	Fitting Hose Barb	No	N/A	N/A	N/A
-	MSC2706	Tubing-EPDM 1/4""	No	N/A	N/A	N/A
-	GKT2408	Gasket Strip Manning Glass (45"" length)	No	N/A	N/A	N/A
-	PRS2701	Pressure Tap	No	N/A	N/A	N/A
-	WTR3504	Front Header	No	N/A	N/A	N/A
-	MSC2461	Silicone Tubing	No	N/A	N/A	N/A
1	ORF2406	Orifice Natural After S/N #E05H00004958	No	N/A	N/A	N/A
1	ORF2904	Orifice LPG	No	N/A	N/A	N/A
1	ORF2414	Orifice Natural Before S/N #E05H00004958	No	N/A	N/A	N/A
2	BNR3417	Burner (7 required)	No	N/A	N/A	N/A
2	BNR3417	Burner (7 required)	No	N/A	N/A	N/A
2	BNR3417	Burner (7 required)	No	N/A	N/A	N/A
2	BNR3417	Burner (7 required)	No	N/A	N/A	N/A
2	BNR3416	Burner w/ Pressure Tap (1 required)	No	N/A	N/A	N/A
2	BNR3417	Burner (7 required)	No	N/A	N/A	N/A
3	VAL2420	Ignition/Gas Valve	No	N/A	N/A	N/A
5	PRS2406	Switch, Water Pressure	No	N/A	N/A	N/A
6	PRS2428	Switch, Air Pressure	No	N/A	N/A	N/A
7	TST2402	Thermostat, High Limit 175 Degree	No	N/A	N/A	N/A
9	RLY2038	Temperature Control, Digital	No	N/A	N/A	N/A
10	PLT3000	Ignitor Assembly	No	N/A	N/A	N/A
11	PLT2604	Flame Rod	No	N/A	N/A	N/A
13	TRF2002	Transformer 50 VA	No	N/A	N/A	N/A
14	MSC3402	Bypass Assembly	No	N/A	N/A	N/A
14	MSC3401	Bypass Assembly	No	N/A	N/A	N/A
14	MSC3400	Bypass Assembly	No	N/A	N/A	N/A
15	HEX3439	Cupro Nickel Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3426	Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3419A	Cupro Nickel HEX ASME (with Header)	No	N/A	N/A	N/A
15	HEX3418A	Cupro Nickel HEX ASME (with Header)	No	N/A	N/A	N/A
15	HEX3417A	Cupro Nickel HEX ASME (with Header)	No	N/A	N/A	N/A
15	HEX3416A	Cupro Nickel HEX ASME (with Header)	No	N/A	N/A	N/A
15	HEX3405A	Heat Exchanger ASME (with Header)	No	N/A	N/A	N/A
15	HEX3438	Cupro Nickel Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3437	Cupro Nickel Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3436	Cupro Nickel Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3435	Cupro Nickel Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3429	Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3428	Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3427	Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3425	Heat Exchanger (No Header Parts)	No	N/A	N/A	N/A
15	HEX3406A	Heat Exchanger ASME (with Header)	No	N/A	N/A	N/A
15	HEX3407A	Heat Exchanger ASME (with Header)	No	N/A	N/A	N/A
15	HEX3415A	Cupro Nickel HEX ASME (with Header)	No	N/A	N/A	N/A
15	HEX3409A	Heat Exchanger ASME (with Header)	No	N/A	N/A	N/A
15	HEX3408A	Heat Exchanger ASME (with Header)	No	N/A	N/A	N/A
16	GKT-2400	Gasket, Heat Shield	No	N/A	N/A	N/A
17	RLV2005	Relief Valve, 30 psi	No	N/A	N/A	N/A
18	JKD2260	V-Baffle (8 per HEX)	No	N/A	N/A	N/A
18	JKD2261	V-Baffle (8 per HEX)	No	N/A	N/A	N/A
18	JKD2263	V-Baffle (8 per HEX)	No	N/A	N/A	N/A
18	JKD2264	V-Baffle (8 per HEX)	No	N/A	N/A	N/A
18	JKD2262	V-Baffle (8 per HEX)	No	N/A	N/A	N/A
19	JKD6277	Frame-End (2 per HEX)	No	N/A	N/A	N/A
19	JKD6256	Frame-End (2 per HEX)	No	N/A	N/A	N/A
19	JKD6257	Frame-End (2 per HEX)	No	N/A	N/A	N/A
19	JKD6259	Frame-End (2 per HEX)	No	N/A	N/A	N/A
19	JKD6258	Frame-End (2 per HEX)	No	N/A	N/A	N/A
20	DRV2400	Drain Cock	No	N/A	N/A	N/A
21	GKT2412	Gasket, Header	No	N/A	N/A	N/A
22	FAN2723	Combustion Fan	No	N/A	N/A	N/A
22	FAN2724	Combustion Fan	No	N/A	N/A	N/A
23	GKT2009	Fan Gasket	No	N/A	N/A	N/A
24	MSC2426	On/Off Switch	No	N/A	N/A	N/A
25	GKT2413	Gasket, Flange 2""	No	N/A	N/A	N/A
26	GKT2414	Gasket, Flange 1 1/2""	No	N/A	N/A	N/A
27	MSC3415	Sight Glass Assembly	No	N/A	N/A	N/A
28	WTR3502	Flange	No	N/A	N/A	N/A
29	FIB2237	Insulation, Front Head Side Panel	No	N/A	N/A	N/A
30	FIB2238	Insulation, Rear-Head Side Panel	No	N/A	N/A	N/A
31	FIB2250	Insulation, Back Panel	No	N/A	N/A	N/A
31	FIB2251	Insulation, Back Panel	No	N/A	N/A	N/A
31	FIB2252	Insulation, Back Panel	No	N/A	N/A	N/A
31	FIB2253	Insulation, Back Panel	No	N/A	N/A	N/A
31	FIB2249	Insulation, Back Panel	No	N/A	N/A	N/A
32	FIB2802	Insulation, Top	No	N/A	N/A	N/A
32	FIB2801	Insulation, Top	No	N/A	N/A	N/A
32	FIB2800	Insulation, Top	No	N/A	N/A	N/A
32	FIB2816	Insulation, Top	No	N/A	N/A	N/A
32	FIB2803	Insulation, Top	No	N/A	N/A	N/A
33	FIB2247	Insulation, Bottom Panel	No	N/A	N/A	N/A
33	FIB2244	Insulation, Bottom Panel	No	N/A	N/A	N/A
33	FIB2245	Insulation, Bottom Panel	No	N/A	N/A	N/A
33	FIB2246	Insulation, Bottom Panel	No	N/A	N/A	N/A
33	FIB2248	Insulation, Bottom Panel	No	N/A	N/A	N/A
34	FIB2242	Insulation, Front Panel	No	N/A	N/A	N/A
34	FIB2239	Insulation, Front Panel	No	N/A	N/A	N/A
34	FIB2240	Insulation, Front Panel	No	N/A	N/A	N/A
34	FIB2241	Insulation, Front Panel	No	N/A	N/A	N/A
34	FIB2243	Insulation, Front Panel	No	N/A	N/A	N/A
