SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

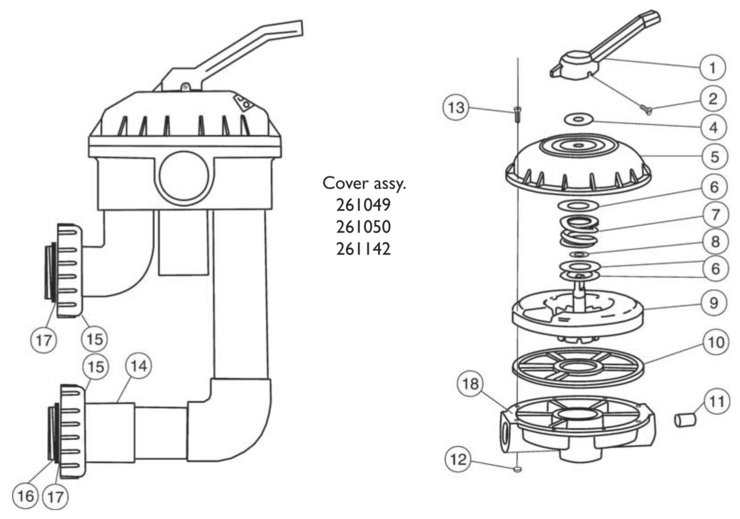

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Pentair
Model Name: 2 HiFlow Valves

Pentair 2-HiFlow-Valves replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 272520 Handle Yes 1 Day(s) $13.99

2

 272405 Screw - Handle Yes 1 Day(s) $0.93

4

 272402 Washer - Plastic Yes 1 Day(s) $1.60

5

 272412 Valve Top No N/A N/A N/A

6

 272401 Washer - 1/32 in. Yes 1 Day(s) $1.33

7

 272400 Spring - Compression Yes 1 Day(s) $5.26

8

 272406 O-ring Diverter No N/A N/A N/A

9

 272413 Diverter Yes 1 Day(s) $47.76

9

 272422 Valve top assy. (incl. Key No.'s 1-9) Yes 1 Day(s) $120.35

10

 272409 Seal - Diverter Yes 1 Day(s) $21.85

11

 154566 Sight Glass 2 in. clear Yes 1 Day(s) $8.55

12

 98211400 Nut 1/4 in.-20 Hex Yes 1 Day(s) $2.75

13

 272403 Screw 1/4 in. - 20 Yes 1 Day(s) $0.99

14

 274400 Coupling - 2 in. PVC Yes 1 Day(s) $4.29

15

 274407 Nut- Bulkhead adapter Yes 1 Day(s) $13.08

16

 274404 Adapter - Bulkhead Yes 1 Day(s) $19.30

17

 274494 O-ring - Bulkhead adapter Yes 1 Day(s) $4.84

18

 272433 Valve btm. 2 in. w/gasket (a) Yes 1 Day(s) $74.69
