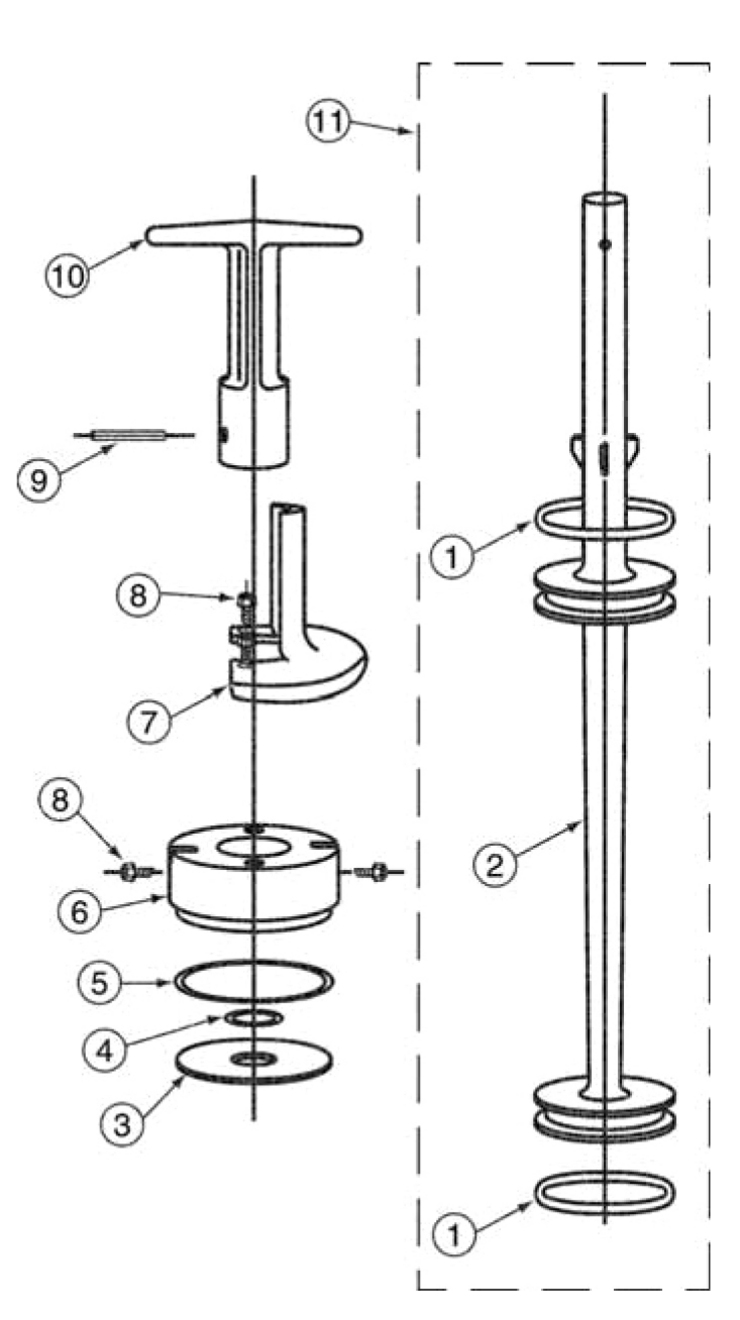

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: 2 PVC Slide Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	273090	O-ring - 172 in. i.d. x 3/16 in. dia.	Yes	1 Day(s)	$1.49
2	273106	Piston shaft	Yes	1 Day(s)	$58.33
3	273102	Washer - 5/8 in. i.d. x 2 5/32 in. o.d. x 1/8 in.	No	N/A	N/A	N/A
4	272406	O-ring - 9/16 in. i.d. x 3/32 in.	No	N/A	N/A	N/A
5	273062	O-ring - 2 1/8 in. i.d. x 1/8 in. dia.	Yes	1 Day(s)	$0.93
6	273077	Plug - 5/8 in. i.d. x 2 3/8 in. o.d.	Yes	1 Day(s)	$3.39
7	273064	Position bracket	Yes	1 Day(s)	$18.22
8	273071	Screw - #14 - 18-8 s/s	Yes	1 Day(s)	$0.99
9	273063	Pin - 1/8 in. dia. x 1 1/8 in. long s/s	Yes	1 Day(s)	$1.67
10	273089	Handle for plastic shaft - 5/8 in. i.d.	Yes	1 Day(s)	$9.68
11	273241	Piston rod assy.	Yes	1 Day(s)	$63.22
