SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

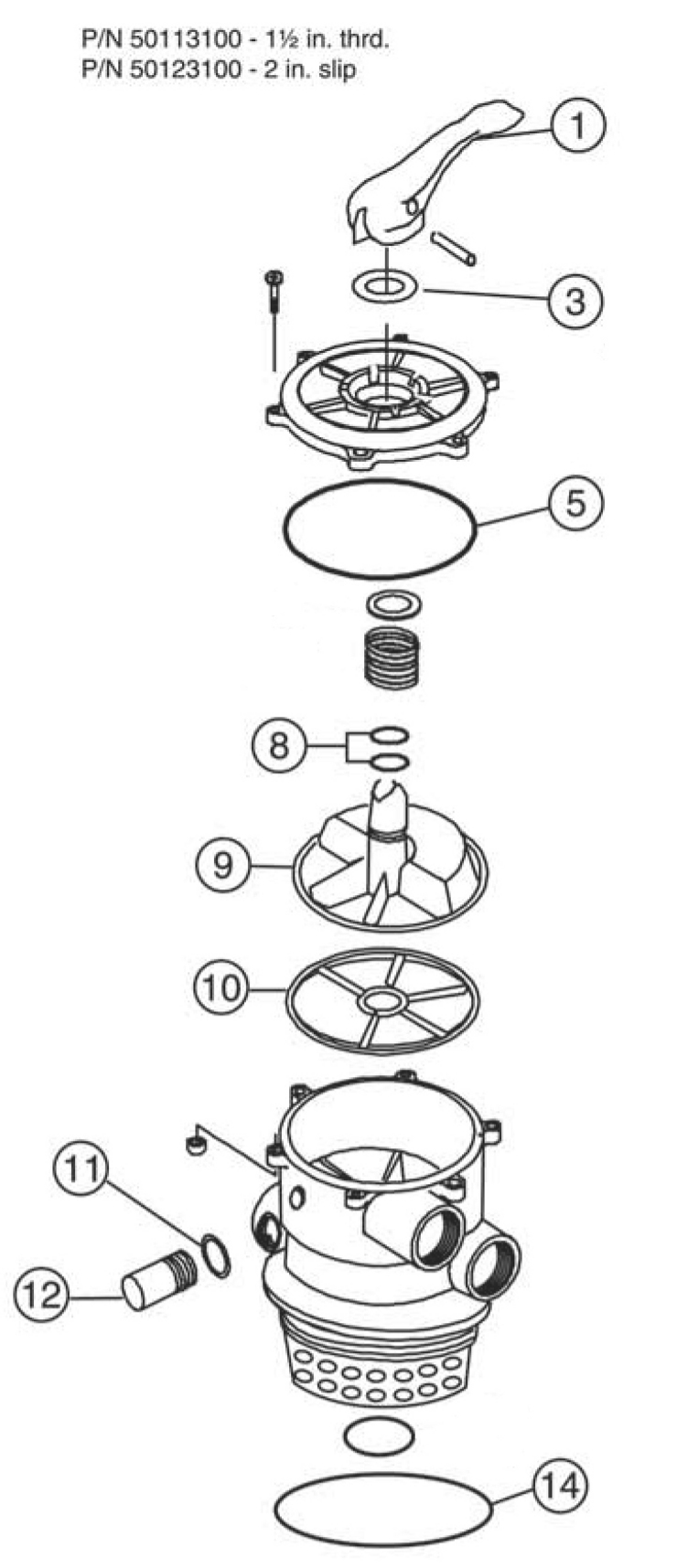

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Pentair
Model Name: 6 Position Top Mount Clamp-on Multiport Valves

Pentair 6-Position-Top-Mount-Clampon-Multiport-V replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 271156 Handle Yes 1 Day(s) $18.51

3

 51001400 Washer, poly Yes 1 Day(s) $5.37

4

 51001700 Lid, 1 1/2 in. valve w/ label No N/A N/A N/A

5

 51002200 O-ring lid, 172 in. valve w/ label Yes 1 Day(s) $9.01

6

 51002400 Washer, spring No N/A N/A N/A

8

 271162 O-ring No N/A N/A N/A

9

 51002800 Rotor 172 in. Yes 1 Day(s) $45.10

9

 51002900 Rotor 2 in. Yes 1 Day(s) $47.22

10

 271148 Gasket Yes 1 Day(s) $21.40

10

 271104 Gasket, spider, 1 1/2 in. valve Yes 1 Day(s) $14.85

11

 51005400 Gasket, sight glass No N/A N/A N/A

12

 51005500 Sight glass No N/A N/A N/A

13

 51005800 O-ring, standpipe, 1 1/2 in. valve No N/A N/A N/A

14

 51011900 O-ring, 22 in. filter (a) Yes 1 Day(s) $8.77

14

 51021700 Gasket, 22 in.filter (b) Yes 1 Day(s) $5.04
