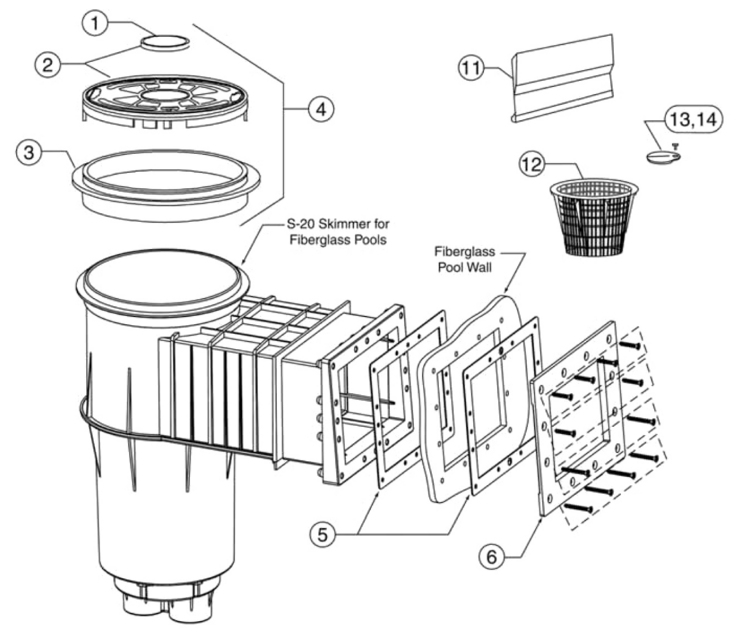

Here is the schematic view you requested:

Category: Skimmers

Manufacturer name: Pentair

Model Name: Admiral S-20 Wedge Skimmers



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	85014700	Handle, basket	Yes	1 Day(s)	$3.09
-	98208500	Washer, gum commercial lid	Yes	1 Day(s)	$1.13
-	98213000	Screw, 8-32 x 5/8 in. commercial lid	Yes	1 Day(s)	$1.08
-	85016600	Rubber stopper, flap weir	Yes	1 Day(s)	$3.07
-	98203000	Screw	Yes	1 Day(s)	$1.31
-	85017500	Pivot tab for flap weir	Yes	1 Day(s)	$0.70
1	510161	Disk, logo	Yes	1 Day(s)	$2.87
2	85007430	Lock down lid, tan	Yes	1 Day(s)	$14.94
2	85007413	Lock down lid, grey	Yes	1 Day(s)	$14.94
2	85007411	Lock down lid, black	Yes	1 Day(s)	$14.94
2	85007400	Lock down lid, white	Yes	1 Day(s)	$14.94
3	85000600	Ring seat only, 9 in. diameter	Yes	1 Day(s)	$8.76
3	85017900	Ring seat only, 9 in. tan	Yes	1 Day(s)	$10.04
4	85018500	Lid / ring seat complete, tan	Yes	1 Day(s)	$18.80
4	85000411	Lid / ring seat complete, black	Yes	1 Day(s)	$22.26
4	85000400	Lid / ring seat complete, white	Yes	1 Day(s)	$23.36
5	85001600	Gasket set, liner, std. 12 hole pattern	Yes	1 Day(s)	$16.93
6	85004211	Frame, sealing liner, black, std. 12 hole pattern	Yes	1 Day(s)	$11.85
6	85004213	Frame, sealing liner, dark grey, std. 12 hole pattern	Yes	1 Day(s)	$11.85
6	85004200	Frame, sealing liner, white, std. 12 hole pattern	Yes	1 Day(s)	$11.85
11	85001500	Flap weir	Yes	1 Day(s)	$16.93
12	85014600	Basket, tapered	Yes	1 Day(s)	$7.72
13	85002400	Trimmer valve plate, residential	Yes	1 Day(s)	$3.09
14	98204400	Screw for trimmer plate, 10-24 x 1/2 in.	Yes	1 Day(s)	$1.35
