SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

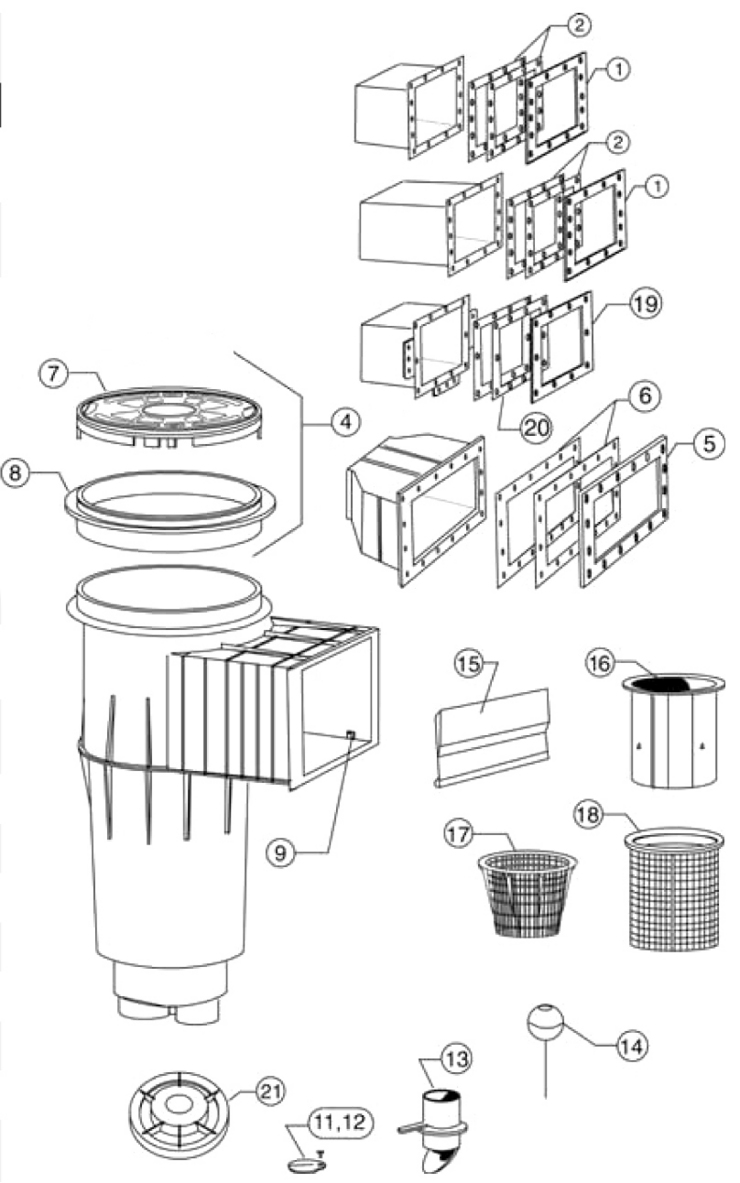

Here is the schematic view you requested:

Category: Skimmers
Manufacturer name: Pentair
Model Name: Admiral Skimmers

Pentair Admiral-Skimmers replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 85004200 Frame, sealing liner, white std. 12 hole pattern Yes 1 Day(s) $11.85

1

 85004211 Frame, sealing liner, black std. 12 hole pattern Yes 1 Day(s) $11.85

1

 85004213 Frame, sealing liner, grey std. 12 hole pattern Yes 1 Day(s) $11.85

2

 85001600 Gasket set, liner, std. 12 hole pattern Yes 1 Day(s) $16.93

4

 85018500 Lid / ring seat, complete, tan Yes 1 Day(s) $18.80

4

 85000411 Lid / ring seat, complete, black Yes 1 Day(s) $22.26

4

 85000400 Lid / ring seat, complete, white Yes 1 Day(s) $23.36

5

 85007600 Frame, sealing liner, wide mouth, white Yes 1 Day(s) $15.85

6

 85007700 Gasket, sealing liner, wide mouth, white Yes 1 Day(s) $22.17

7

 85007430 Lock down lid, tan Yes 1 Day(s) $14.94

7

 85007413 Lock down lid, grey Yes 1 Day(s) $14.94

7

 85007411 Lock down lid, black Yes 1 Day(s) $14.94

7

 85007400 Lock down lid, white Yes 1 Day(s) $14.94

8

 85000600 Ring seat only, 9 in. diameter, white Yes 1 Day(s) $8.76

9

 85017500 Pivot tab for flap weir Yes 1 Day(s) $0.70

11

 85002400 Trimmer valve plate, residential Yes 1 Day(s) $3.09

12

 98204400 Screw for trimmer plate, 10-24 x 1/2 in. Yes 1 Day(s) $1.35

13

 85002600 Vari-flo control insert only Yes 1 Day(s) $6.68

14

 85002000 Ball valve assy., complete Yes 1 Day(s) $14.83

15

 85001500 Flap weir Yes 1 Day(s) $16.93

16

 R38013B Floating weir, circular Yes 1 Day(s) $11.45

17

 85014500 Basket, tapered Yes 1 Day(s) $14.20

18

 R38013A Basket, for floating weir Yes 1 Day(s) $15.64

19

 85000300 Frame, liner, American 10 hole pattern Yes 1 Day(s) $28.62

20

 81111800 Gasket set, large 10 hole pattern, w/dbl.wall No N/A N/A N/A

20

 81111700 Gasket set, large 10 hole pattern, w/o-dbl. wall Yes 1 Day(s) $9.01

21

 85015100 O-ring, skimmer bottom Yes 1 Day(s) $4.76

21

 355330 O-ring, equalizer Yes 1 Day(s) $1.62

21

 85016600 Rubber stopper, flap weir Yes 1 Day(s) $3.07

21

 98213000 Screw, 8-32 x 5/8 in. commercial lid Yes 1 Day(s) $1.08

21

 98208500 Washer, gum commercial lid Yes 1 Day(s) $1.13

21

 85014700 Handle, basket Yes 1 Day(s) $3.09

21

 85007200 Angle bracket No N/A N/A N/A

21

 85012800 Track-VF skimmer No N/A N/A N/A

21

 85008800 Screw kit, std. 12 hole pattern, extra long Yes 1 Day(s) $11.96

21

 85008700 Screw kit, std. 12 hole pattern Yes 1 Day(s) $11.96

21

 85008600 Screw kit, American 10 hole pattern, extra long Yes 1 Day(s) $11.96

21

 85015200 Equalizer assy. Yes 1 Day(s) $26.61

21

 85000700 Square ring seat 10 1/2 in. x 10 1/2 in. Yes 1 Day(s) $13.41

21

 98202600 Screw, sealing (a) Yes 1 Day(s) $2.26

21

 98202700 Screw, sealing (a) Yes 1 Day(s) $2.30

21

 98202900 Screw, sealing (b) Yes 1 Day(s) $1.08

21

 98207200 Screw, sealing (b) Yes 1 Day(s) $1.26

21

 98203000 Screw (b) Yes 1 Day(s) $1.31

21

 85008500 Screw kit, American 10 hole pattern No N/A N/A N/A

21

 85014200 Trimmer, equalizer No N/A N/A N/A
