SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

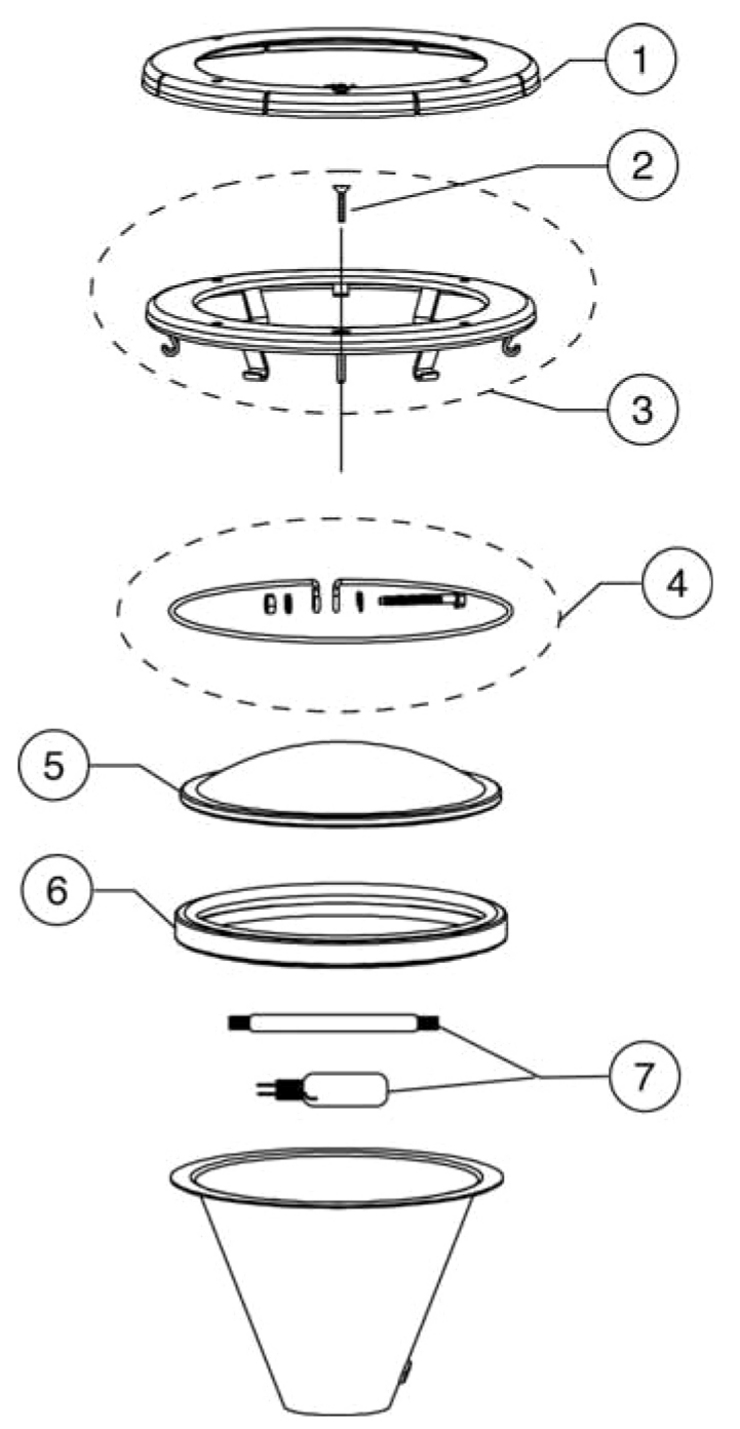

Here is the schematic view you requested:

Category: Lights and Niches
Manufacturer name: Pentair
Model Name: AmerQuartz Lights

Pentair AmerQuartz-Lights replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 79212100 Face ring, large plastic, white Yes 1 Day(s) $6.73

1

 79212165 Face ring, large plastic, grey Yes 1 Day(s) $6.73

1

 79212111 Face ring, large plastic, black Yes 1 Day(s) $6.73

2

 79104800 Pilot screw with captive gum washer, brass Yes 1 Day(s) $2.57

2

 619355 Pilot screw with captive gum washer, s/s No N/A N/A N/A

3

 79110600 Face ring assembly, s/s Yes 1 Day(s) $61.22

4

 79111000 Uni-tension wire clamp assy. Yes 1 Day(s) $36.54

5

 79100100 Lens, clear, 8-3/8 in. dia., tempered Yes 1 Day(s) $18.87

5

 79100200 Lens, med. blue, 8-3/8 in. dia., tempered Yes 1 Day(s) $52.16

6

 79101601 Gasket, 8-3/8 in. lens Yes 1 Day(s) $28.35

7

 79131000 300 watt, 120 volt, double-ended T3 bulb Yes 1 Day(s) $13.52

7

 79131100 500 watt, 120 volt, double-ended T3 bulb Yes 1 Day(s) $13.52

7

 79131400 50 watt, 12 volt,2 Pin T3 GY 6.35 bulb, 2 req. Yes 1 Day(s) $11.62

7

 79131200 100 watt, 12 volt, 2 Pin T3 GY 6.35 bulb, 2 req. Yes 1 Day(s) $20.29

7

 78900700 Kwik-change plastic lens cover, green Yes 1 Day(s) $11.06

7

 78900800 Kwik-change plastic lens cover, blue Yes 1 Day(s) $8.17

7

 78900900 Kwik-change plastic lens cover, red Yes 1 Day(s) $8.17

7

 78901000 Kwik-change plastic lens cover, amber Yes 1 Day(s) $8.17
