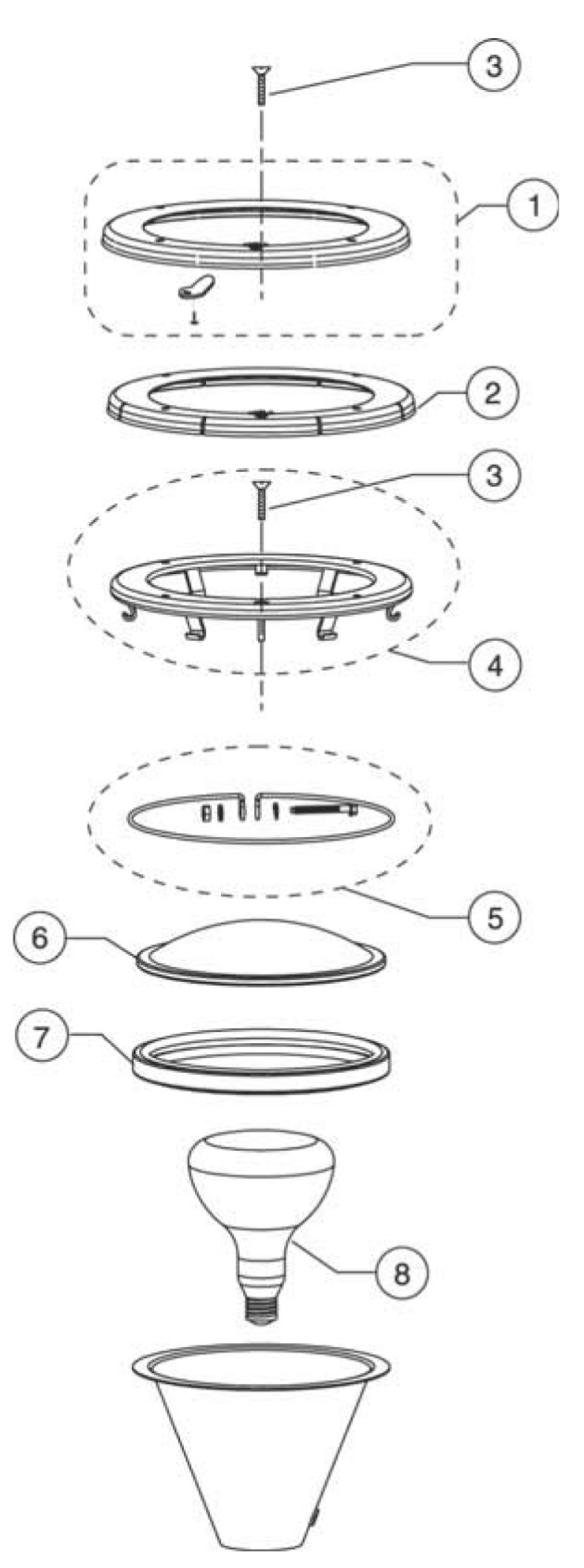

Here is the schematic view you requested:

Category: Lights and Niches

Manufacturer name: Pentair

Model Name: Amerlite Lights



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	619546	Face ring assy., chrome-brass	Yes	1 Day(s)	$112.84
2	79212100	Face ring, Ig. plastic, s/s only, white	Yes	1 Day(s)	$6.73
2	79212165	Face ring, Ig. plastic, s/s only, grey	Yes	1 Day(s)	$6.73
2	79212111	Face ring, Ig. plastic, s/s only, black	Yes	1 Day(s)	$6.73
3	619355	Pilot screw with captive gum washer, s/s	No	N/A	N/A	N/A
3	79104800	Pilot screw with captive gum washer, brass	Yes	1 Day(s)	$2.57
4	79110600	Face ring assembly, s/s	Yes	1 Day(s)	$61.22
5	79111000	Uni-tension wire clamp assy.	Yes	1 Day(s)	$36.54
6	79100100	Lens, clear 8-3/8 in. dia., tempered	Yes	1 Day(s)	$18.87
6	79100200	Lens, medium blue 8-3/8 in. dia., tempered	Yes	1 Day(s)	$52.16
7	79101600	Gasket for 8-3/8 in. lens	Yes	1 Day(s)	$18.76
8	79101800	Floodlamp, medium base, 100 watt,12 volt	Yes	1 Day(s)	$40.22
8	79101900	Floodlamp, medium base, 300 watt,12 volt	Yes	1 Day(s)	$48.39
8	79102100	Floodlamp, medium base, 500 watt,120 volt	Yes	1 Day(s)	$34.95
8	79107600	Floodlamp, medium base, 300 watt,120 volt	Yes	1 Day(s)	$51.10
8	79102200	Floodlamp, medium base, 400 watt,120 volt	Yes	1 Day(s)	$35.17
8	78900700	Kwik-change plastic lens cover, green	Yes	1 Day(s)	$11.06
8	78900800	Kwik-change plastic lens cover, blue	Yes	1 Day(s)	$8.17
8	78900900	Kwik-change plastic lens cover, red	Yes	1 Day(s)	$8.17
8	78901000	Kwik-change plastic lens cover, amber	Yes	1 Day(s)	$8.17
