SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

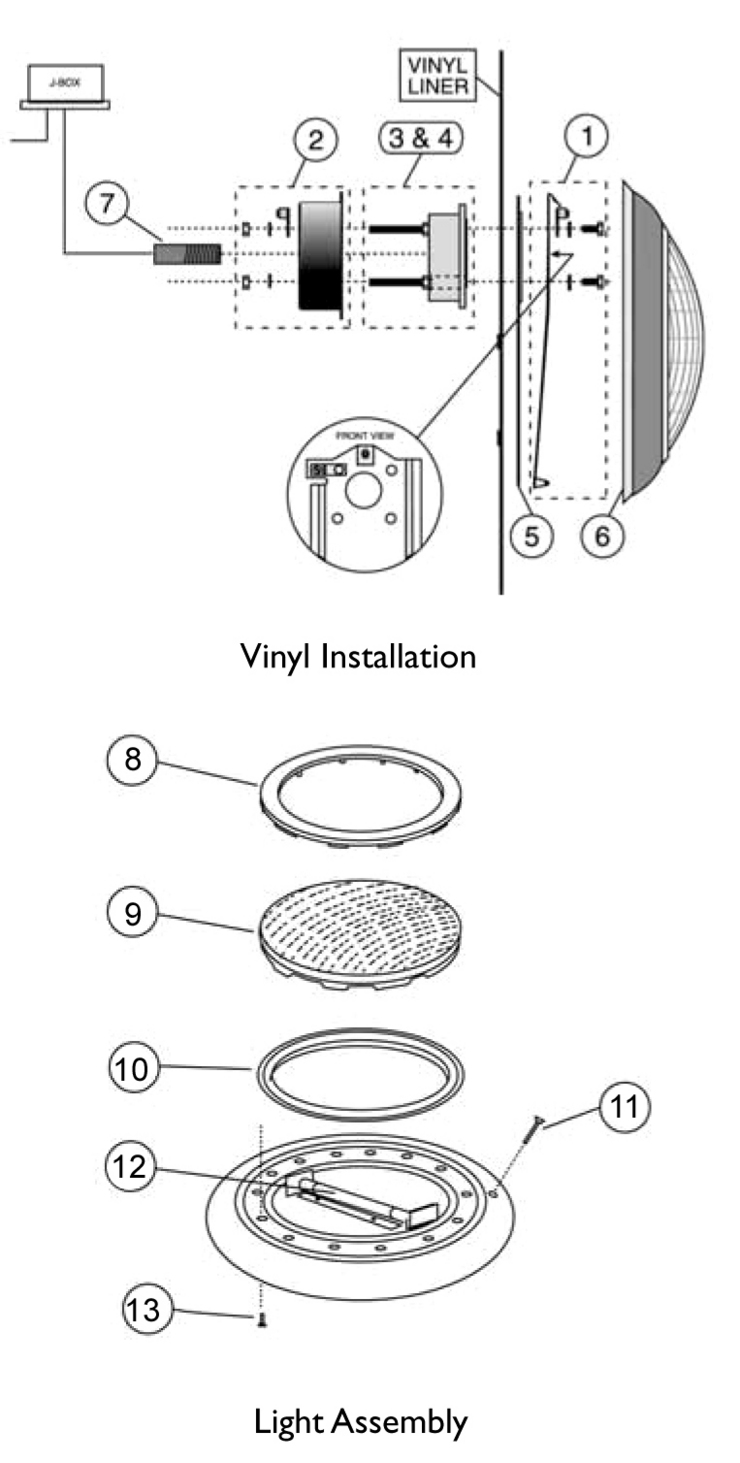

Here is the schematic view you requested:

Category: Lights and Niches
Manufacturer name: Pentair
Model Name: AquaLumin & AquaLumin II Lights

Pentair AquaLumin-AquaLumin-II-Lights replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 619547 Wall mounting bracket assy. Yes 1 Day(s) $66.79

2

 619548 Metal bracket cup assy. Yes 1 Day(s) $28.37

3

 619549 Mounting hub 3/4 in. assy. Yes 1 Day(s) $53.45

4

 619550 Mounting hub 1 in. assy. Yes 1 Day(s) $53.45

5

 78872600 Mounting spacer (b) Yes 1 Day(s) $10.43

5

 78872400 Mounting spacer (a) No N/A N/A N/A

6

 78882100 Housing spacer Yes 1 Day(s) $5.21

7

 86001800 Nipple, 1 in. Yes 1 Day(s) $15.98

8

 78880400 Face ring, white Yes 1 Day(s) $19.84

9

 78880300 Lens Yes 1 Day(s) $57.31

10

 78880200 Lens seal Yes 1 Day(s) $17.43

11

 78889900 Pilot screw, 10-24 x .375 Yes 1 Day(s) $2.05

12

 78880800 Halogen lamp, 12 volt, 150 watt No N/A N/A N/A

12

 78881100 Halogen lamp, 120 volt, 250 watt Yes 1 Day(s) $26.70

13

 78883701 Kwik-change lens cover, blue Yes 1 Day(s) $9.82

13

 78883703 Kwik-change lens cover, green Yes 1 Day(s) $11.06

13

 78883702 Kwik-change lens cover, red Yes 1 Day(s) $9.82

13

 85016600 Weir stop Yes 1 Day(s) $3.07

13

 98211400 Nut, 1/4-20 brass plated knurl Yes 1 Day(s) $2.75

13

 78881400 Sealing screws, 10 required Yes 1 Day(s) $0.93

13

 78883704 Kwik-change lens cover, amber Yes 1 Day(s) $11.06
