SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

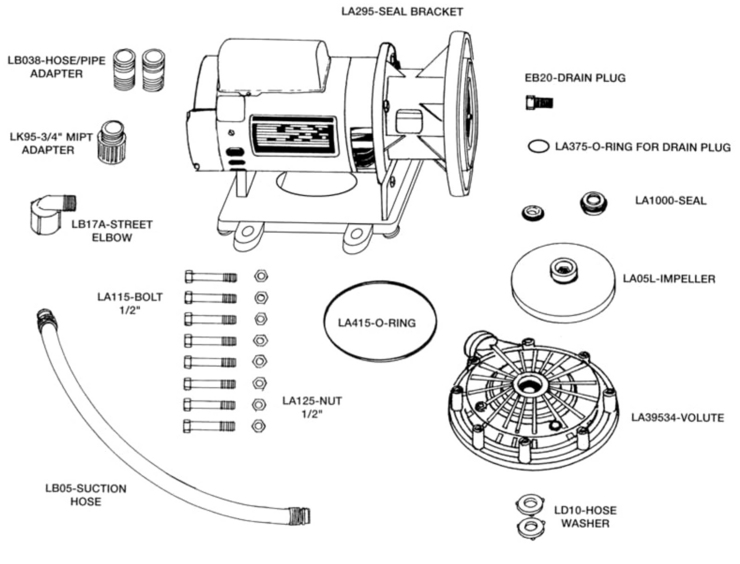

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Pentair
Model Name: Booster Pump - LA0IN (New Style)

Pentair Booster-Pump-LA0IN-New-Style replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 LLA115 Bolt - 2 PK Yes 1 Day(s) $1.73

-

 LA41 Pump Stand 99 complete Yes 1 Day(s) $21.13

-

 LD10 Hose Washer - 2 PK Yes 1 Day(s) $0.98

-

 LK95 3/4 in. MIPT Adapter (for K96) Yes 1 Day(s) $3.15

-

 LB17A Street Elbow Yes 1 Day(s) $5.41

-

 LB05 Suction Hose Yes 1 Day(s) $28.47

-

 LB03B Hose to Pipe Adapter Yes 1 Day(s) $4.40

-

 LLA415 O-Ring Yes 1 Day(s) $2.40

-

 EB20 Drain Plug - 2 PK Yes 1 Day(s) $2.09

-

 LA375 O-Ring for drain plug Yes 1 Day(s) $0.69

-

 LLA295 Seal Bracket Yes 1 Day(s) $87.99

-

 LLA39534 Volute Yes 1 Day(s) $108.98

-

 LLA05L Impeller Yes 1 Day(s) $27.24

-

 LLA125 Nut - 2 PK Yes 1 Day(s) $2.13

-

 LLA02L Impeller Yes 1 Day(s) $25.62
