SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

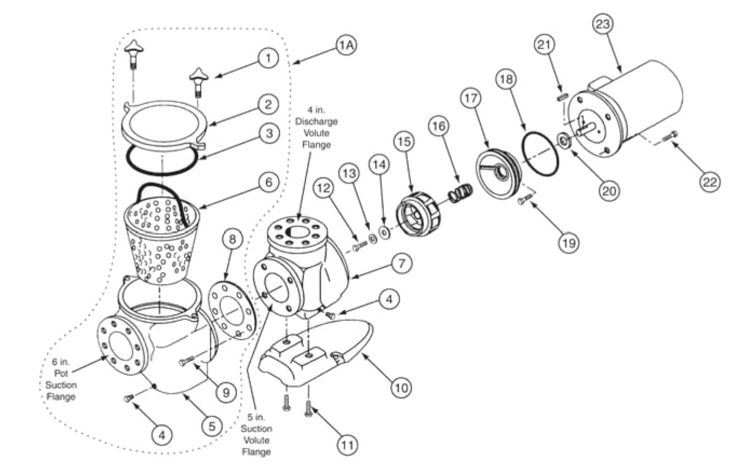

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Pentair

Model Name: C Series Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	14802	Mtr. sub assy. CHKL-75 380/415v (d)	Yes	1 Day(s)	$4269.74
-	14804	Mtr. sub assy. CHKL-150 (d)	Yes	1 Day(s)	$6039.95
-	14703	Mtr. sub assy. CMKL-150 (d)	Yes	1 Day(s)	$6039.95
-	14803	Mtr. sub assy. CHKL-100 (d)	Yes	1 Day(s)	$5482.40
-	14702	Mtr. sub assy. CMKL-100 (d)	Yes	1 Day(s)	$5482.40
-	357930	Mtr. sub assy. CM-75, 1PH,200v (c)	Yes	1 Day(s)	$3857.42
-	14701	Mtr. sub assy. CMKL-75 380/415v (d)	Yes	1 Day(s)	$4269.74
-	14801	Mtr. sub assy. CHKL -50 380/415v (d)	Yes	1 Day(s)	$4159.07
-	357251	Mtr. sub assy. CM-100, 1PH,230v	Yes	1 Day(s)	$5610.77
-	357250	Mtr. sub assy. CH-100, 10HP, 1PH, 230v	Yes	1 Day(s)	$5610.77
-	14805	Mtr. sub assy. CHKL - 200 (d)	Yes	1 Day(s)	$8620.77
-	357910	Mtr. sub assy. CH-75, 1PH,230v (c)	Yes	1 Day(s)	$3857.42
-	73262	Mtr. sub assy. CMK-50 (b)	Yes	1 Day(s)	$4199.05
-	73265	Mtr. sub assy. CHK-50 (b)	Yes	1 Day(s)	$4306.71
-	73263	Mfr. sub assy. CMK-75 (b)	Yes	1 Day(s)	$4310.78
-	73266	Mtr. sub assy. CHK-75 (b)	Yes	1 Day(s)	$4421.47
-	73680	Mtr. sub assy. CMK- 100 (b)	Yes	1 Day(s)	$5442.85
-	73261	Mtr. sub assy. CMK-150 (b)	Yes	1 Day(s)	$5836.65
-	73268	Mtr. sub assy. CHK-150 (b)	Yes	1 Day(s)	$6098.05
-	73269	Mtr. sub assy. CHK-200 (b)	Yes	1 Day(s)	$8703.63
-	14700	Mtr. sub assy. CMKL -50 380/415v (d)	Yes	1 Day(s)	$4159.07
-	357935	Mtr. sub assy. CH-75, 1PH,200v (c)	Yes	1 Day(s)	$3857.42
1	75280	Hand nut assy. - bronze	Yes	1 Day(s)	$81.06
1A	72747	C series pot assy. (a)	Yes	1 Day(s)	$3676.55
2	75275	Cover, C16 - bronze	Yes	1 Day(s)	$587.93
3	71433	O-ring, C-18	Yes	1 Day(s)	$5.55
4	71551	Plug pipe 1/4 in. bronze	Yes	1 Day(s)	$3.30
5	75271	Pot mach. bronze	Yes	1 Day(s)	$2785.29
6	72795	Basket, C-29 s/s 11 in.	Yes	1 Day(s)	$276.60
7	75273	Volute, C-2 bronze	Yes	1 Day(s)	$2747.71
8	70943	Gasket flange P-135-5 in.	Yes	1 Day(s)	$17.04
9	71683	Screw 3/4-10 x 1.75 hh. brs. P-12	Yes	1 Day(s)	$21.29
10	75287	Foot, C-4 coated	Yes	1 Day(s)	$61.24
11	71688	Screw 5/8-11 x 1 stl. hh.	Yes	1 Day(s)	$1.13
12	71037	Imp. - C-35 lock screw	Yes	1 Day(s)	$3.77
13	71048	Imp. washer, C-71	Yes	1 Day(s)	$8.55
14	75713	Imp. washer gasket	Yes	1 Day(s)	$0.90
15	70226	Imp. CM-100/CMK-100/CMKL-100,10HP, 1PH, 3PH, med hd.	Yes	1 Day(s)	$907.35
15	73832	Imp. CHK-200/CHKL-200, 20HP, 3PH, high hd.	Yes	1 Day(s)	$907.35
15	70225	Imp. CMK-150/CMKL-150,15HP, 3PH, med hd.	Yes	1 Day(s)	$907.35
15	73831	Imp. CHK-150/CHKL-150,15HP, 3PH, high hd.	Yes	1 Day(s)	$907.35
15	73830	Imp. CH-100/CHK-100/ CHKL-100,10HP, 1PH, 3PH, high hd.	Yes	1 Day(s)	$907.35
15	70227	Imp. CM-75/CMK-75/ CMKL-75, 7.5HP, 1PH, 3PH, med. hd.	Yes	1 Day(s)	$907.35
15	73829	Imp. CH-75/CHK-75/ CHKL-75, 7.5HP, 1PH, 3PH, high hd.	Yes	1 Day(s)	$907.35
15	70228	Imp. CM-50/CMK-50/ CMKL-50, 5HP, 1PH, 3PH, med. hd.	Yes	1 Day(s)	$907.35
15	73828	Imp. CH-50/CHK-50/ CHKL-50, 5HP, 1PH, 3PH, high hd.	Yes	1 Day(s)	$907.35
16	71725	Seal (C-7) PS-360	Yes	1 Day(s)	$31.17
17	70906	Flange, mach.- C-52 brass	Yes	1 Day(s)	$395.17
18	71423	O-ring, C-70	Yes	1 Day(s)	$2.21
19	71681	Screw 3/8-16 3/4 in.CS hh.	Yes	1 Day(s)	$0.84
20	72185	Water slinger, C-115	Yes	1 Day(s)	$5.87
21	71046	Imp. key 3/16 in.	Yes	1 Day(s)	$14.85
22	71687	Screw 1/2 - 13 x 1.25 stl. hh.	Yes	1 Day(s)	$3.68
23	357205	Mtr. 5HP, 1PH, 200/208v	Yes	1 Day(s)	$2266.54
23	71365	Mtr. 7.5HP, 3PH, 220/440v	Yes	1 Day(s)	$1993.31
23	357238	Mtr. 10HP, 3PH, 575v	Yes	1 Day(s)	$2867.21
23	71363	Mtr. 10HP, 3PH, 220/440v	Yes	1 Day(s)	$2867.21
23	357209	Mtr. 10HP, 3PH, 200/208v	Yes	1 Day(s)	$2867.21
23	357247	Mtr. 7.5HP, 3PH, 575v	Yes	1 Day(s)	$1993.31
23	357206	Mtr. 5HP, 3PH, 200/208v	Yes	1 Day(s)	$1820.36
23	357208	Mtr. 7.5HP, 3PH, 200/208v	Yes	1 Day(s)	$1993.31
23	357204	Mtr. 7.5HP, 1PH, 230v	Yes	1 Day(s)	$2472.24
23	357207	Mtr. 7.5HP, 1PH, 200/208v	Yes	1 Day(s)	$2472.24
23	357210	Mtr. 15HP, 3PH, 200/208v	Yes	1 Day(s)	$3358.85
23	71361	Mtr. 15HP, 3PH, 220/440v	Yes	1 Day(s)	$3358.85
23	71366	Mtr. 5HP, 1PH, 230v	Yes	1 Day(s)	$2266.54
23	72744	Mtr. 20HP. 3PH, 380/415v	No	N/A	N/A	N/A
23	72740	Mtr. 10HP, 3PH, 380/415v	Yes	1 Day(s)	$2867.21
23	72737	Mtr. 5HP, 3PH, 380/415v	No	N/A	N/A	N/A
23	357246	Mtr. 20HP, 3PH, 575v	No	N/A	N/A	N/A
23	72739	Mtr. 7.5HP, 3PH, 380/415v	Yes	1 Day(s)	$1993.31
23	71362	Mtr. 20HP, 3PH, 220/440v	Yes	1 Day(s)	$5523.53
23	357211	Mtr. 20HP, 3PH, 200/208v	Yes	1 Day(s)	$5523.53
23	357245	Mtr. 15HP, 3PH, 575v	Yes	1 Day(s)	$3358.85
23	71364	Mtr. 5HP, 3PH, 220/440v	Yes	1 Day(s)	$1820.36
