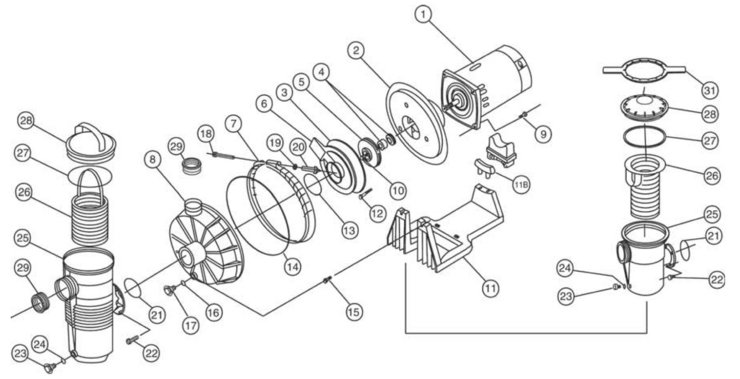

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Pentair

Model Name: Challenger High Flow Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	355309	Union kit	Yes	1 Day(s)	$62.68
1	355203	1 hp, 3 ph sq.flg. CHII-NI	Yes	1 Day(s)	$257.00
1	355204	1 1/2 hp, 3 ph sq. fig. CHII-NI	Yes	1 Day(s)	$320.61
1	355205	2hp, 3 ph sq.flg. CHII-NI	Yes	1 Day(s)	$356.52
1	355636	CF-N1-1/2F, 3/4A std, 115/230	Yes	1 Day(s)	$573.89
1	355637	CF-N1-3/4/F, 1A std, 115/230	Yes	1 Day(s)	$621.75
1	355638	CF-N1-1F, 1 1/2A std, 115/230	Yes	1 Day(s)	$666.26
1	355520	CF-N1-1 1/2F, 2A std, 230 only	Yes	1 Day(s)	$784.87
1	355984	CF-N1-3/4FE, 1AE 115/208/230	No	N/A	N/A	N/A
1	355985	CF-N1-1FE, 1 1/2AE 115/208/230	Yes	1 Day(s)	$739.03
1	355639	CF-N1-1 1/2FE, 2AE 208/230	Yes	1 Day(s)	$788.28
1	355986	CF-N1-2FE, 2 1/2AE 208/230	Yes	1 Day(s)	$999.24
1	355640	CF-N2-3/4F, 1A 2 sp. std, 115 only	Yes	1 Day(s)	$800.43
1	355641	CF-N2-1F, 1 1/2A 2 sp. std, 230 only	Yes	1 Day(s)	$822.77
1	355642	CF-N2-1 1/2F, 2A 2 sp. std, 230 only	Yes	1 Day(s)	$954.80
1	355987	CF-N2-2F, 2 1/2A 2 sp. std, 230 only	Yes	1 Day(s)	$1135.53
1	345211	CFII-N1-5FE, power end	Yes	1 Day(s)	$1142.08
1	345301	CFII-N1-5F, 3ph, power end	Yes	1 Day(s)	$1075.01
1	355201	3/4 hp, 3 ph sq. fig. CHII-NI	Yes	1 Day(s)	$226.96
1	355705	5FE, 1 ph, 5 hp	Yes	1 Day(s)	$528.52
1	355392	1FE, 1 1/2AE sq. fig. 115/208/230, 34 lbs.	Yes	1 Day(s)	$230.91
1	355391	3/4FE, 1AE sq. fig. 115/208/230, 32 lbs.	Yes	1 Day(s)	$212.67
1	355703	3F std.sq. fig. 230 only	Yes	1 Day(s)	$421.33
1	355702	2F, 2 1/2A std. sq. fig, 230 only, 32 lbs.	Yes	1 Day(s)	$323.86
1	355342	1 1/2F, 2A std. sq. fig, 230 only, 32 lbs.	Yes	1 Day(s)	$274.18
1	355340	1F, 1 1/2A std. sq. fig, 115/230, 28 lbs.	Yes	1 Day(s)	$221.30
1	355339	3/4F, 1A std. sq. fig, 115/230, 25 lbs.	Yes	1 Day(s)	$199.06
1	355371	1/2 F, 3/4 A std. sq. fig., 115/230, 25 lbs.	Yes	1 Day(s)	$175.52
1	355393	1 1/2FE, 2AE sq. fig. 208/230, 30 lbs.	Yes	1 Day(s)	$281.09
1	355394	2FE, 2 1/2AE sq. fig. 208/230, 36 lbs.	Yes	1 Day(s)	$335.01
1	355395	3FE, 1 ph sq. fig. 208/230, 40 lbs.	Yes	1 Day(s)	$423.47
1	355398	3FE, 3 ph sq. fig. 208/230/460, 22 lbs, blk.	Yes	1 Day(s)	$431.60
1	355375	3/4F, 1A std. sq. fig. 2sp. 115 only, 28 lbs.	Yes	1 Day(s)	$289.51
1	355232	3/4F, 1A std. sq. fig. 2 sp. 230 only, 28 lbs.	Yes	1 Day(s)	$263.01
1	355376	1F, 1 1/2A std. sq. fig. 2 sp. 230 only, 33 lbs, blk.	Yes	1 Day(s)	$297.84
1	355377	1 1/2F, 2A std. sq. fig. 2 sp. 230 only, 36 lbs.	Yes	1 Day(s)	$360.56
1	355378	2F, 2 1/2A std. sq. fig. 2 sp. 230 only, 39 lbs.	Yes	1 Day(s)	$450.76
1	355704	5FE, 3 ph, 5 hp, 230/460 sq. fig. only	Yes	1 Day(s)	$524.60
2	355497	Plate - seal, 5F	Yes	1 Day(s)	$58.15
2	355303	Plate - seal	Yes	1 Day(s)	$58.15
3	355028	Plate - mounting 1/2F, 3/4F, 3/4A, 1A	Yes	1 Day(s)	$13.54
3	355078	Plate - mounting 1F, 1 1/2F, 1 1/2A, 2A	Yes	1 Day(s)	$8.53
3	355095	Plate - mounting 2F, 2 1/2A	Yes	1 Day(s)	$14.72
3	355495	Plate - mounting 5F	Yes	1 Day(s)	$7.88
4	354545	Seal - 5/8 in. mechanical	Yes	1 Day(s)	$13.05
5	355068	Impeller - 3F 50 Hz / 5F 60 Hz	Yes	1 Day(s)	$31.76
5	355093	Impeller - 2F, 2 1/2A	Yes	1 Day(s)	$32.93
5	355086	Impeller-1 1/2F, 2A	Yes	1 Day(s)	$32.35
5	355074	Impeller-1F,1 1/2A	Yes	1 Day(s)	$32.12
5	355067	Impeller-3/4F,1A	Yes	1 Day(s)	$31.76
5	355043	Impeller-1/2F, 3/4A	Yes	1 Day(s)	$31.13
6	355029	Diffuser-1/2F, 3/4F, 3/4A, 1A	Yes	1 Day(s)	$23.14
6	355077	Diffuser-1F, 1 1/2F, 1 1/2A, 2A	Yes	1 Day(s)	$23.14
6	355094	Diffuser - 2F, 2 1/2A	Yes	1 Day(s)	$24.78
6	355069	Diffuser-3F, 50 Hz / 5F 60 Hz	Yes	1 Day(s)	$21.40
7	355320	Band clamp assy., complete	Yes	1 Day(s)	$49.57
8	355468	Housing - front, blk.	Yes	1 Day(s)	$84.83
8	355469	Housing - front, almond	Yes	1 Day(s)	$84.83
9	354290	Screw-3/8 in.-16 hex hd, 4 req.	Yes	1 Day(s)	$1.51
10	355389	Screw - impeller locking	Yes	1 Day(s)	$0.90
11B	355385	Adapter - 5 -5/8 in. dia. Motor (b)	Yes	1 Day(s)	$7.22
11	355305	Base - pump (a)	Yes	1 Day(s)	$28.31
12	355334	Screw - #8 - 32 hex wsh. hd., 3 req.	Yes	1 Day(s)	$0.90
13	355030	O-ring - diffuser	Yes	1 Day(s)	$5.35
14	355329	O-ring - front housing	Yes	1 Day(s)	$9.59
15	355335	Screw - 5/16 -18 x 1/2 in. s/s hex hd., 2 req.	Yes	1 Day(s)	$0.90
16	192115	O-ring - drain plug	Yes	1 Day(s)	$1.21
17	154699	Plug - 1/4 in. drain	Yes	1 Day(s)	$5.60
18	152060	Bolt-5/16-18 x 4 in. carriage (c)	Yes	1 Day(s)	$9.38
19	72173	Wsh.-5/16 in. s/s flat	Yes	1 Day(s)	$1.02
20	175025	Knob (fits clamp w/captured T-bolt only)	Yes	1 Day(s)	$20.11
20	174882	Knob (fits clamp w/removable bolt only)	Yes	1 Day(s)	$26.99
21	355330	O-ring - strainer pot flange	Yes	1 Day(s)	$1.62
22	354265	Screw - 5/16 -18 hex wsh. hd., 4 req.	Yes	1 Day(s)	$1.22
23	154699	Plug - 1/4 in. drain	Yes	1 Day(s)	$5.60
24	192115	O-ring - drain plug	Yes	1 Day(s)	$1.21
25	355300	Strainer - pot	Yes	1 Day(s)	$83.63
25	355900	Strainer - pot, 5F 3 in. suction for all large strainer pot models	Yes	1 Day(s)	$299.55
26	355318	Basket - plastic strainer	Yes	1 Day(s)	$23.47
26	355901	Basket -s/s strainer, 5F	Yes	1 Day(s)	$234.37
27	350013	O-ring - lid	Yes	1 Day(s)	$1.76
27	152509	Square ring 8 1/2 in.	Yes	1 Day(s)	$4.20
28	355301	Lid - strainer pot	Yes	1 Day(s)	$36.84
28	355902	Lid - strainer pot, 5F, clear	Yes	1 Day(s)	$42.71
28	354914	Lid-strainer pot, 5F, black	No	N/A	N/A	N/A
28	354112	Lid - strainer pot, chemical resistant	Yes	1 Day(s)	$36.84
29	552377	Bushing - reducer 1/2F, 3/4F, 3/4A, 1A, 2 req.	Yes	1 Day(s)	$8.17
31	154527	Wrench 8 1/2 in.	Yes	1 Day(s)	$16.77
