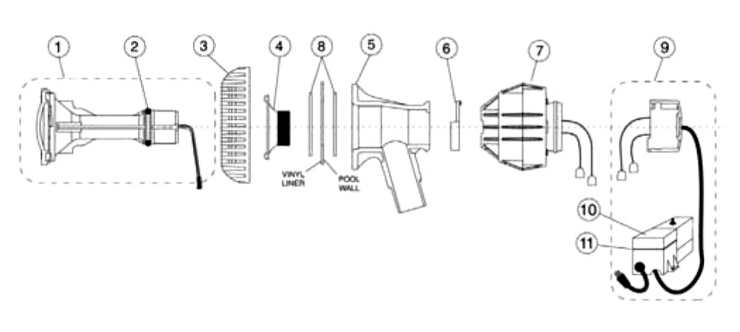

Here is the schematic view you requested:

Category: Lights and Niches

Manufacturer name: Pentair

Model Name: Color AquaLight (CAL) Lights



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	619580	Cal Bulb Assembly	Yes	1 Day(s)	$346.57
2	79116900	O-ring	Yes	1 Day(s)	$3.57
3	79102800	Flow director	Yes	1 Day(s)	$25.03
4	79118300	Wall flange, threaded	Yes	1 Day(s)	$17.56
5	79126900	Fitting body	Yes	1 Day(s)	$44.58
6	619545	Clip Washer	Yes	1 Day(s)	$5.21
7	619544	Control, PCB assy.	Yes	1 Day(s)	$157.53
8	79116800	Gasket, 2 req.	Yes	1 Day(s)	$8.24
9	83000000	Transformer assy, with cord and cap	Yes	1 Day(s)	$152.88
10	619552	J-Box assy.	Yes	1 Day(s)	$20.86
11	79401000	J-Box gasket	Yes	1 Day(s)	$4.76
11	79110700	Spacer, mounting	Yes	1 Day(s)	$5.21
