SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

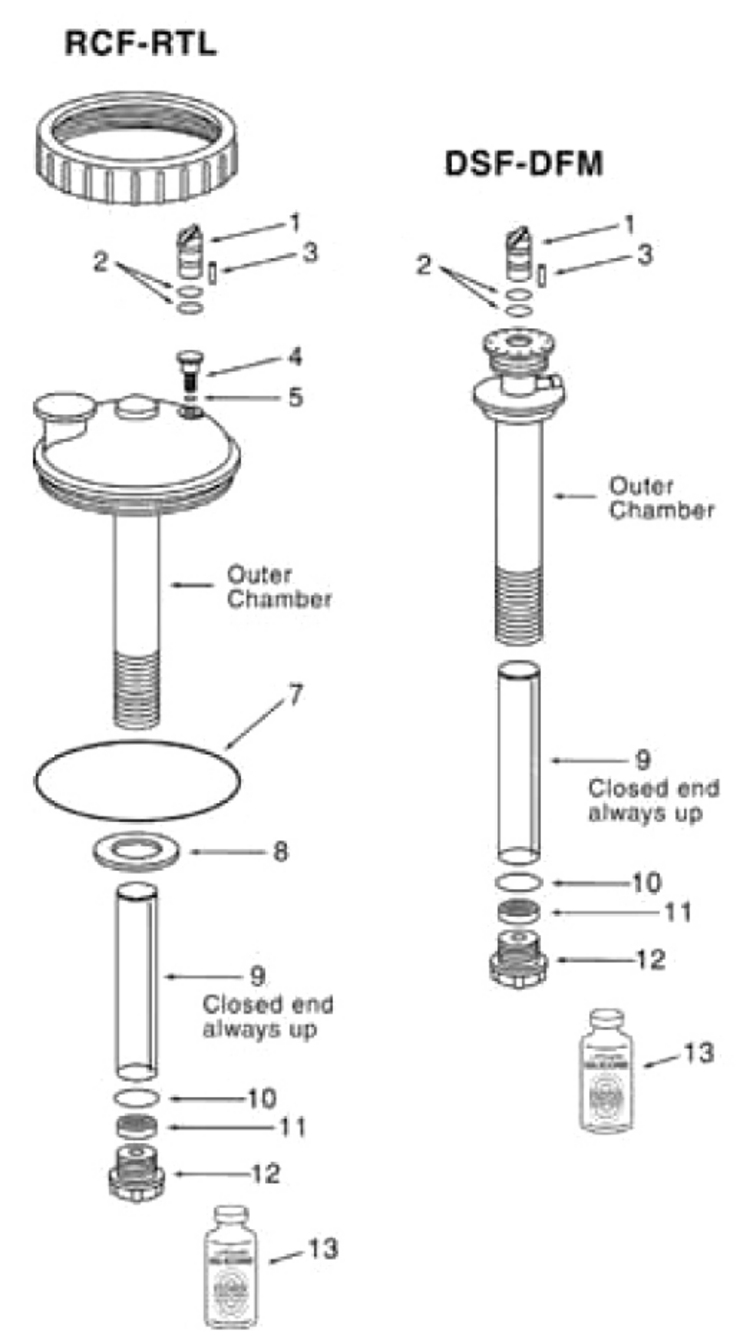

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Pentair

Model Name: Dynamic Series Chlorine/Bromine Dispenser



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R172399	Control valve stem	Yes	1 Day(s)	$3.51
1	R172399	Control valve stem	Yes	1 Day(s)	$3.51
2	R33017	O-ring, control valve	Yes	1 Day(s)	$0.24
2	R33017	O-ring, control valve	Yes	1 Day(s)	$0.24
3	R18854	Stop pin	Yes	1 Day(s)	$0.90
3	R18854	Stop pin	Yes	1 Day(s)	$0.90
6	R172400	Inlet screen not shown	Yes	1 Day(s)	$0.90
6	R172400	Inlet screen not shown	Yes	1 Day(s)	$0.90
9	R172457	Replacement inner chamber	Yes	1 Day(s)	$3.78
9	R172457	Replacement inner chamber	Yes	1 Day(s)	$3.78
10	R172451	O-ring, check valve	Yes	1 Day(s)	$0.90
10	R172451	O-ring, check valve	Yes	1 Day(s)	$0.90
11	R172401	Screen, check valve	Yes	1 Day(s)	$0.90
11	R172401	Screen, check valve	Yes	1 Day(s)	$0.90
12	R172406	Check valve assy.	No	N/A	N/A	N/A
12	R172406	Check valve assy.	No	N/A	N/A	N/A
