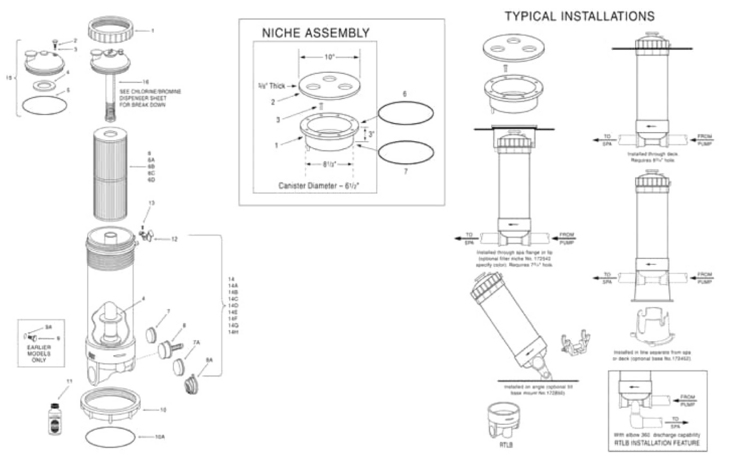

Here is the schematic view you requested:

Category: Cartridge Filter Parts
Manufacturer name: Pentair
Model Name: Dynamic Series II & III - Models RTL/RCF

Pentair Dynamic-Series-II-III-Models-RTLRCF replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

R172452 Free standing base Yes 1 Day(s) $7.30

-

R170072 O-ring, niche to spa Yes 1 Day(s) $4.24

-

R170072 O-ring, niche to spa Yes 1 Day(s) $4.24

1

R172610DG Niche Only DG Yes 1 Day(s) $9.61

1

R172610SS Niche Only - Sterling Silver No N/A N/A N/A

1

R172610WH Niche Only - White No N/A N/A N/A

2

R172611WH Niche Cover-White Yes 1 Day(s) $10.14

2

R12611SS Niche Cover - Sterling Silver No N/A N/A N/A

2

R172611BK Niche Cover- Black No N/A N/A N/A

3

R172612 #10 x 3/4, s/s flat head screw Yes 1 Day(s) $0.95

6

R173428 25 sq. ft. cartridge 6 oz. (a) Yes 1 Day(s) $32.80

6

R173428 25 sq. ft. cartridge 6 oz. (a) Yes 1 Day(s) $32.80

7A

R172679 2 in. plug to disable by-pass Yes 1 Day(s) $3.51

7

R172225X 1 1/2 in. plug to disable by-pass Yes 1 Day(s) $1.56

7

R172225X 1 1/2 in. plug to disable by-pass Yes 1 Day(s) $1.56

8B

R172226XF 1 1/2 in. by-pass assy, (low flow) Yes 1 Day(s) $3.19

10A

R170070 O-ring, locking flange Yes 1 Day(s) $3.85

10A

R170070 O-ring, locking flange Yes 1 Day(s) $3.85

10A

R170070 O-ring, locking flange Yes 1 Day(s) $3.85

14D

R172390B RTLB-25 cartridge housing assy. (b) Yes 1 Day(s) $57.35

14G

R172638 RTL/RCF-75 housing assy. 2 in. slip (b) Yes 1 Day(s) $54.74

14F

R172428 RTL/RCF-50 housing assy. 2 in. slip (b) Yes 1 Day(s) $52.84

14E

R172421 RTL/RCF-25 housing assy. 2 in. slip (b) Yes 1 Day(s) $49.92

14C

R172389 RTL/RCF- 50 housing assy. 1 1/2 in. FPT (b) Yes 1 Day(s) $76.25

14B

R172388 RTL/RCF- 50 housing assy. 1 1/2 in. slip (b) Yes 1 Day(s) $76.25

14A

R172387 RTL/RCF- 25 housing assy. 1 1/2 in. FPT (b) Yes 1 Day(s) $76.25

14

R172386 RTL/RCF- 25 housing assy. 1 1/2 in. slip (b) Yes 1 Day(s) $76.25

14H

R172639 RTL/RCF-100 housing assy. 2 in. slip Yes 1 Day(s) $54.74

15

R172385 Lid assy, complete Yes 1 Day(s) $22.10

16

R172540 Chlorine/Bromine dispenser complete- RCF Yes 1 Day(s) $45.63
