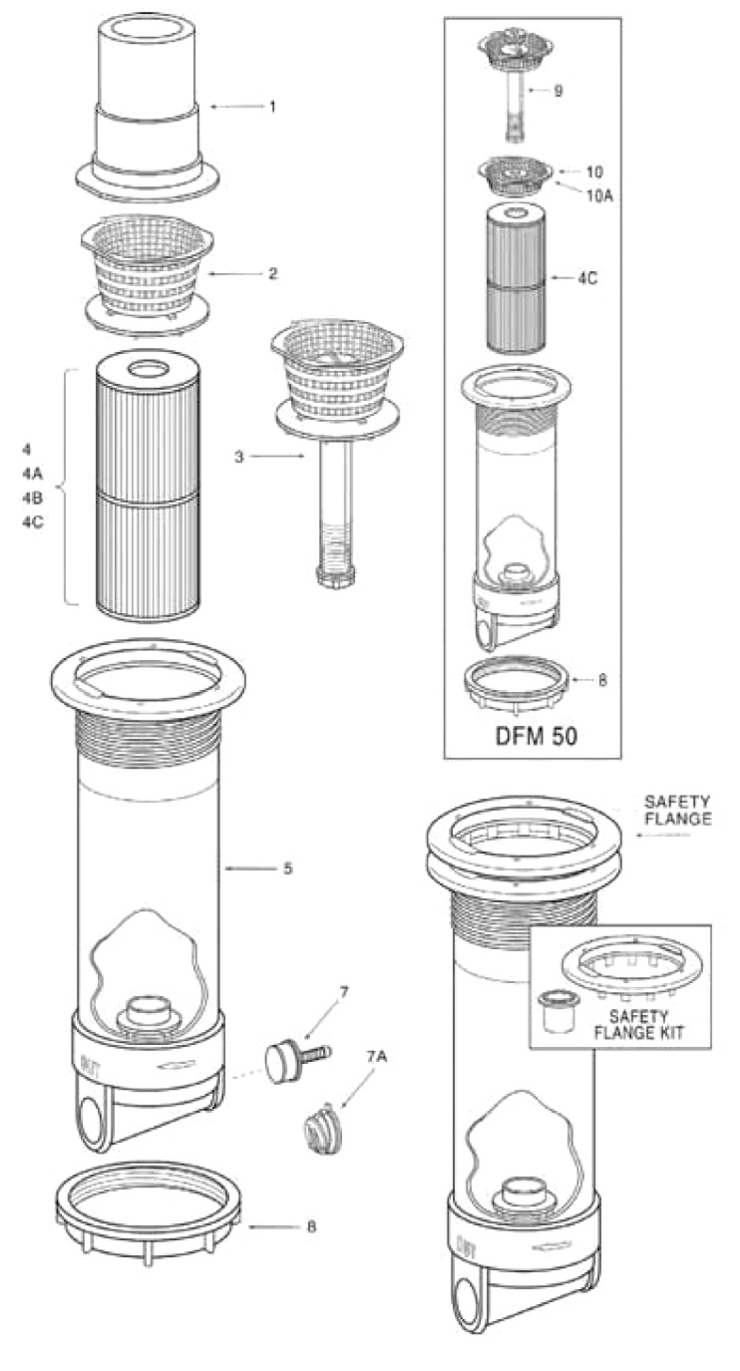

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Pentair

Model Name: Dynamic Series IV - DFM, DFML



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R172660	Lily skimmer float assy.	Yes	1 Day(s)	$8.07
2	R172661	Lily basket w/restrictor assy.	Yes	1 Day(s)	$9.32
3	R172662	Lily chemical dispenser w/ basket and restrictor assy.	Yes	1 Day(s)	$36.43
4C	R173434	Cartridge 50 sq.ft.-13 1/4	Yes	1 Day(s)	$63.11
4B	R173431	Cartridge 35 sq. ft. -9 1/4	Yes	1 Day(s)	$33.83
4C	R173434	Cartridge 50 sq.ft.-13 1/4	Yes	1 Day(s)	$63.11
4C	R173434	Cartridge 50 sq.ft.-13 1/4	Yes	1 Day(s)	$63.11
5	R172665X	Housing only DFML-25WH compact w/safety flange	Yes	1 Day(s)	$63.70
7	R172682	2 in. by-pass assy.	Yes	1 Day(s)	$4.49
8	R172370	Bottom locking flange	Yes	1 Day(s)	$12.24
8	R172370	Bottom locking flange	Yes	1 Day(s)	$12.24
9	R172562	Chemical dispenser w/short basket	Yes	1 Day(s)	$38.99
10	R22113	Basket assy.-short	Yes	1 Day(s)	$3.66
10A	R172686	Basket short w/restrictor assy.	Yes	1 Day(s)	$9.40
