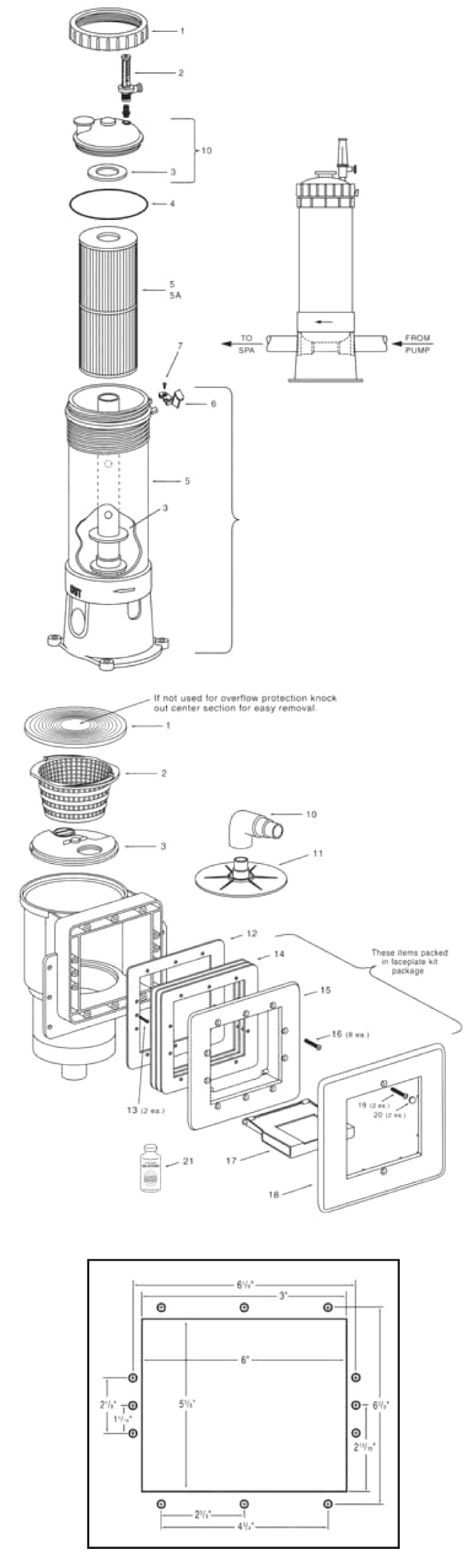

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Pentair

Model Name: Dynamic Series V - Models DSC/SWS Safety Wall Skimmer



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R172468	Cover	Yes	1 Day(s)	$4.92
1	R172468	Cover	Yes	1 Day(s)	$4.92
2	R172467	Basket assy.	Yes	1 Day(s)	$3.51
2	R172467	Basket assy.	Yes	1 Day(s)	$3.51
3	R172222	Gasket, cartridge	Yes	1 Day(s)	$3.08
3	R172222	Gasket, cartridge	Yes	1 Day(s)	$3.08
3	R172466	Diverter plate assy.	Yes	1 Day(s)	$11.46
3	R172466	Diverter plate assy.	Yes	1 Day(s)	$11.46
3	R172222	Gasket, cartridge	Yes	1 Day(s)	$3.08
3	R172222	Gasket, cartridge	Yes	1 Day(s)	$3.08
5A	R173436	100 sq.ft. cartridge	No	N/A	N/A	N/A
5A	R173436	100 sq.ft. cartridge	No	N/A	N/A	N/A
5	R173435	75 sq. ft. cartridge	Yes	1 Day(s)	$51.31
5	R173435	75 sq. ft. cartridge	Yes	1 Day(s)	$51.31
6	R172374	Lock spring	Yes	1 Day(s)	$6.32
6	R172374	Lock spring	Yes	1 Day(s)	$6.32
6	R172374	Lock spring	Yes	1 Day(s)	$6.32
7	R172375	Lock screw	Yes	1 Day(s)	$1.41
7	R172375	Lock screw	Yes	1 Day(s)	$1.41
7	R172375	Lock screw	Yes	1 Day(s)	$1.41
10	R172385A	Lid assy, complete	Yes	1 Day(s)	$15.44
10	R172480	90 deg. vac plate adapter	Yes	1 Day(s)	$5.65
10	R172480	90 deg. vac plate adapter	Yes	1 Day(s)	$5.65
11	R172479	Vac plate	Yes	1 Day(s)	$3.51
11	R172479	Vac plate	Yes	1 Day(s)	$3.51
12	R172470	Gasket-rear	Yes	1 Day(s)	$3.72
12	R172470	Gasket-rear	Yes	1 Day(s)	$3.72
13	R172475	Screw 13-16 x 3/4 in. hi-lo pan head	Yes	1 Day(s)	$0.95
13	R172475	Screw 13-16 x 3/4 in. hi-lo pan head	Yes	1 Day(s)	$0.95
14	R172471	Gasket-front face plate	Yes	1 Day(s)	$3.72
14	R172471	Gasket-front face plate	Yes	1 Day(s)	$3.72
15	R172472	Face plate	Yes	1 Day(s)	$5.37
15	R172472	Face plate	Yes	1 Day(s)	$5.37
16	R172474	Screw 13-16 x 1 1/4 in. hi-lo flat head	Yes	1 Day(s)	$0.95
16	R172474	Screw 13-16 x 1 1/4 in. hi-lo flat head	Yes	1 Day(s)	$0.95
17	R172469	Weir gate assy.	Yes	1 Day(s)	$5.61
17	R172469	Weir gate assy.	Yes	1 Day(s)	$5.61
18	R172473	Safety face plate cover (white)	Yes	1 Day(s)	$5.65
18	R172473	Safety face plate cover (white)	Yes	1 Day(s)	$5.65
19	R172483	Screw 13-16 x 1-5/8 in. hi-lo flat head	Yes	1 Day(s)	$0.95
19	R172483	Screw 13-16 x 1-5/8 in. hi-lo flat head	Yes	1 Day(s)	$0.95
20	R172605	Screw hole plug	Yes	1 Day(s)	$3.72
20	R172605	Screw hole plug	Yes	1 Day(s)	$3.72
