SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

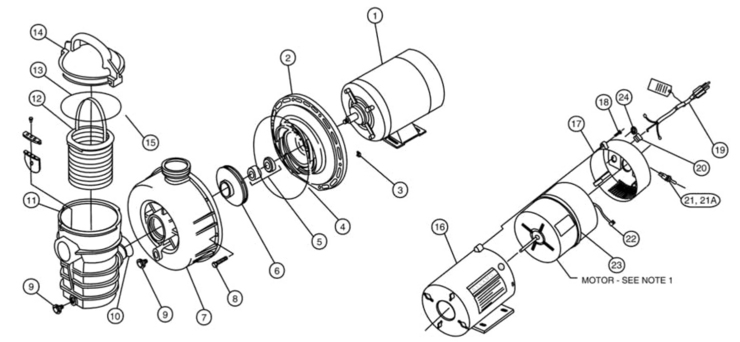

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Pentair
Model Name: Dynamo Pump

Pentair Dynamo-Pump replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 352256 Nut - 1 1/2 in. quick connect, 2 req. Yes 1 Day(s) $5.71

-

 354571 O-ring, 2 req. Yes 1 Day(s) $1.99

-

 155371 25 ft. cord and plug, CSA models No N/A N/A N/A

-

 79137800 3 ft. cord standard assy. Yes 1 Day(s) $34.03

-

 352245 Strain relief bushing for cords Yes 1 Day(s) $1.22

-

 155295 Photo sensor add-on, used on 3/4 & 1 hp only Yes 1 Day(s) $117.65

-

 350444 Motor switch assy., on/off Yes 1 Day(s) $27.29

2

 354632 Diffuser - 3/4 hp bracket Yes 1 Day(s) $61.24

2

 354633 Diffuser -1, 1 1/2 hp bracket Yes 1 Day(s) $61.24

3

 354542 Nut-10-24 s/s, 6req. Yes 1 Day(s) $0.90

4

 354634 O-ring - 3/16 in. bracket diffuser Yes 1 Day(s) $4.60

5

 354545 Seal - 5/8 in. mechanical Yes 1 Day(s) $13.05

6

 354552 Impeller - 3/4 hp Yes 1 Day(s) $16.86

6

 353002 Impeller - 1/2 hp Yes 1 Day(s) $20.72

6

 355122 Impeller - 1 hp Yes 1 Day(s) $19.57

7

 354630 Housing - body Yes 1 Day(s) $67.92

8

 354541 Screw 10-24-1 1/2 in. slotted hex, 6 req. Yes 1 Day(s) $1.22

9

 154481 Plug - 1/4 in. drain, 2 req. Yes 1 Day(s) $1.64

10

 273062 O-ring Yes 1 Day(s) $0.93

11

 354530 Pot Yes 1 Day(s) $60.15

12

 354548 Basket w/handle Yes 1 Day(s) $10.99

13

 354533 O-ring - lid Yes 1 Day(s) $5.15

14

 354531 Lid - universal Yes 1 Day(s) $32.64

15

 354103 Pot assy. Yes 1 Day(s) $129.77

16

 354621 Body - motor enclosure Yes 1 Day(s) $28.15

17

 354881 Cap -motor enclosure Yes 1 Day(s) $36.61

18

 154716 Screw - #10 self tapping Yes 1 Day(s) $0.41

19

 155371 Cord - 25 ft. No N/A N/A N/A

20

 41412700 Bushing connector Yes 1 Day(s) $6.12

21A

 356546 Switch - three position toggle (Hi/Low/Off) Yes 1 Day(s) $31.98

21

 155187 Switch -on/off toggle (CSA) Yes 1 Day(s) $12.55

22

 155193 Wire - 6 in. jumper Yes 1 Day(s) $3.68

23

 354658 Insulation - foam strip adhesive backing No N/A N/A N/A

24

 350024 Locknut, steel 1 1/2 in. Yes 1 Day(s) $0.50
