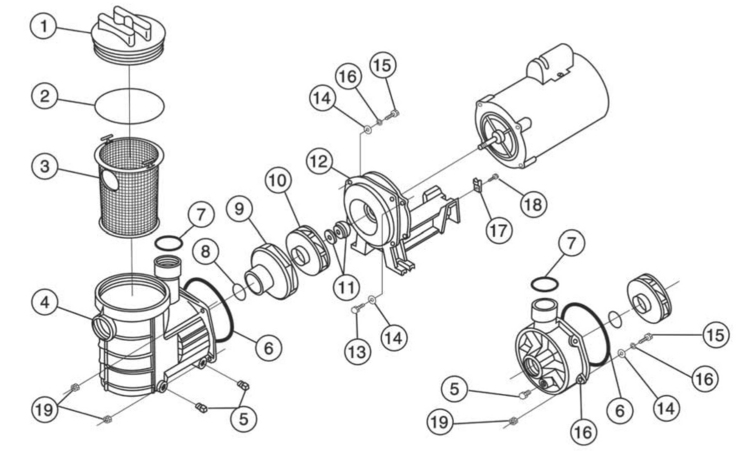

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Pentair

Model Name: Eagle Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	39200299	Lid, chemical resistant, clear	No	N/A	N/A	N/A
1	39200200	Lid, clear	Yes	1 Day(s)	$26.63
2	39204100	O-ring, lid	No	N/A	N/A	N/A
3	39200100	Basket	Yes	1 Day(s)	$23.23
4	39201700	Integral pot & volute 2 in. suction port	Yes	1 Day(s)	$205.65
4	39202100	Integral pot & volute 1 1/2 in. suction port	Yes	1 Day(s)	$196.58
5	98206400	Plug 1/4 in. with O-ring	Yes	1 Day(s)	$3.02
6	39200300	O-ring, volute	Yes	1 Day(s)	$11.65
8	39204800	Gasket	Yes	1 Day(s)	$11.74
9	39204700	Diffuser	Yes	1 Day(s)	$43.56
10	39251600	Imp, 2 hp, 50 cycle	Yes	1 Day(s)	$43.93
10	39251500	Imp, 1 1/2 hp, 50 cycle	Yes	1 Day(s)	$43.93
10	39251400	Imp, 1 hp, 50 cycle	Yes	1 Day(s)	$43.93
10	39251300	Imp, 3/4 hp, 50 cycle	Yes	1 Day(s)	$43.93
10	39251200	Imp, 1/2 hp, 50 cycle	Yes	1 Day(s)	$43.93
10	39200900	Imp., 2 hp	Yes	1 Day(s)	$43.93
10	39200800	Imp., 1 1/2 hp	Yes	1 Day(s)	$43.93
10	39200700	Imp., 1 hp	Yes	1 Day(s)	$43.93
10	39200600	Imp., 3/4 hp	Yes	1 Day(s)	$43.93
10	39200500	Imp., 1/2 hp	Yes	1 Day(s)	$43.93
12	39201000	Seal plate	Yes	1 Day(s)	$69.16
13	70429	Bolt, hex, 3/8-16 x 3/4 in.	Yes	1 Day(s)	$1.58
15	70430	Bolt, hex, 3/8-16 x 1 1/4 in.	Yes	1 Day(s)	$1.42
16	37413000	Nut	Yes	1 Day(s)	$1.29
17	39201300	Support, mtr.	No	N/A	N/A	N/A
18	98203000	Screw 13-16 x 3/4 in. high-low	Yes	1 Day(s)	$1.31
19	37413000	Nut, hex 3/8-16 in, volute to seal plate	Yes	1 Day(s)	$1.29
