SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

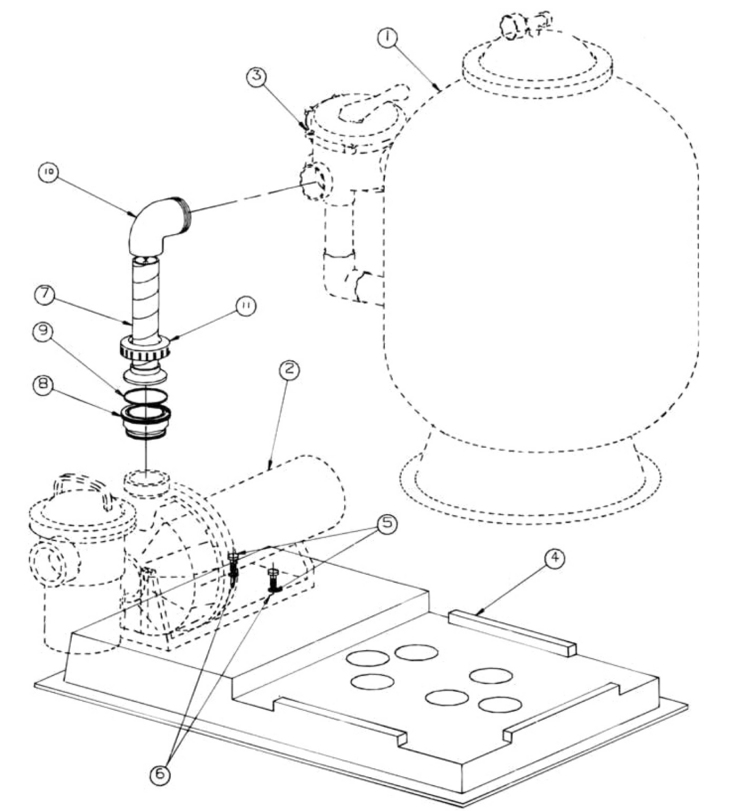

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Pentair
Model Name: Elevated Base Kit TR/NS/CH

Pentair Elevated-Base-Kit-TRNSCH replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

4

 154922 Platform base Yes 1 Day(s) $220.26

5

 354294 Hex head screw, 2 req. Yes 1 Day(s) $1.53

6

 154444 Washer, 2 req. No N/A N/A N/A

7

 271147 Piping assy. Yes 1 Day(s) $31.69

8

 355304 Quick connect adapter Yes 1 Day(s) $13.16

9

 274494 O-ring Yes 1 Day(s) $4.84

10

 152423 Elbow -s X thread No N/A N/A N/A

11

 274407 Nut Yes 1 Day(s) $13.08
