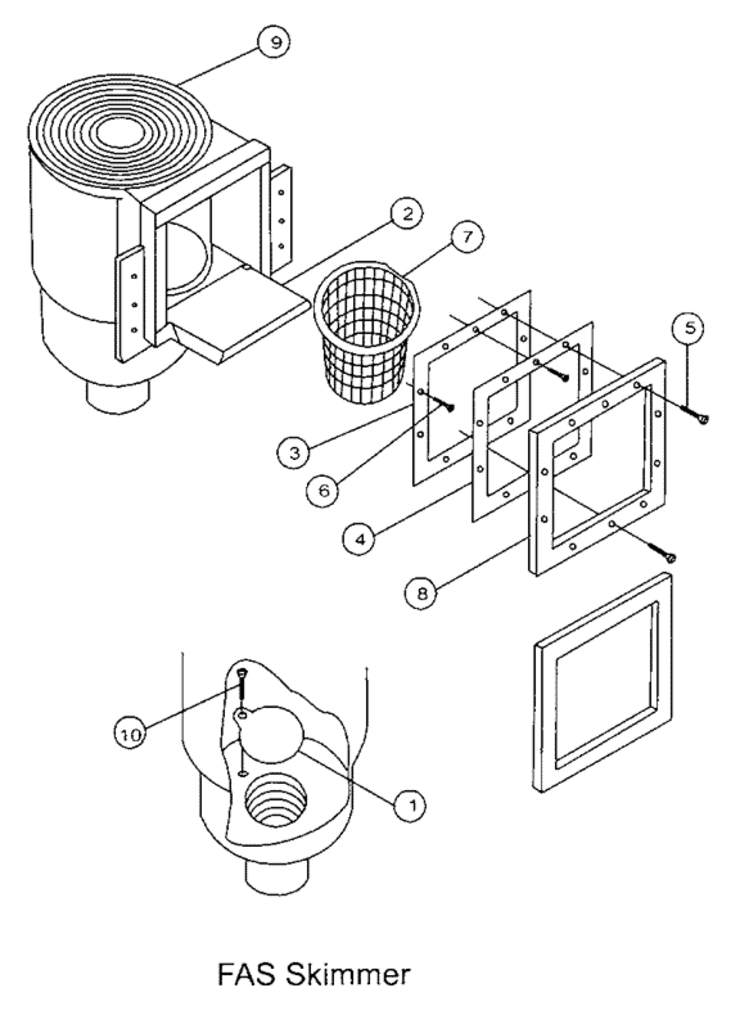

Here is the schematic view you requested:

Category: Skimmers

Manufacturer name: Pentair

Model Name: FAS Aboveground Skimmer



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	85004700	Lid for optional top access	Yes	1 Day(s)	$8.71
2	85003200	Flap weir	Yes	1 Day(s)	$20.88
3	85003300	Gasket, sealing rear (thick)	Yes	1 Day(s)	$4.06
4	85003400	Gasket, sealing front	No	N/A	N/A	N/A
5	85004000	Sealing frame	Yes	1 Day(s)	$7.67
6	98207200	Screw, sealing 13-16 x 1 1/4 in. high-low, XL	Yes	1 Day(s)	$1.26
6	98202900	Screw, s/s sealing phil. 13-16 x 1 in. high-low fh.	Yes	1 Day(s)	$1.08
7	98203000	Screw, s/s retainer slot. 13-16 x 3/4 in. high-low pph.	Yes	1 Day(s)	$1.31
8	85003900	Basket	Yes	1 Day(s)	$8.15
9	98204400	Screw, s/s 10-24 x 1/2 in. pph. For trimmer plate	Yes	1 Day(s)	$1.35
10	85009600	Plate, trimmer	Yes	1 Day(s)	$2.78
10	85002800	Plate, vacuum adapter	Yes	1 Day(s)	$2.78
10	85002900	Elbow for vacuum adapter plate	Yes	1 Day(s)	$9.23
10	85009700	Screw kit, std.	Yes	1 Day(s)	$11.96
10	85009800	Screw kit, extra long screws	Yes	1 Day(s)	$11.96
10	85017600	Pivot tab, for Flap weir	Yes	1 Day(s)	$0.70
