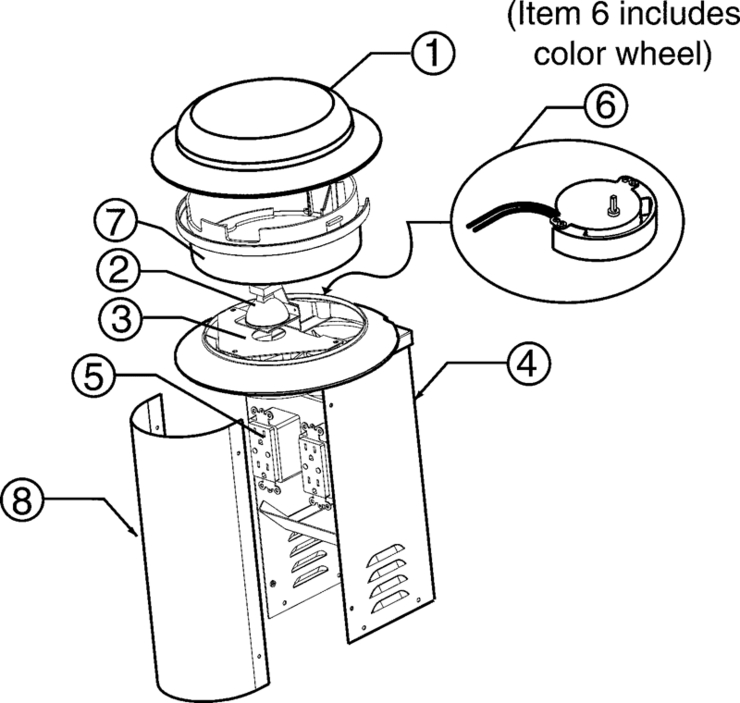

Here is the schematic view you requested:

Category: Lights and Niches

Manufacturer name: Pentair

Model Name: Fiberworks Photon Generator:



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	24502000	Lid, Photon Generator	Yes	1 Day(s)	$23.50
2	23500100	Bulb, 220W 19.7V PF220	Yes	1 Day(s)	$69.52
2	840040	Bulb, 250W 24V ELC	Yes	1 Day(s)	$64.35
3	24501100	Lamp socket assy.	Yes	1 Day(s)	$46.27
5	23507101	Module, X-10, includes mounting tape	Yes	1 Day(s)	$109.65
6	840185	Color wheel kit, SAm compatible	Yes	1 Day(s)	$228.32
7	840038	White window	Yes	1 Day(s)	$37.74
8	24000300	Wireless two button controller (upgrade for X-10 units only)	Yes	1 Day(s)	$112.92
8	24000200	Plug-in four function controller	Yes	1 Day(s)	$115.21
8	23506100	Screws for splash guard	Yes	1 Day(s)	$0.86
8	840161	Thermostat, PG	Yes	1 Day(s)	$34.06
8	840160	Fan, PG	Yes	1 Day(s)	$77.51
8	23505600	Fuse, 3 amp	Yes	1 Day(s)	$4.69
8	24002000	Ferrule assy, (up to 600 fibers)	Yes	1 Day(s)	$47.18
8	840162	Cover, splash guard	Yes	1 Day(s)	$55.62
8	24000600	Photon Generator black-out window	Yes	1 Day(s)	$17.94
