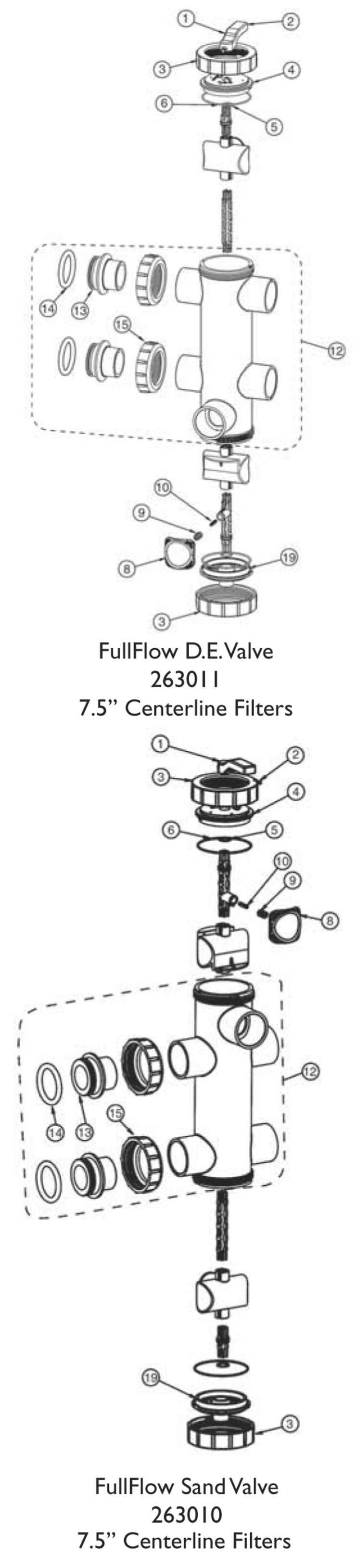

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: FullFlow Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	278006	Handle	No	N/A	N/A	N/A
2	72536	Screw	Yes	1 Day(s)	$5.44
3	278020	Cap, nut	No	N/A	N/A	N/A
4	278021	Cap, insert - top	Yes	1 Day(s)	$7.45
5	192039	O-ring #2-116 Bunan	Yes	1 Day(s)	$0.14
6	275300	O-ring #2-154 Bunan 70	No	N/A	N/A	N/A
8	278019	Seal, waste	Yes	1 Day(s)	$12.03
9	271065	Spring, .42 o.d.	Yes	1 Day(s)	$2.33
10	270006	Spring, .24 o.d.	Yes	1 Day(s)	$3.68
12	270007	Body, assy., 7.5 in. Sand	Yes	1 Day(s)	$73.47
12	270008	Body assy., 7.5 in. D.E.	Yes	1 Day(s)	$73.47
12	270010	Body assy., 8 in. D.E.	No	N/A	N/A	N/A
13	274430	Adapter, bulkhead (a)	No	N/A	N/A	N/A
14	274494	O-ring, adapter	Yes	1 Day(s)	$4.84
15	274440	Nut, adapter (a)	Yes	1 Day(s)	$9.44
19	278022	Cap insert, bottom	Yes	1 Day(s)	$7.45
20	270011	Shaft assy consists of items: 18, 17, 16, 11, 10, 9, 8, 7 and two of #5	Yes	1 Day(s)	$45.12
