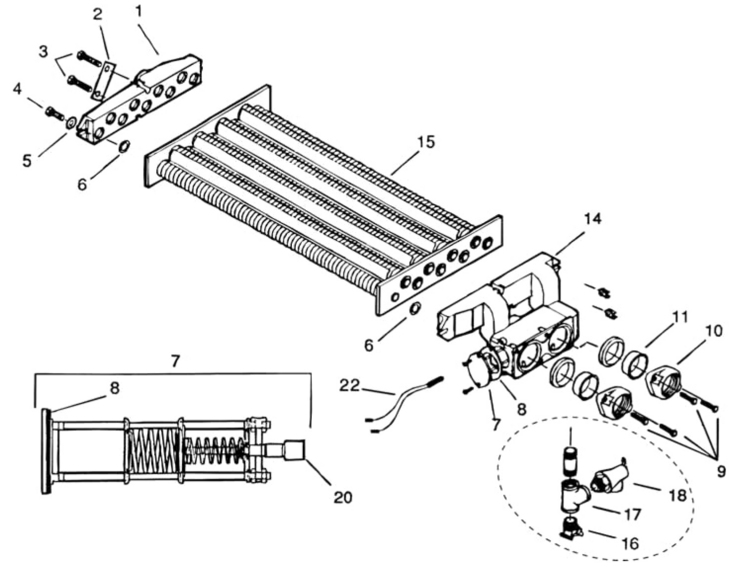

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: Heat Exchanger for MiniMax Models (1991-1997)



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	075285	Assy. bag quick flange ASME heaters	No	N/A	N/A	N/A
1	070994	Return header	No	N/A	N/A	N/A
2	072180	Bracket washer	No	N/A	N/A	N/A
3	073739	Bolt 3/8-16 x 2 in. plt.	No	N/A	N/A	N/A
4	070416	Bolt hh. 3/8-16 x 1 1/2 in. s/s	No	N/A	N/A	N/A
5	072180	Washer 3/8 in. i.d. -1 in. o.d.	No	N/A	N/A	N/A
6	070951	Tube seal gasket	No	N/A	N/A	N/A
7	471424	Flow valve assy.	Yes	1 Day(s)	$88.37
8	074015	Gasket flow valve	No	N/A	N/A	N/A
9	075492	Bolt 3/8 -16 x 2 1/2"" in. plt.	No	N/A	N/A	N/A
10	070903	Flange in/out 2 in. brass (a)	No	N/A	N/A	N/A
10	075284	Quick flange kit (b)	No	N/A	N/A	N/A
10	075283	Flange only	No	N/A	N/A	N/A
11	070544	Bushing in/out 2 in. Lexan	No	N/A	N/A	N/A
12	071895	Sleeve rubber in/out	No	N/A	N/A	N/A
13	071017	Hi-Limit 135/120	No	N/A	N/A	N/A
14	070985	Main header in/out	No	N/A	N/A	N/A
15	470369	Assy., w/ heads 400	Yes	1 Day(s)	$1658.88
15	470368	Assy., w/ heads 350	Yes	1 Day(s)	$1513.50
15	470367	Assy., w/ heads 300	Yes	1 Day(s)	$1541.64
15	470366	Assy., w/ heads 250	Yes	1 Day(s)	$1470.45
15	470365	Assy., w/ heads 200	Yes	1 Day(s)	$1414.36
15	470364	Assy., w/ heads 150	Yes	1 Day(s)	$1350.91
15	074074	Assy., w/o heads 400, 30 Ibs.	No	N/A	N/A	N/A
15	075628	Assy., w/o heads 200, 20 Ibs.	No	N/A	N/A	N/A
15	074452	Assy., w/o heads 150, 17 Ibs.	No	N/A	N/A	N/A
15	074451	Assy., w/o heads 250, 22 Ibs.	No	N/A	N/A	N/A
15	075629	Assy., w/o heads 300, 25 Ibs.	No	N/A	N/A	N/A
15	075630	Assy., w/o heads 350, 28 Ibs.	No	N/A	N/A	N/A
16	072134	Valve boiler drain 3/4 in.	No	N/A	N/A	N/A
17	071983	Tee 3/4. in. brass - ASME or local code	No	N/A	N/A	N/A
18	072138	Valve relief 3/4 in. 50# - ASME or local code	No	N/A	N/A	N/A
20	470178	Power element	Yes	1 Day(s)	$34.53
22	070274	Sensor bulb	No	N/A	N/A	N/A
