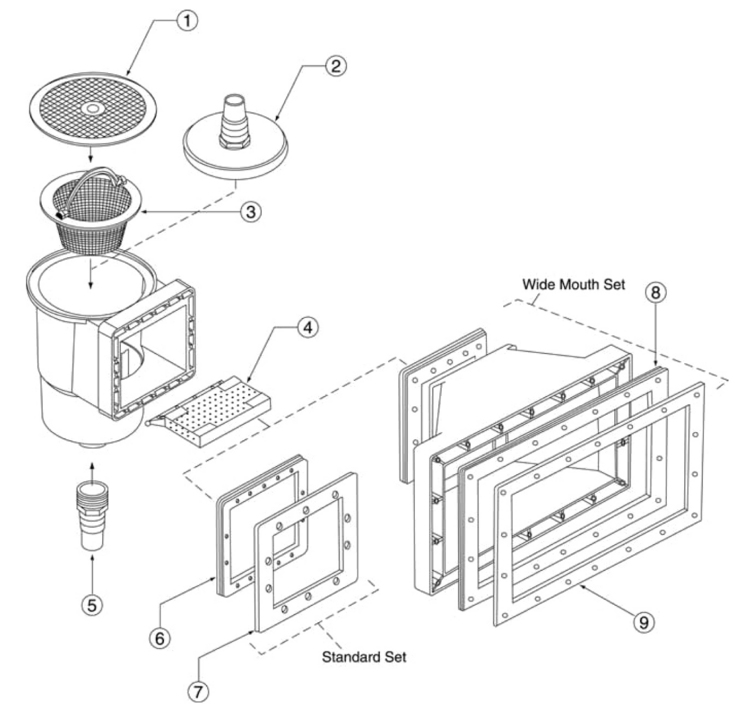

Here is the schematic view you requested:

Category: Skimmers

Manufacturer name: Pentair

Model Name: HydroSkim Skimmers



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	513333	Lid -white	Yes	1 Day(s)	$2.78
1	513334	Lid - black	No	N/A	N/A	N/A
1	513335	Lid - grey	Yes	1 Day(s)	$2.78
2	513351	Vacuum plate	Yes	1 Day(s)	$3.07
3	513330	Basket	Yes	1 Day(s)	$2.78
4	513352	Weir door	Yes	1 Day(s)	$2.78
6	513331	Gasket	Yes	1 Day(s)	$2.10
7	513341	Sealing frame - grey	Yes	1 Day(s)	$3.27
7	513340	Sealing frame - black	No	N/A	N/A	N/A
7	513339	Sealing frame - white	Yes	1 Day(s)	$3.27
8	513332	Gasket - wide mouth	Yes	1 Day(s)	$3.45
9	513345	Sealing frame - wide mouth - white	Yes	1 Day(s)	$5.44
9	513346	Sealing frame - wide mouth - black	No	N/A	N/A	N/A
9	513347	Sealing frame - wide mouth - grey	Yes	1 Day(s)	$5.44
