Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Pentair
Model Name: Hydropump

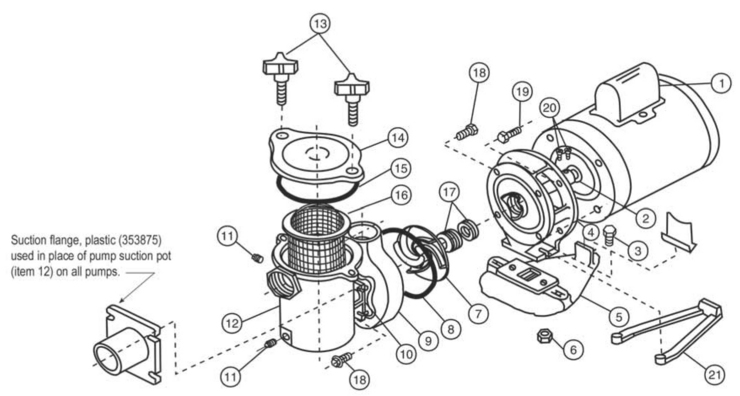

Pentair Hydropump replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

356400 1/2F, 3/4A std. CFR key 115/230, 23 lbs. Yes 1 Day(s) $167.94

1

356401 3/4F, 1A std. CFR key 115/230, 23 lbs. Yes 1 Day(s) $185.07

1

356402 1F, 1 1/2A std. CFR key 115/230, 25 lbs. No N/A N/A N/A

1

356403 1 1/2F, 2A std. CFR key 115/230, 33 lbs. Yes 1 Day(s) $263.96

1

356404 2F, 2 1/2A std. CFR key 230 only, 31 lbs. Yes 1 Day(s) $626.51

1

356405 3F std. CFR key 230 only, 40 lbs. Yes 1 Day(s) $846.18

2

353750 Extension - bronze shaft Yes 1 Day(s) $24.58

3

354294 Screw - 3/8 -16 x 1 1/4 in. cap, 2 req. Yes 1 Day(s) $1.53

4

353775 Bracket seal (a) Yes 1 Day(s) $60.61

5

354894 Base - tri-pod pump Yes 1 Day(s) $20.11

6

154445 Nut-3/8 - 16 hex, 2 req. Yes 1 Day(s) $1.22

7

353043 Impeller- 1/2F, 3/4A (white) (b) Yes 1 Day(s) $38.49

7

353044 Impeller - 3/4F, 1A(no color) (b) Yes 1 Day(s) $38.49

7

353013 Impeller - 1F, 1 1/2A (yellow) (b) Yes 1 Day(s) $38.49

7

353049 Impeller - 1 1/2F, 2A (green) (b) Yes 1 Day(s) $38.49

7

353050 Impeller - 2F, 2 1/2A (red) (b) Yes 1 Day(s) $38.49

7

353220 Impeller - 3F (blue) (b) Yes 1 Day(s) $40.27

8

352626 O-ring - volute Yes 1 Day(s) $4.40

9

353912 Volute No N/A N/A N/A

10

192323 O-ring Yes 1 Day(s) $6.17

11

154481 Plug 1/4 in. DRAIN PLUG BLK Yes 1 Day(s) $1.64

12

354125 Pot - 590 plastic strainer Yes 1 Day(s) $105.01

12

354127 Pot - 700 plastic strainer Yes 1 Day(s) $222.54

13

354280 Knob - pot, 2 req. Yes 1 Day(s) $9.89

14

353625 Lid - 590 clear plastic Yes 1 Day(s) $36.88

14

353525 Lid - 700 clear plastic Yes 1 Day(s) $50.95

14

354114 Lid - 700 strainer pot Baquacil Yes 1 Day(s) $50.95

15

352600 O-ring - 700 lid Yes 1 Day(s) $4.85

15

352602 O-ring - 590 lid Yes 1 Day(s) $3.77

16

352656 Basket w/handle - 590 plastic Yes 1 Day(s) $8.92

16

352670 Basket w/handle - 700 plastic Yes 1 Day(s) $21.51

17

354001 Seal - 3/4 in. mechanical, PS201 Yes 1 Day(s) $13.29

18

354265 Screw-5/16-18 hex wsh.hd, 8 req. Yes 1 Day(s) $1.22

19

354290 Screw - 3/8 -16 x 1 in. s/s cap, 4 req. Yes 1 Day(s) $1.51

20

354256 Screw - 1/4 - 20 x 3/8 in. s/s, 2 req. Yes 1 Day(s) $1.02

21

154909 Outrigger - motor Yes 1 Day(s) $7.31
