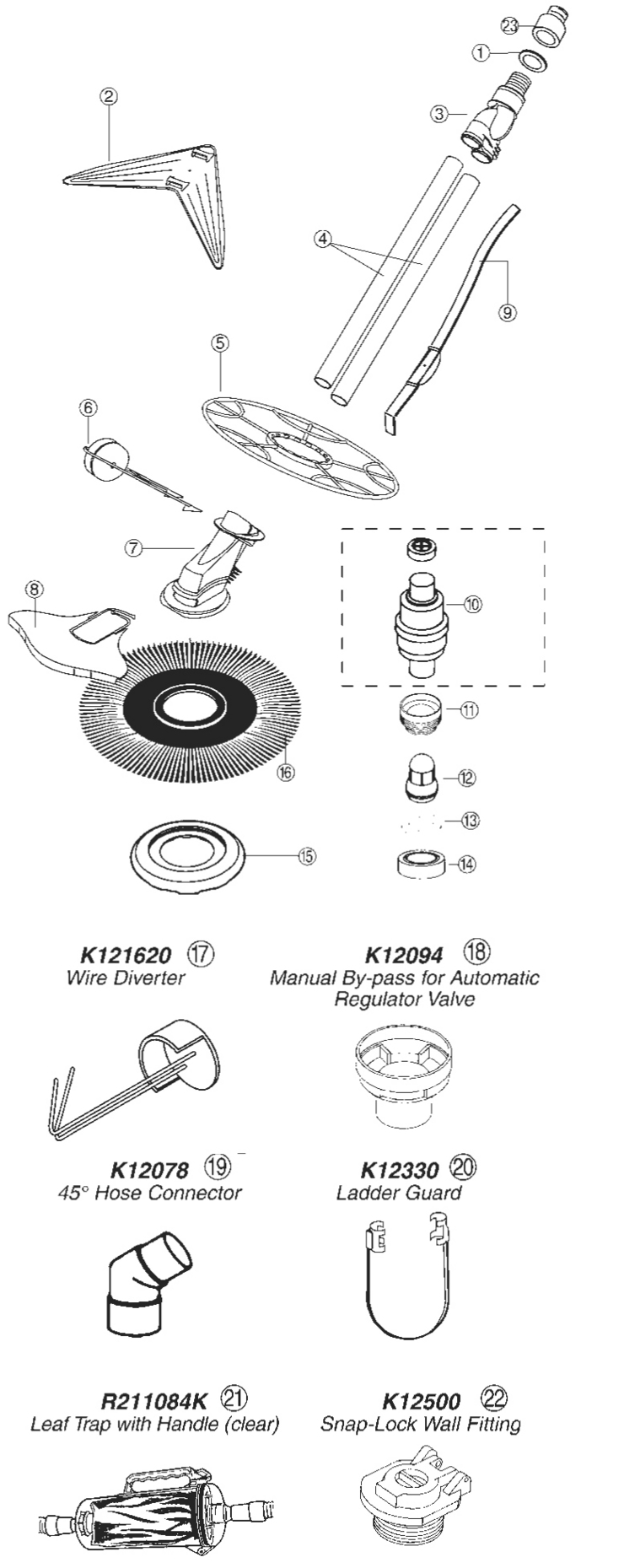

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Pentair

Model Name: Kreepy Kadet



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	KK50656	Complete Vacuum Hose Assembly - Blue (32 ft. total length) incl. 11 Sections Male/Female Hose (32") & 1 Section Female/Female Ho	No	N/A	$123.64
-	KK50656	Complete Vacuum Hose Assembly - Blue (32 ft. total length) incl. 11 Sections Male/Female Hose (32") & 1 Section Female/Female Ho	No	N/A	$123.64
2	KK121404	Step Deflector Wing only (not for use in vinyl liner pools)	Yes	1 Day(s)	$15.19
3	KK12653	Swivel Head Assembly	Yes	1 Day(s)	$38.07
3	KK12653	Swivel Head Assembly	Yes	1 Day(s)	$38.07
4	KK12654DB	Drive Tube top/bottom	Yes	1 Day(s)	$11.34
5	KK12658	Guide Wheel	Yes	1 Day(s)	$23.55
6	KK12656A	Float Assembly	Yes	1 Day(s)	$51.51
7	KK12664	Main body (Without Flapper)	Yes	1 Day(s)	$200.89
8	KK12661	Skirt	Yes	1 Day(s)	$24.24
9	KK12655W	Bumper Strap w/Weight	Yes	1 Day(s)	$27.07
16	KK12667	Pleated Seal	Yes	1 Day(s)	$77.54
23	KK12653C	Swivel Cone and Bearing Washer	Yes	1 Day(s)	$5.74
23	KK12653C	Swivel Cone and Bearing Washer	Yes	1 Day(s)	$5.74
