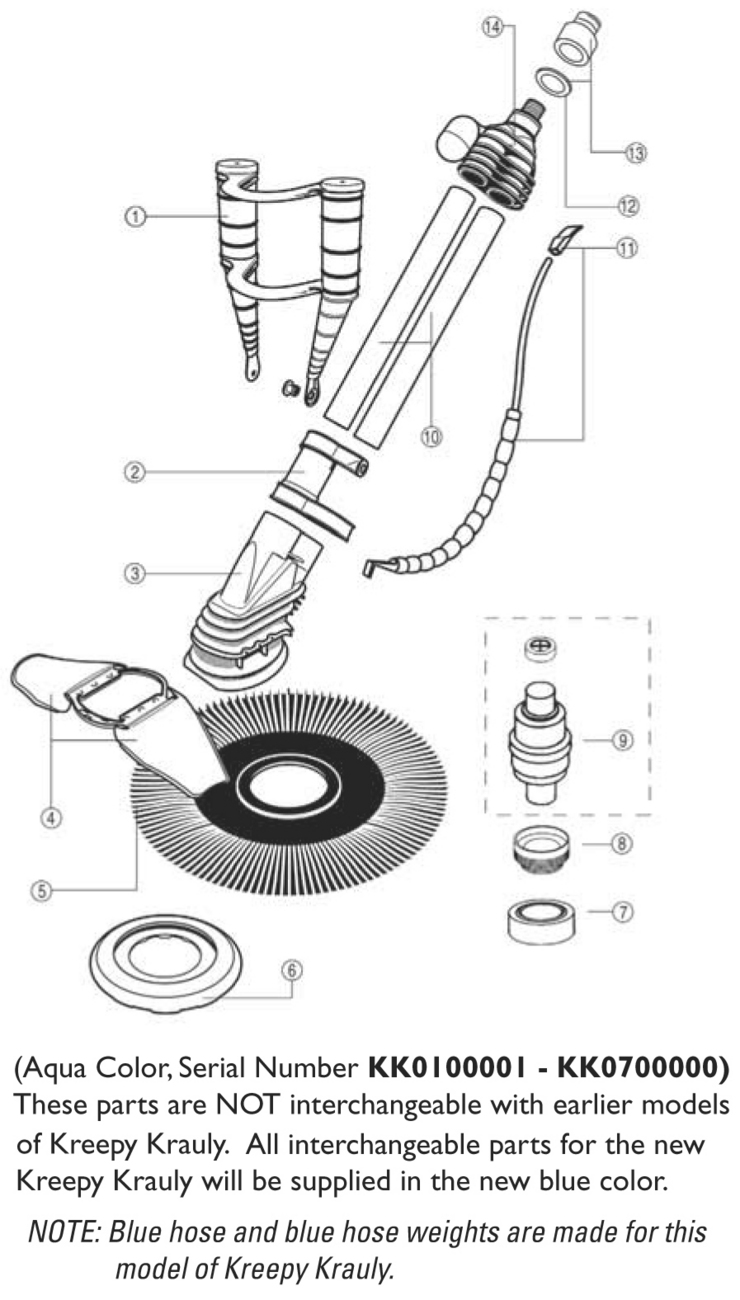

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Pentair

Model Name: Kreepy Krauly 1994-1999



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	KK12057	Dive Float with Clips	Yes	1 Day(s)	$47.43
2	KK12058	Weight Holder	Yes	1 Day(s)	$42.85
3	KK12055	Main Body With Exchange Only (Excludes Flapper)	Yes	1 Day(s)	$212.20
4	KK12060	Wing Set	Yes	1 Day(s)	$28.47
5	KK12894	Inground Seal	Yes	1 Day(s)	$77.54
9	KK12062	Automatic Regulator Valve (aqua) and cap (not interchangeable with 2000 model)	Yes	1 Day(s)	$56.65
9	KK12062	Automatic Regulator Valve (aqua) and cap (not interchangeable with 2000 model)	Yes	1 Day(s)	$56.65
9	KK12062	Automatic Regulator Valve (aqua) and cap (not interchangeable with 2000 model)	Yes	1 Day(s)	$56.65
10	KK12063	Drive Tube Top/Bottom	Yes	1 Day(s)	$14.88
11	KK12061	Roller Bumper Strap (includes roller bumper and end clip)	Yes	1 Day(s)	$27.07
13	KK12056C	Swivel Cone and Bearing	Yes	1 Day(s)	$12.74
14	KK12056	Swivel Head Assembly	Yes	1 Day(s)	$42.85
