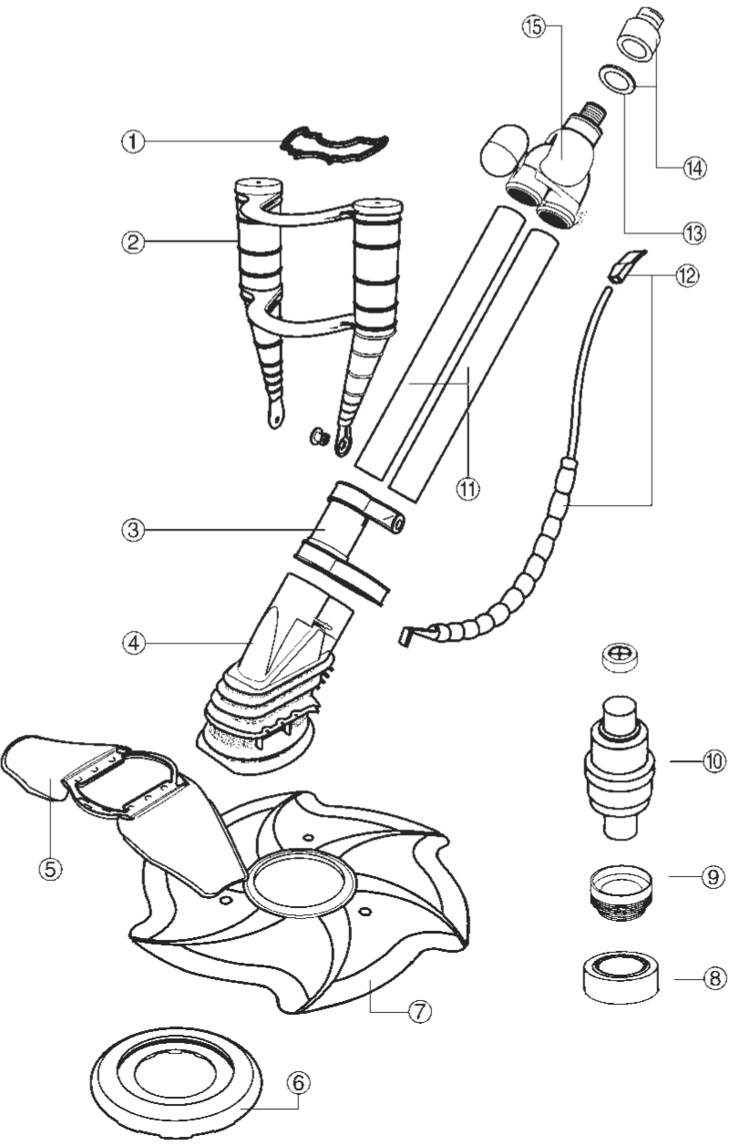

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Pentair

Model Name: Kreepy Krauly 2000



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	KK12164	Dive Float Restrictor	Yes	1 Day(s)	$7.26
2	KK12157	Dive Float With Clips	Yes	1 Day(s)	$54.19
3	KK12158	Weight Holder	Yes	1 Day(s)	$45.84
4	KK12155	Main Body With Exchange Only	Yes	1 Day(s)	$212.20
5	KK12160	Wing Set	Yes	1 Day(s)	$28.47
6	KK12059	Foot Pad	Yes	1 Day(s)	$22.12
6	KK12059	Foot Pad	Yes	1 Day(s)	$22.12
6	KK12059	Foot Pad	Yes	1 Day(s)	$22.12
6	KK12059	Foot Pad	Yes	1 Day(s)	$22.12
7	KK12895	Starfish Seal (for concrete pools only, not Interchangeable with 1994-1999 model)	Yes	1 Day(s)	$77.54
8	KK12054	Hose Weight	Yes	1 Day(s)	$12.39
8	KK12054	Hose Weight	Yes	1 Day(s)	$12.39
8	KK12054	Hose Weight	Yes	1 Day(s)	$12.39
8	KK12054	Hose Weight	Yes	1 Day(s)	$12.39
9	KK12079	Threaded Compression Adaptor	Yes	1 Day(s)	$6.89
9	KK12079	Threaded Compression Adaptor	Yes	1 Day(s)	$6.89
9	KK12079	Threaded Compression Adaptor	Yes	1 Day(s)	$6.89
9	KK12079	Threaded Compression Adaptor	Yes	1 Day(s)	$6.89
10	KK12004	Automatic Regulator Valve (white) and cap (not Interchangeable with 1994-1999 model)	Yes	1 Day(s)	$56.65
10	KK12004	Automatic Regulator Valve (white) and cap (not Interchangeable with 1994-1999 model)	Yes	1 Day(s)	$56.65
11	KK12163	Drive Tube Top/Bottom	Yes	1 Day(s)	$14.88
12	KK12161	Roller Bumper Strap (includes roller bumper and end clip)	Yes	1 Day(s)	$27.07
13	KK12087	Bearing Washer	Yes	1 Day(s)	$3.99
13	KK12087	Bearing Washer	Yes	1 Day(s)	$3.99
13	KK12087	Bearing Washer	Yes	1 Day(s)	$3.99
13	KK12087	Bearing Washer	Yes	1 Day(s)	$3.99
14	KK12156C	Swivel Cone and Bearing	Yes	1 Day(s)	$12.74
15	KK12156	Swivel Cone Head Assembly	Yes	1 Day(s)	$49.38
