SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

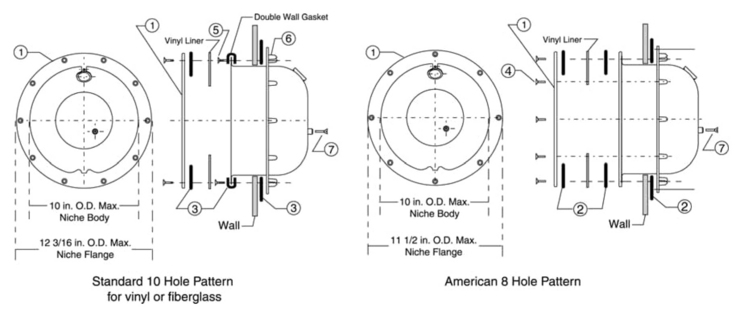

Here is the schematic view you requested:

Category: Lights and Niches
Manufacturer name: Pentair
Model Name: Large Stainless Steel Niches

Pentair Large-Stainless-Steel-Niches replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 79200400 Gasket, set, std. 10 hole, w/o double wall gasket Yes 1 Day(s) $36.32

-

 79226300 13/8 in. Screw kit, niche, std. 10 hole, w/ double wall gasket Yes 1 Day(s) $8.24

-

 79205400 1 1/4 in Screw kit, niche, std. 10 hole, w/o double wall gasket Yes 1 Day(s) $20.36

-

 79205300 1 in. Screw kit, niche, std. 10 hole, w/ double wall gasket Yes 1 Day(s) $18.37

-

 79205200 Screw kit, niche, American 8 hole, extra long Yes 1 Day(s) $20.36

-

 79205100 Screw kit, niche, American 8 hole Yes 1 Day(s) $20.36

-

 79211600 Plaster ring, (concrete), brass Yes 1 Day(s) $31.96

1

 79200100 Liner-sealing ring, American 8 hole Yes 1 Day(s) $84.33

1

 79200200 Liner-sealing ring, std. 10 hole Yes 1 Day(s) $71.80

2

 79200300 Gasket, set, American 8 hole pattern Yes 1 Day(s) $27.58

3

 79200700 Gasket, set, std. 10 hole pattern, w/ double wall gasket Yes 1 Day(s) $50.85

4

 98202700 Screw, sealing 1/4-20 x 1-1/4 in. Phillips flat head Yes 1 Day(s) $2.30

4

 98202600 Screw, sealing 1/4-20 x 1 in. Phillips flat head Yes 1 Day(s) $2.26

5

 98204200 Screw, retainer, fillister head, 12-24 x 3/4 in. Yes 1 Day(s) $1.11

6

 634595 Back-up ring, std.10 hole pattern No N/A N/A N/A

7

 98204400 Screw, grounding 10-24 x 1/2 in. Yes 1 Day(s) $1.35
