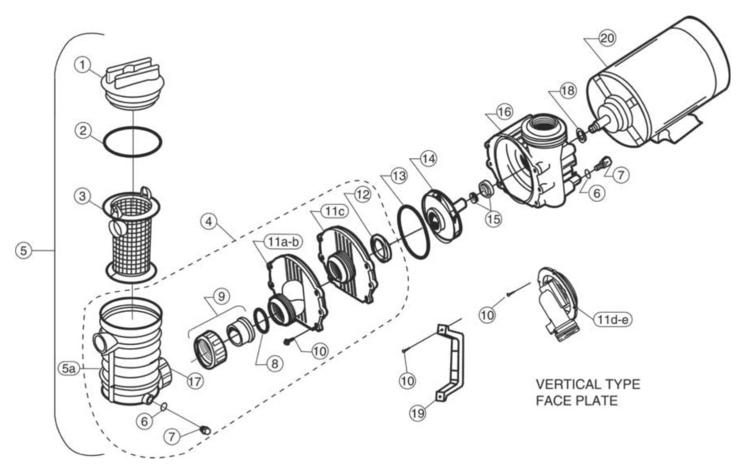

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Pentair

Model Name: Maxim Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	79137800	Cord assy., 25 ft. with std. plug	Yes	1 Day(s)	$34.03
-	39104400	Insert plate, self drain pump	No	N/A	N/A	N/A
1	39101199	Lid, clear, chemical resistant	Yes	1 Day(s)	$35.91
1	39101100	Lid, clear	Yes	1 Day(s)	$37.55
2	39101900	O-ring	Yes	1 Day(s)	$14.11
3	39101200	Basket	Yes	1 Day(s)	$40.82
4	39106800	Pot, union nut, face plate, wear ring assy.	Yes	1 Day(s)	$93.38
5a	39104800	Pot, only	Yes	1 Day(s)	$22.23
5	39106900	Pot assy., complete	Yes	1 Day(s)	$60.81
6	57006500	O-ring	Yes	1 Day(s)	$1.62
7	98206400	Plug - 1/4 in. with O-ring	Yes	1 Day(s)	$3.02
9	46802000	Swivel union, assy.	Yes	1 Day(s)	$8.69
10	98215200	Nut, hex, 10-24	Yes	1 Day(s)	$2.14
10	98210400	Screw, face plate, 8-32 x 5/8 in., S series	Yes	1 Day(s)	$2.52
10	98215000	No. 10 lock washer, internal star	No	10 Day(s)	$2.14
10	98215400	Screw, face plate, 10-24 x 7/8 in., C series	Yes	1 Day(s)	$2.19
11a	39806000	Face plate center, self-drain	No	N/A	N/A	N/A
11b	39502500	Face plate side, self-drain	Yes	1 Day(s)	$52.16
11c	39502400	Face plate, booster	Yes	1 Day(s)	$24.47
11d	39105801	Face plate, vertical 180 deg.	Yes	1 Day(s)	$60.15
11e	39105802	Face plate, vertical	Yes	1 Day(s)	$60.15
12	39701800	Wear ring, 1/2 thru 1 1/2 hp (a)	Yes	1 Day(s)	$6.15
13	39101500	O-ring, volute	Yes	1 Day(s)	$14.44
14	39153400	Imp., 1 1/2 hp, 50 cycle	Yes	1 Day(s)	$39.99
14	39153500	Imp., 2 hp	Yes	1 Day(s)	$30.27
14	39104600	Imp., 1/2 hp	Yes	1 Day(s)	$44.91
14	39153100	Imp., 1/2 hp, 50 cycle	Yes	1 Day(s)	$40.37
14	39153200	Imp., 3/4 hp, 50 cycle	Yes	1 Day(s)	$46.60
14	39153400	Imp., 1 1/2 hp, 50 cycle	Yes	1 Day(s)	$39.99
14	39153100	Imp., 1/2 hp, 50 cycle	Yes	1 Day(s)	$40.37
14	39153200	Imp., 3/4 hp, 50 cycle	Yes	1 Day(s)	$46.60
14	39153300	Imp., 1 hp, 50 cycle	Yes	1 Day(s)	$31.04
15	39701200	Seal assy., PS 1000	Yes	1 Day(s)	$22.29
16	39102503	Volute, S series	Yes	1 Day(s)	$50.88
16	39104900	Volute, C series	Yes	1 Day(s)	$56.25
18	39102100	Slinger	Yes	1 Day(s)	$1.13
19	39101800	Bracket, vertical pump	Yes	1 Day(s)	$19.52
20	-	Pump motor - See Pumps Chapter	No	N/A	N/A	N/A
