SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

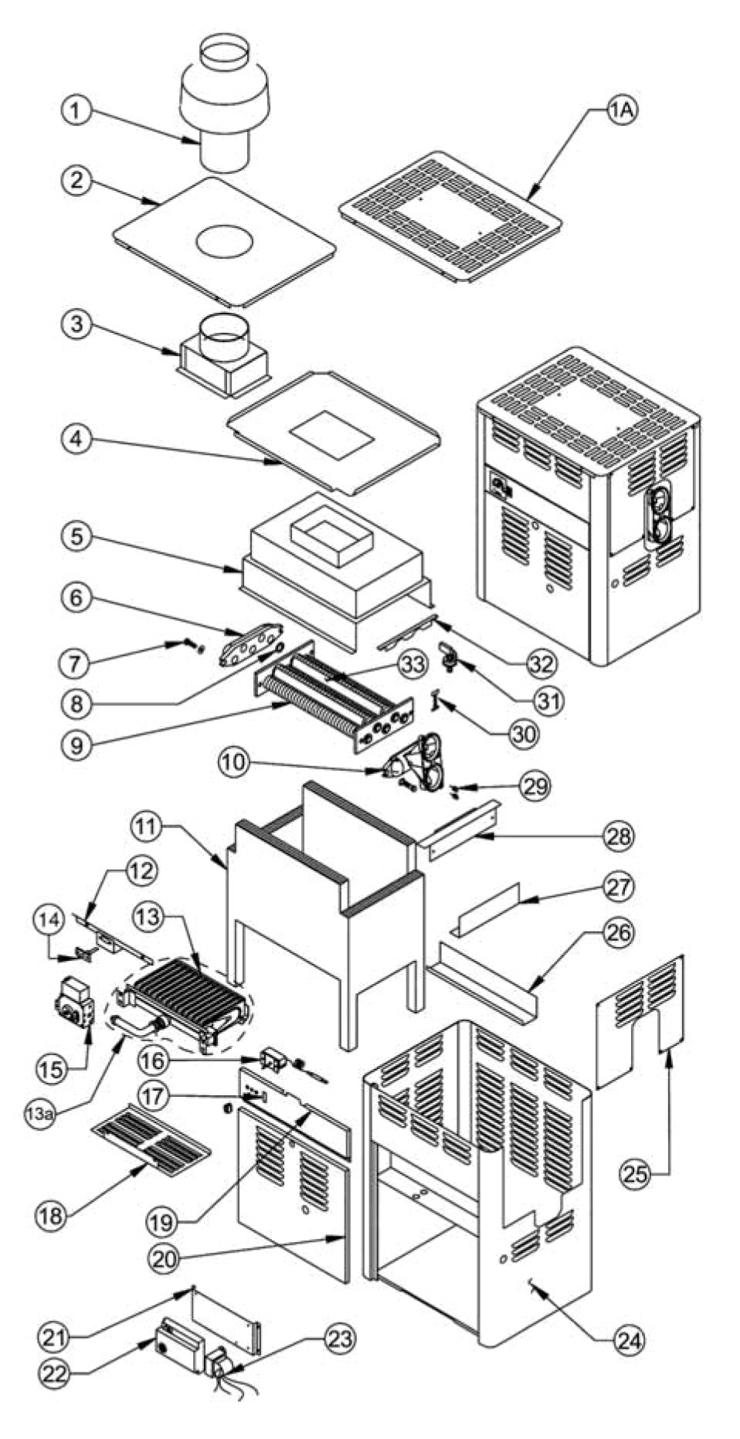

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Pentair
Model Name: MiniMax 75 & 100 Series

Pentair MiniMax-75-100-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 072169 Washer 3/8 i.d. No N/A N/A N/A

-

 471092 Hi-tension ignition cable Yes 1 Day(s) $13.29

-

 072136 Valve drain 1/4 NPT No N/A N/A N/A

-

 075459 Presslite Piezo igniter assy. Millivolt No N/A N/A N/A

-

 470414 Knob stopper Yes 1 Day(s) $4.81

-

 470184 Knob Yes 1 Day(s) $7.38

-

 471201 Kit wiring MMX 100 Millivolt Yes 1 Day(s) $58.89

-

 471083 Quick-flange II kit for 1 1/2 in. thd. Connection Yes 1 Day(s) $31.22

-

 075284 Accessory Bag No N/A N/A N/A

-

 075284 Accessory Bag No N/A N/A N/A

-

 471202 Kit wiring MMX 100 DSI Yes 1 Day(s) $69.25

-

 071515 Thermopile generator No N/A N/A N/A

-

 471238 Pilot Pro. Millivolt No N/A N/A N/A

-

 471239 Pilot Nat gas Millivolt No N/A N/A N/A

-

 070544 Rubber bushing, 2 in. i.d. No N/A N/A N/A

-

 471221 Pilot bracket/shield, Millivolt Yes 1 Day(s) $7.90

-

 471260 Manifold Yes 1 Day(s) $13.16

-

 471138 Rod flow valve No N/A N/A N/A

-

 471139 Spring flow valve No N/A N/A N/A

-

 471140 Plug flow valve No N/A N/A N/A

-

 471141 Plunger flow valve No N/A N/A N/A

-

 075173 Fusible link No N/A N/A N/A

1

 471187 Indoor draft hood kit consisting of indoor draft hood (471198) and items 2 & 3 Yes 1 Day(s) $184.07

1A

 471213 Outdoor top Yes 1 Day(s) $72.66

2

 471075 Indoor top (cover) Yes 1 Day(s) $47.92

3

 471214 Indoor stack adapter No N/A N/A N/A

4

 471069 Middle top Yes 1 Day(s) $35.33

5

 471059 Flue Collector No N/A N/A N/A

6

 471096 Return header No N/A N/A N/A

7

 471200 Bolt 3/8 x 16 UNC x 3/4 Yes 1 Day(s) $0.90

8

 070951 Rubber seal tube No N/A N/A N/A

9

 471093 Heat exchanger less heads Yes 1 Day(s) $220.28

10

 471094 Main header (inlet/outlet) Yes 1 Day(s) $130.76

11

 471061 Insulation, front Yes 1 Day(s) $23.99

11

 471062 Insulation, back Yes 1 Day(s) $22.35

11

 471063 Insulation, ends Yes 1 Day(s) $17.04

12

 471058 Ignitor electrode bracket Yes 1 Day(s) $19.84

13a

 471077 Burner tray assy, (complete) Pro. DSI Yes 1 Day(s) $418.96

13

 471122 Burner Nat. gas Yes 1 Day(s) $186.83

13a

 471219 Burner tray assy, (complete) Nat. gas Millivolt Yes 1 Day(s) $544.96

13a

 471236 Burner tray assy, (complete) Pro. Millivolt Yes 1 Day(s) $544.96

13a

 471076 Burner tray assy, (complete) Nat. Gas DSI Yes 1 Day(s) $418.96

13

 471850 Burner (75) Nat. gas No N/A N/A N/A

13

 471136 Burner Pro. Yes 1 Day(s) $186.83

14

 471090 Ignitor electrode Yes 1 Day(s) $28.44

15

 471088 Gas valve-Nat gas DSI Yes 1 Day(s) $159.09

15

 471089 Gas valve-Pro. DSI Yes 1 Day(s) $159.09

15

 471192 Gas valve-Nat, gas Millivolt Yes 1 Day(s) $279.55

15

 072125 Gas valve-Pro. Millivolt No N/A N/A N/A

15

 471436 Gas valve-Nat gas Millivolt-SIT Yes 1 Day(s) $194.12

15

 471435 Gas valve-Pro. Millivolt-SIT Yes 1 Day(s) $194.12

16

 471431 Thermostat (electronic) - direct spark models Yes 1 Day(s) $88.37

16

 072022 Thermostat - Millivolt models No N/A N/A N/A

17

 471128 On/off switch S.P.S.T. Yes 1 Day(s) $4.33

18

 471070 Heat shield burner tray No N/A N/A N/A

19

 471078 Control panel assy. Yes 1 Day(s) $152.43

20

 471067 Door assembly Yes 1 Day(s) $53.77

21

 471159 Control bracket No N/A N/A N/A

22

 471091 Ignition control DSI Yes 1 Day(s) $152.27

23

 471360 Transformer w/circuit MMX No N/A $46.95

25

 471071 Inspection panel Yes 1 Day(s) $12.08

26

 471169 Burner tray back support No N/A N/A N/A

27

 471166 Burner tray side support Yes 1 Day(s) $7.54

28

 471164 Heat exchanger support brackets Yes 1 Day(s) $12.98

29

 071017 Hi-limit safety switch No N/A N/A N/A

30

 471095 Flow valve, assy. Yes 1 Day(s) $56.93

31

 471097 Pressure switch Yes 1 Day(s) $25.80

32

 471064 Baffle hold down bracket Yes 1 Day(s) $5.87

33

 471065 Flue baffle Yes 1 Day(s) $3.52
