SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

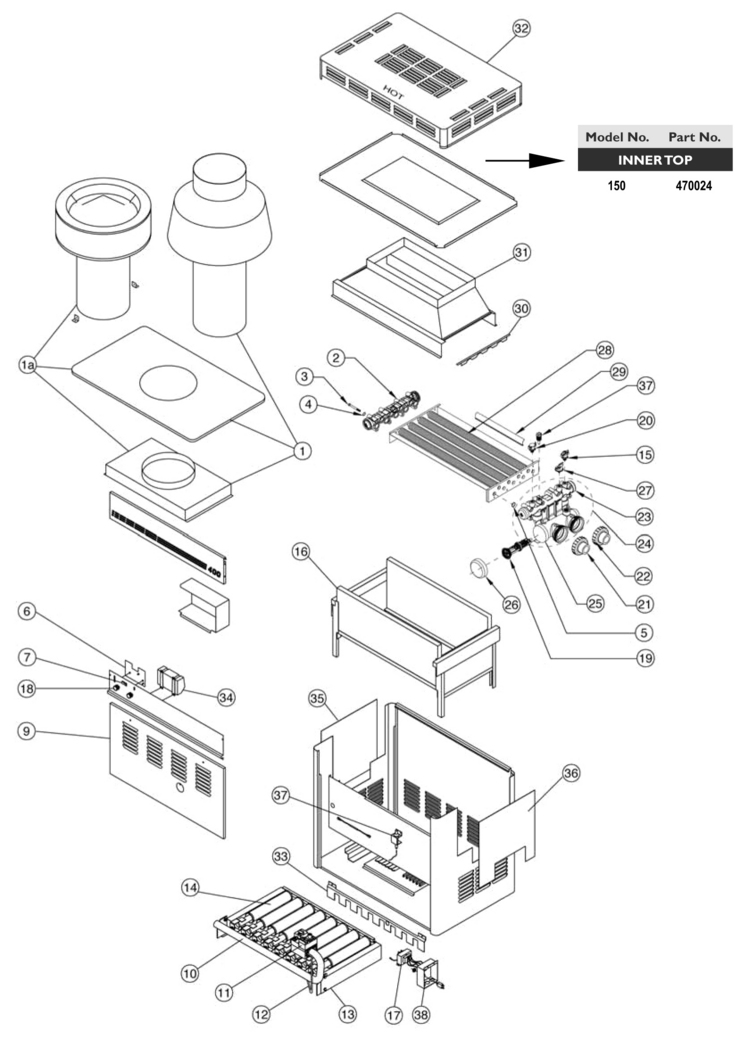

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Pentair
Model Name: MiniMax CH - 150 IID Model

Pentair MiniMax-CH-150-IID-Model replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 071515 Pilot -generator No N/A N/A N/A

-

 471328 Pilot electrode (only) Yes 1 Day(s) $54.13

-

 471293 Pilot rainshield Yes 1 Day(s) $16.68

-

 470178 Power element (flow-valve) Yes 1 Day(s) $34.53

-

 070551 Bushing 1/2"" No N/A N/A N/A

-

 471291 Pilot - propane - Millivolt No N/A N/A N/A

-

 471292 Pilot - natural - Millivolt Yes 1 Day(s) $37.99

-

 073728 Orifice main burner Propane No N/A N/A N/A

-

 073727 Orifice main burner Natural No N/A N/A N/A

-

 073725 Bolt 5/1 6""- 18 x 3/4"" No N/A N/A N/A

-

 074540 JL"" brackets No N/A N/A N/A

-

 471271 Bracket adapter Q379 pilot MV No N/A N/A N/A

-

 072253 Jumper No N/A N/A N/A

-

 471277 Clips for wire harness Yes 1 Day(s) $3.52

-

 075511 Wire Kit - Millivolt No N/A N/A N/A

-

 071703 Screw 8 x 1/4"" HH No N/A N/A N/A

-

 071698 Screw 8 x 1/2"" HH No N/A N/A N/A

-

 071716 Screw 6 x 1/4"" No N/A N/A N/A

-

 071659 Screw 10 -32 x 1/4"" No N/A N/A N/A

-

 070715 Plastic mounting bracket No N/A N/A N/A

-

 075173 Thermal cutoff - fusible link No N/A N/A N/A

-

 075692 Screw 10-32 x 3/16"" No N/A N/A N/A

-

 470414 Therm knob stopper Yes 1 Day(s) $4.81

1

 460227 Vent kit assy, (indoor) No N/A $193.14

1a

 460237 Vent kit assy, (outdoor) Yes 1 Day(s) $174.85

2

 471991 Return Header assy. Yes 1 Day(s) $46.43

3

 471622 Bolt, heat exchanger Yes 1 Day(s) $0.90

4

 072184 Washer 3/8"" ID 1"" OD No N/A N/A N/A

5

 070951 Tube seal gasket No N/A N/A N/A

6

 470179 Electronic Thermostat circuit board - IID Model Yes 1 Day(s) $140.10

7

 470186 Switch rocker (single pole & double throw) Yes 1 Day(s) $7.22

9

 075468 Door - Millivolt or IID No N/A N/A N/A

10

 070256 Manifold burner No N/A N/A N/A

11

 073998 Gas valve Natural - IID No N/A N/A N/A

11

 073999 Gas valve Propane - IID No N/A N/A N/A

12

 075191 Pilot tube - IID No N/A N/A N/A

13

 073752 Burner tray assy. Natural (complete) - IID No N/A N/A N/A

13

 073906 Burner tray assy. Propane (complete) - IID No N/A N/A N/A

14a

 470550 Burner with pilot bracket (not shown) Yes 1 Day(s) $74.65

14

 070230 Burner No N/A N/A N/A

15

 472125 Pressure switch No N/A N/A N/A

16

 073858 Combustion chamber assy, (complete) No N/A N/A N/A

17

 471360 Transformer - w/circuit breaker - dual voltage No N/A $46.95

18

 470184 Thermostat knob Yes 1 Day(s) $7.38

19

 471750 Flow valve assy. Yes 1 Day(s) $120.29

20

 471587 Hi-Limit thermostat 115° Yes 1 Day(s) $28.35

21

 471441 Adaptor - bulkhead, 2 in. Yes 1 Day(s) $10.25

22

 274440 Adaptor - bulkhead ring Yes 1 Day(s) $9.44

23

 471993 Main manifold assy. Yes 1 Day(s) $37.18

24

 471992 Main header assy. Yes 1 Day(s) $277.88

25

 471419 Main manifold bottom Yes 1 Day(s) $39.97

26

 471420 Cap, main manifold bottom Yes 1 Day(s) $7.88

27

 471694 Hi-Limit thermostat 150° Yes 1 Day(s) $28.89

28

 472131 Heat exchanger (without heads) Yes 1 Day(s) $433.11

28

 472169 Heat exchanger (with heads) Yes 1 Day(s) $662.13

29

 070277 Baffle No N/A N/A N/A

30

 073810 Baffle hold down (2) baffles on 400 No N/A N/A N/A

31

 073864 Flue collector No N/A N/A N/A

32

 470471 Outdoor top assy. No N/A $252.83

33

 075783 Lightback shield (Propane Gas units only) No N/A N/A N/A

34

 073585 Module Propane Gas No N/A N/A N/A

34

 073584 Module Natural Gas No N/A N/A N/A

35

 073789 Panel (return) No N/A N/A N/A

36

 472127 Panel (in/out) Yes 1 Day(s) $73.47

37

 471566 Thermistor (probe) complete - IID Yes 1 Day(s) $30.02

38

 470122 Junction Box No N/A $23.98
