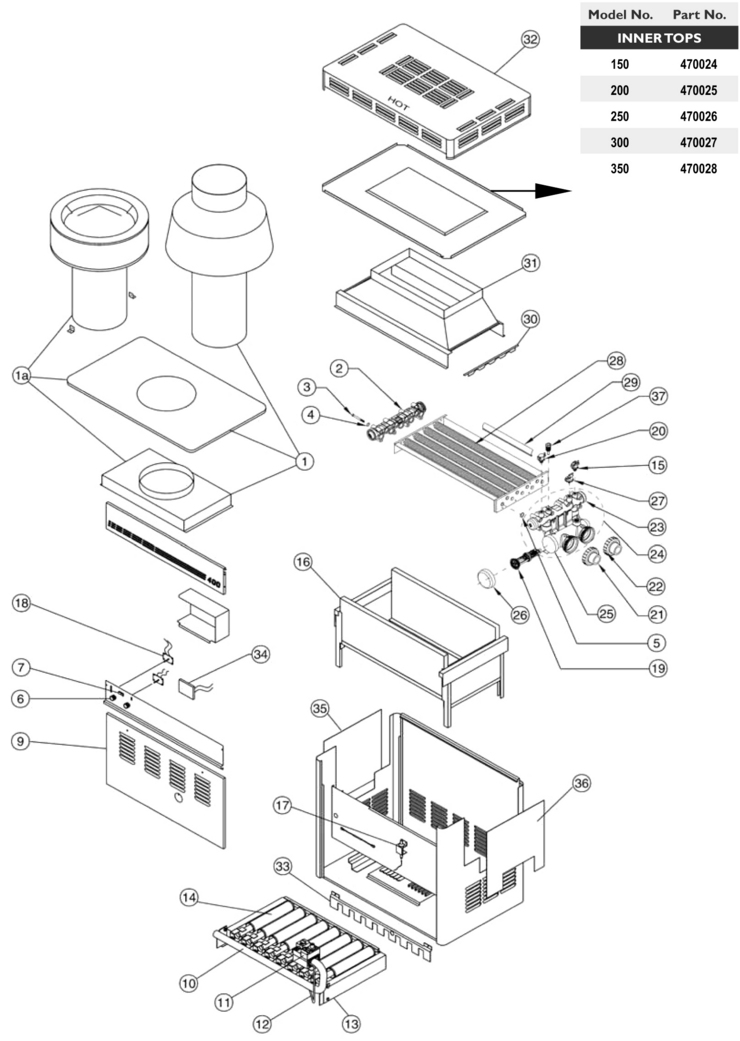

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: MiniMax CH



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	471291	Pilot - propane - Millivolt	No	N/A	N/A	N/A
-	471328	Pilot electrode (only)	Yes	1 Day(s)	$54.13
-	471293	Pilot ramshield	Yes	1 Day(s)	$16.68
-	470178	Power element (flow-valve)	Yes	1 Day(s)	$34.53
-	75173	Thermal cutoff - fusible	Yes	1 Day(s)	$13.20
-	71515	Pilot - generator	Yes	1 Day(s)	$67.93
-	73728	Orifice main burner - propane	Yes	1 Day(s)	$4.83
-	73727	Orifice main burner - natural	Yes	1 Day(s)	$4.83
-	73725	Bolt 5/16"" -18 x 3/4""	Yes	1 Day(s)	$1.00
-	470414	Therm knob stopper	Yes	1 Day(s)	$4.81
-	70551	Bushing 1/2""	No	N/A	N/A	N/A
-	75692	Screw 10- 32 x 3/16""	No	N/A	N/A	N/A
-	71659	Screw 10 -32 x 1/4""	No	N/A	N/A	N/A
-	71716	Screw 6 x 1/4""	Yes	1 Day(s)	$1.00
-	71698	Screw 8 x 1/2"" HH	Yes	1 Day(s)	$1.00
-	75511	Wire Kit - Millivolt	Yes	1 Day(s)	$22.88
-	471277	Clips for wire harness	Yes	1 Day(s)	$3.52
-	70715	Plastic mounting bracket	Yes	1 Day(s)	$1.00
-	74540	""L"" brackets	Yes	1 Day(s)	$3.60
-	471271	Bracket adapter Q379 pilot MV	No	N/A	N/A	N/A
-	72253	Jumper	Yes	1 Day(s)	$3.88
-	471292	Pilot -natural - Millivolt	Yes	1 Day(s)	$37.99
-	71703	Screw 8 x 1/4"" HH	No	N/A	N/A	N/A
1	460233	Vent Kit Ass'y - Indoor	No	N/A	$214.99
1	460231	Vent Kit Ass'y - Indoor	No	N/A	$200.58
1	460230	Vent Kit Ass'y - Indoor	No	N/A	$196.87
1	460228	Vent Kit Ass'y - Indoor	No	N/A	$193.14
1	460227	Vent Kit Ass'y - Indoor	No	N/A	$193.14
1a	460225	Vent Kit Ass'y - Outdoor	Yes	1 Day(s)	$194.80
1a	460222	Vent Kit Ass'y - Outdoor	Yes	1 Day(s)	$174.85
1a	460224	Vent Kit Ass'y - Outdoor	Yes	1 Day(s)	$181.58
1a	460223	Vent Kit Ass'y - Outdoor	Yes	1 Day(s)	$178.21
1a	460226	Vent Kit Ass'y - Outdoor	Yes	1 Day(s)	$184.94
1a	460237	Vent Kit Ass'y - Outdoor	Yes	1 Day(s)	$174.85
1	460234	Vent Kit Ass'y - Indoor	Yes	1 Day(s)	$184.94
2	471991	Return header assy.	Yes	1 Day(s)	$46.43
3	471622	Bolt, heat exchanger	Yes	1 Day(s)	$0.90
5	70951	Tube seal gasket	Yes	1 Day(s)	$1.00
6	470184	Thermostat Knob	Yes	1 Day(s)	$7.38
7	470186	Switch rocker (single pole and double throw)	Yes	1 Day(s)	$7.22
9	75605	Control Panel Door, Millivolt	No	N/A	N/A	N/A
9	75488	Control Panel Door, Millivolt	Yes	1 Day(s)	$78.08
9	75490	Control Panel Door, Millivolt	Yes	1 Day(s)	$142.92
9	75604	Control Panel Door, Millivolt	Yes	1 Day(s)	$105.81
9	75468	Control Panel Door, Millivolt	Yes	1 Day(s)	$72.98
9	75606	Control Panel Door, Millivolt	Yes	1 Day(s)	$136.69
10	75527	Control Panel Manifold burner	Yes	1 Day(s)	$46.42
10	70258	Control Panel Manifold burner	Yes	1 Day(s)	$51.41
10	75526	Control Panel Manifold burner	Yes	1 Day(s)	$46.25
10	70256	Control Panel Manifold burner	Yes	1 Day(s)	$38.74
10	75525	Control Panel Manifold burner	No	N/A	N/A	N/A
10	70257	Control Panel Manifold burner	Yes	1 Day(s)	$43.51
11	75457	Gas valve natural - Millivolt	Yes	1 Day(s)	$309.59
11	75458	Gas valve propane - Millivolt	Yes	1 Day(s)	$304.95
12	76085	Pilot tube - Millivolt	Yes	1 Day(s)	$26.95
12	76086	Pilot tube - Millivolt	Yes	1 Day(s)	$29.49
12	76084	Pilot tube - Millivolt	Yes	1 Day(s)	$43.39
13	75507	Burner Tray Propane - Millivolt	Yes	1 Day(s)	$1364.47
13	75506	Burner Tray Propane - Millivolt	Yes	1 Day(s)	$1195.51
13	75503	Burner Tray Propane - Millivolt	Yes	1 Day(s)	$1129.34
13	75502	Burner Tray Propane - Millivolt	Yes	1 Day(s)	$926.84
13	75495	Burner Tray Natural - Millivolt	Yes	1 Day(s)	$1466.18
13	75498	Burner Tray Natural - Millivolt	No	N/A	N/A	N/A
13	75497	Burner Tray Natural - Millivolt	Yes	1 Day(s)	$1195.51
13	75494	Burner Tray Natural - Millivolt	Yes	1 Day(s)	$1130.10
13	75493	Burner Tray Natural - Millivolt	Yes	1 Day(s)	$929.08
13	75504	Burner Tray Propane - Millivolt	Yes	1 Day(s)	$1467.66
13	75505	Burner Tray Propane - Millivolt	Yes	1 Day(s)	$1032.35
13	75496	Burner Tray Natural - Millivolt	No	N/A	N/A	N/A
14	70230	Burner	Yes	1 Day(s)	$82.30
14a	470550	Burner with pilot bracket (not shown)	Yes	1 Day(s)	$74.65
15	472125	Pressure Switch	No	N/A	N/A	N/A
16	73858	Combustion Chamber Assy.	Yes	1 Day(s)	$317.43
16	75586	Combustion Chamber Assy.	Yes	1 Day(s)	$339.66
16	73857	Combustion Chamber Assy.	Yes	1 Day(s)	$370.23
16	75587	Combustion Chamber Assy.	Yes	1 Day(s)	$387.67
16	73856	Combustion Chamber Assy.	Yes	1 Day(s)	$425.92
16	75588	Combustion Chamber Assy.	Yes	1 Day(s)	$379.08
17	75459	Presslite igniter assy.	Yes	1 Day(s)	$12.86
18	471678	Potentiometer	Yes	1 Day(s)	$13.99
19	471750	Flow valve assy.	Yes	1 Day(s)	$120.29
20	471587	Hi-Limit thermostat 115°	Yes	1 Day(s)	$28.35
21	471441	Adaptor - bulkhead, 2 in.	Yes	1 Day(s)	$10.25
22	274440	Adaptor - bulkhead ring	Yes	1 Day(s)	$9.44
23	471993	Main manifold assy.	Yes	1 Day(s)	$37.18
24	471992	Main header assy.	Yes	1 Day(s)	$277.88
25	471419	Main manifold bottom	Yes	1 Day(s)	$39.97
26	471420	Cap, main manifold bottom	Yes	1 Day(s)	$7.88
27	471694	Hi-Limit thermostat 150°	Yes	1 Day(s)	$28.89
28	472136	Heat Exchanger w/o heads	Yes	1 Day(s)	$776.75
28	472169	Heat Exchanger w/heads	Yes	1 Day(s)	$662.13
28	472134	Heat Exchanger w/o heads	Yes	1 Day(s)	$618.97
28	472135	Heat Exchanger w/o heads	Yes	1 Day(s)	$689.98
28	472133	Heat Exchanger w/o heads	Yes	1 Day(s)	$559.33
28	472132	Heat Exchanger w/o heads	Yes	1 Day(s)	$538.30
28	472131	Heat Exchanger w/o heads	Yes	1 Day(s)	$433.11
29	70278	Baffle	Yes	1 Day(s)	$4.42
29	70277	Baffle	Yes	1 Day(s)	$4.14
29	75560	Baffle	Yes	1 Day(s)	$3.88
29	70277	Baffle	Yes	1 Day(s)	$4.14
