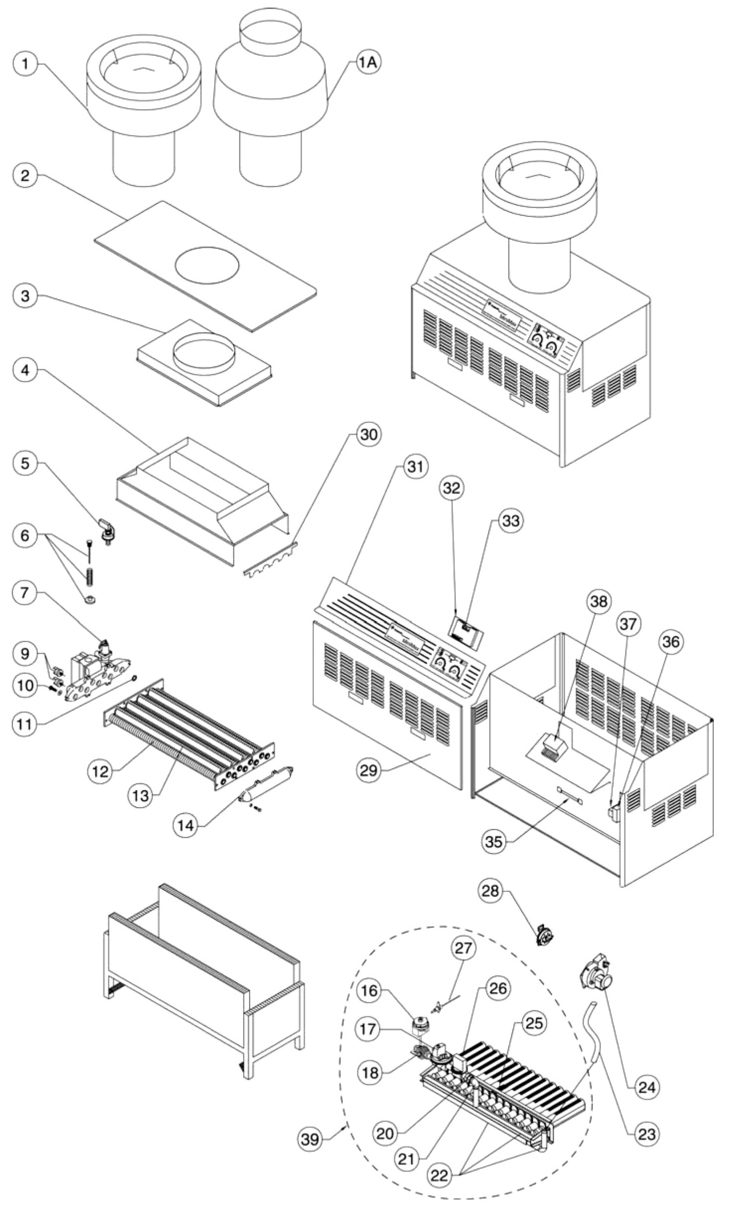

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Pentair
Model Name: MiniMax Low NOx Commercial- Model 900

Pentair MiniMax-Low-NOx-Commercial-Model-900 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 460319 Outdoor vent cap kit (a) No N/A N/A N/A

1A

 460234 Indoor Draft Hood Kit Yes 1 Day(s) $184.94

2

 470869 Top Cover No N/A N/A N/A

3

 470805 Adaptor w/Ring No N/A N/A N/A

4

 470704 Flue Collector No N/A N/A N/A

5

 470190 Pressure Switch Yes 1 Day(s) $70.15

6

 471115 Flow Valve Assembly Yes 1 Day(s) $48.39

7

 470768 Pressure Relief Valve Yes 1 Day(s) $264.48

9

 71017 Hi-Limit-Switch Yes 1 Day(s) $26.36

10

 470966 Bolts Yes 1 Day(s) $15.69

11

 470742 Rubber Seal No N/A N/A N/A

12

 470976 Heat Exchanger w/o Heads No N/A N/A N/A

12

 470737 Heat Exchanger Assembly Yes 1 Day(s) $2688.05

13

 470647 Baffle Yes 1 Day(s) $14.90

14

 470745 Return Header Yes 1 Day(s) $208.68

15

 470979 Combustion Chamber Yes 1 Day(s) $346.34

16

 471506 Low Gas Pressure Switch Yes 1 Day(s) $171.86

17

 471500 Gas Valve Diaphragm 900 Nat. Yes 1 Day(s) $491.01

18

 470773 Main Shutoff Valve Yes 1 Day(s) $131.71

19

 470688 Gas Valve Solenoid 900 Yes 1 Day(s) $459.25

20

 470982 Union 1 1/2 in. Galv. Black No N/A N/A N/A

21

 470981 Elbow 1 in. x 1.5 in. No N/A N/A N/A

22

 471474 Gas & Air Manifold Assembly No N/A N/A N/A

23

 471498 Air Supply Pipe Yes 1 Day(s) $14.85

24

 471481 Blower Yes 1 Day(s) $386.61

25

 471491 Hot Surface Ignition Yes 1 Day(s) $71.42

26

 471471 OvO Burner Yes 1 Day(s) $68.12

27

 471502 Remote Sense Electrode Yes 1 Day(s) $22.87

28

 470009 Pressure Switch No N/A N/A N/A

29

 470701 Door 900 No N/A N/A N/A

30

 470799 Baffles Hold Down Yes 1 Day(s) $16.43

31

 470755 Control Panel Yes 1 Day(s) $390.59

32

 470179 Thermostat Board Yes 1 Day(s) $140.10

33

 470186 Rocker Switch Yes 1 Day(s) $7.22

35

 75173 Thermal Cut-Off Yes 1 Day(s) $13.20

36

 471426 J-Box Yes 1 Day(s) $22.62

37

 471571 Transformer Yes 1 Day(s) $49.34

38

 471492 Ignition Module Yes 1 Day(s) $534.28

39

 471482 Burner Tray Assy. Yes 1 Day(s) $2487.05
