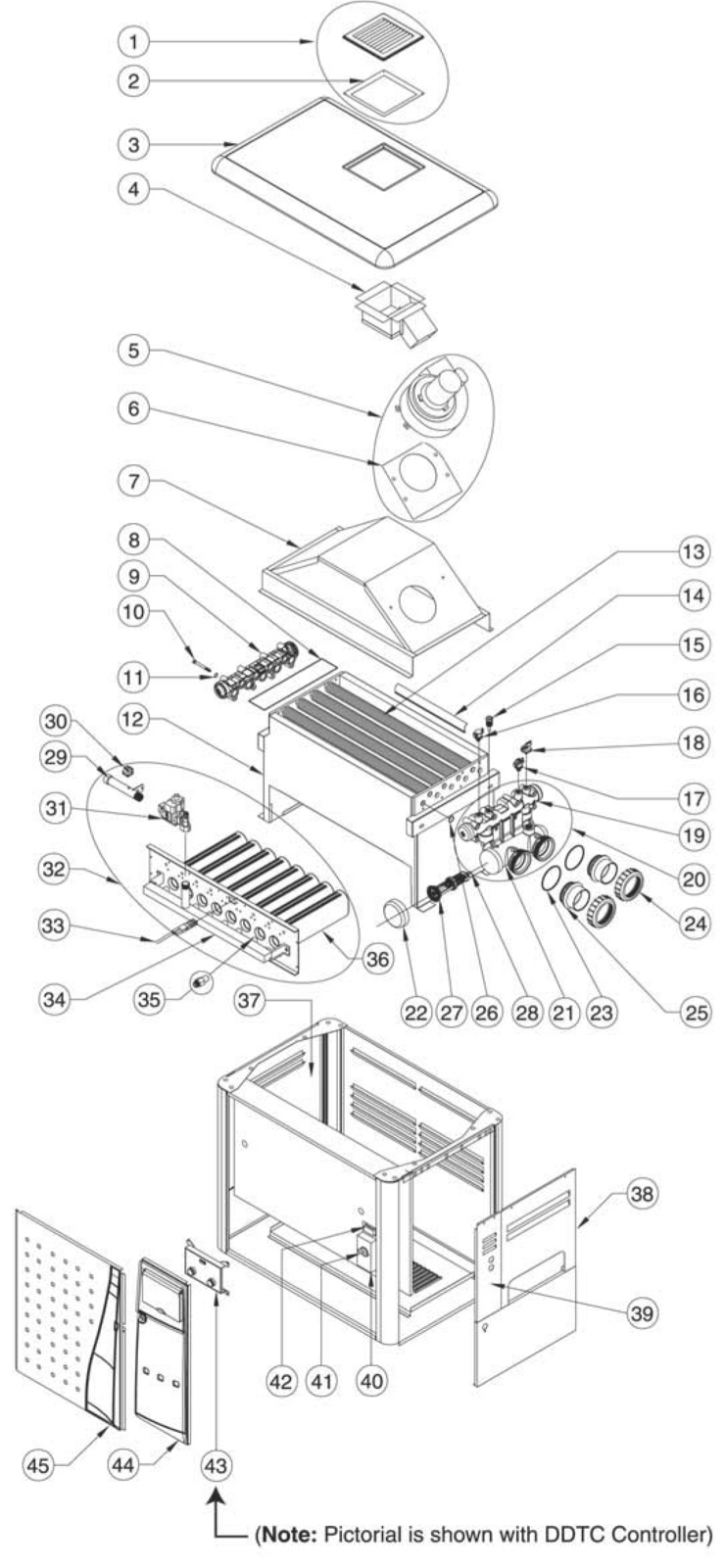

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: MiniMax NT LN w/DDTC Controller



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	460507	Indoor Vent Adaptor -5""	Yes	1 Day(s)	$81.06
-	460506	Indoor Vent Adaptor -4""	Yes	1 Day(s)	$80.82
-	471571	Transformer, 40 VA	Yes	1 Day(s)	$49.34
-	075173	Thermal Cut-off	No	N/A	N/A	N/A
1	472352	Exhaust Grill w/Gasket	Yes	1 Day(s)	$49.27
2	471701	Gasket, Exhaust Grill	Yes	1 Day(s)	$11.08
3	472356	Top Cover w/Posts	Yes	1 Day(s)	$227.10
3	472353	Top Cover w/Posts	Yes	1 Day(s)	$217.44
3	472355	Top Cover w/Posts	Yes	1 Day(s)	$217.07
3	472354	Top Cover w/Posts	Yes	1 Day(s)	$212.09
4	472373	Exhaust Assy.	Yes	1 Day(s)	$138.61
4	472357	Exhaust Assy.	Yes	1 Day(s)	$138.61
4	472359	Exhaust Assy.	No	N/A	N/A	N/A
4	472357	Exhaust Assy.	Yes	1 Day(s)	$138.61
5	472362	Blower w/Gasket	Yes	1 Day(s)	$433.34
5	472361	Blower w/Gasket	Yes	1 Day(s)	$433.34
6	471610	Gasket, Blower	Yes	1 Day(s)	$12.01
7	472005	Flue Collector	Yes	1 Day(s)	$82.66
7	472007	Flue Collector	Yes	1 Day(s)	$70.15
7	472008	Flue Collector	No	N/A	N/A	N/A
7	472006	Flue Collector	Yes	1 Day(s)	$77.67
8	472270	Insulation, Header/Hi-Limit	Yes	1 Day(s)	$5.26
9	471991	Return Header Assy.	Yes	1 Day(s)	$46.43
10	471622	Bolt, Heat Exchanger	Yes	1 Day(s)	$0.90
11	072184	Washer, Heat Exchanger	No	N/A	N/A	N/A
12	472332	Fire Box Assy.	Yes	1 Day(s)	$425.19
12	471904	Fire Box Assy.	No	N/A	N/A	N/A
12	471835	Fire Box Assy.	Yes	1 Day(s)	$319.80
12	471922	Fire Box Assy.	Yes	1 Day(s)	$380.72
13	471910	Heat Exchanger w/Headers	Yes	1 Day(s)	$1036.26
13	471936	Heat Exchanger w/o Headers	Yes	1 Day(s)	$776.75
13	471935	Heat Exchanger w/o Headers	Yes	1 Day(s)	$618.04
13	471934	Heat Exchanger w/o Headers	Yes	1 Day(s)	$559.33
13	471928	Heat Exchanger w/Headers	Yes	1 Day(s)	$1153.36
13	471785	Heat Exchanger w/Headers	Yes	1 Day(s)	$1087.07
13	471838	Heat Exchanger w/Headers	Yes	1 Day(s)	$1288.73
13	471933	Heat Exchanger w/o Headers	Yes	1 Day(s)	$538.30
14	471640	Baffle, Heat Exchanger	Yes	1 Day(s)	$3.52
14	471641	Baffle, Heat Exchanger	Yes	1 Day(s)	$3.34
14	471896	Baffle, Heat Exchanger	Yes	1 Day(s)	$5.01
14	471642	Baffle, Heat Exchanger	Yes	1 Day(s)	$2.98
15	471566	Thermistor Probe	Yes	1 Day(s)	$30.02
16	471587	Hi-Limit Thermostat- 115° F.	Yes	1 Day(s)	$28.35
17	471694	Hi-Limit Thermostat- 150° F.	Yes	1 Day(s)	$28.89
18	472125	Water Pressure Switch	No	N/A	N/A	N/A
19	472363	In/Out Top Sub-Header Assy.	Yes	1 Day(s)	$91.01
20	471992	In/Out Main Header Assy.	Yes	1 Day(s)	$277.88
21	472364	In/Out Bottom Sub-Header	Yes	1 Day(s)	$96.83
22	471420	Cap, In/Out Bottom Sub-Header	Yes	1 Day(s)	$7.88
23	274494	O-Ring, Adapter	Yes	1 Day(s)	$4.84
24	274440	Adapter. Bulkhead Ring	Yes	1 Day(s)	$9.44
25	471441	Adapter, Bulkhead, 2 in.	Yes	1 Day(s)	$10.25
26	070951	Gasket, Fin Tube, Seal	No	N/A	N/A	N/A
27	471750	Flow Valve Assy.	Yes	1 Day(s)	$120.29
28	472330	Power Element Flow Valve	Yes	1 Day(s)	$32.57
29	471597	Sub-Gas Manifold	Yes	1 Day(s)	$26.16
30	472083	Gas Pressure Switch	Yes	1 Day(s)	$61.37
31	471601	Gas Valve - Natural Gas	No	N/A	N/A	N/A
32	471923	Burner Tray Assy.	Yes	1 Day(s)	$986.08
32	472016	Burner Tray Assy.	Yes	1 Day(s)	$762.73
32	471981	Burner Tray Assy.	Yes	1 Day(s)	$1456.68
33	471696	Igniter	Yes	1 Day(s)	$69.61
34	472001	Gas Manifold w/Orifices, 0-4000 ft.	No	N/A	N/A	N/A
34	472002	Gas Manifold w/Orifices. 0-4000 ft.	No	N/A	N/A	N/A
34	472003	Gas Manifold w/Orifices, 0-4000 ft.	No	N/A	N/A	N/A
34	472004	Gas Manifold w/Orifices, 0-4000 ft.	No	N/A	N/A	N/A
35	471984	Gas Orifices. 0-4000 ft.	Yes	1 Day(s)	$3.86
36	471668	Burner	Yes	1 Day(s)	$46.27
37	471575	Jacket, Upper Panel, Left	Yes	1 Day(s)	$62.10
38	471576	Jacket, Upper Panel, Right	Yes	1 Day(s)	$62.10
39	471767	Jacket, Upper Sub-Plate	Yes	1 Day(s)	$29.25
40	472505	Junction Box Assy.	No	N/A	N/A	N/A
41	472180	Air Pressure Switch, (2001-4000 ft.)	Yes	1 Day(s)	$28.37
41	472181	Air Pressure Switch, (0-2000 ft.)	Yes	1 Day(s)	$28.37
41	472180	Air Pressure Switch, (2001-4000 ft.)	Yes	1 Day(s)	$28.37
41	472182	Air Pressure Switch, (0-4000 ft.)	Yes	1 Day(s)	$28.37
41	472178	Air Pressure Switch. (0-4000 ft.)	Yes	1 Day(s)	$60.97
42	472447	Module, Ignition Control	Yes	1 Day(s)	$143.90
43	472100	DDTC Board	Yes	1 Day(s)	$360.77
44	472372	Right Door Assy, w/o Controller	Yes	1 Day(s)	$217.93
44	471727	Right Door Assy, with Controller	Yes	1 Day(s)	$677.79
45	472318	Left Door Assy.	Yes	1 Day(s)	$165.32
45	471918	Left Door Assy.	Yes	1 Day(s)	$181.19
45	471726	Left Door Assy.	Yes	1 Day(s)	$153.49
45	471900	Left Door Assy.	Yes	1 Day(s)	$156.31
