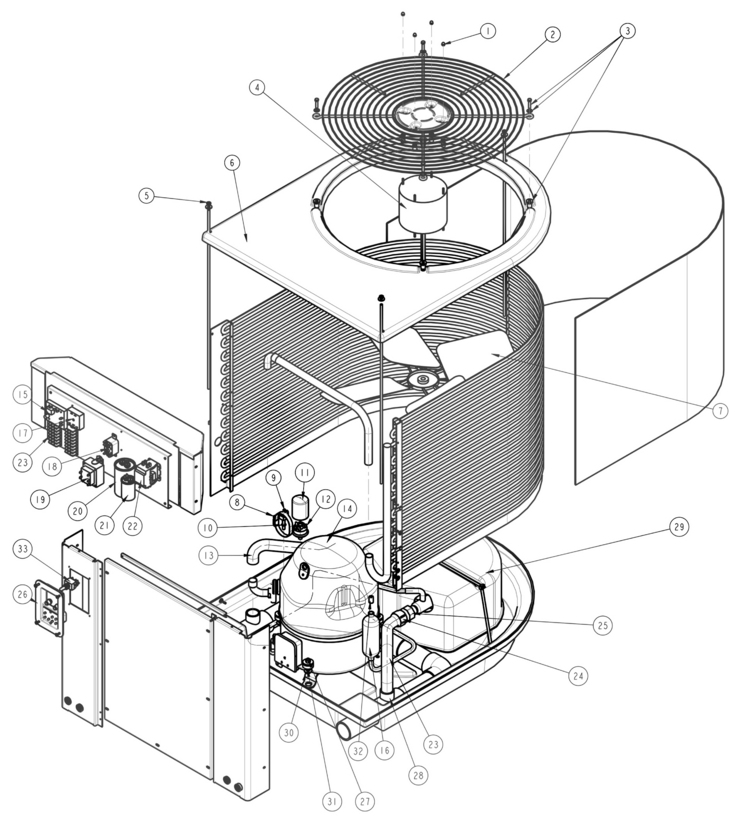

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: MiniMax Plus HP



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	473175	Switch 90/120 lo-pressure, Model No. 400, 600, 800, 1000	Yes	1 Day(s)	$66.45
-	473176	Switch 40/80 lo-pressure, Model No. 1000R, CHILLR	Yes	1 Day(s)	$66.45
-	473168	Wire harness electrical	No	N/A	N/A	N/A
-	473169	Wire harness, Trane compressor	Yes	1 Day(s)	$53.47
-	473172	Switch 500/380 hi-pressure	Yes	1 Day(s)	$66.45
-	473135	Valve, reversing, Model No. 1000R	Yes	1 Day(s)	$166.99
1	473316	Nut, 8-32 SS acorn	No	N/A	N/A	N/A
2	473368	Fan Guard	Yes	1 Day(s)	$66.63
3	470441	Fastener Kit, fan guard, 1 set	Yes	1 Day(s)	$4.56
4	473224	Motor, fan	Yes	1 Day(s)	$210.24
5	473285	Nut, 1/4-20 SS acorn	Yes	1 Day(s)	$0.74
6	473222	Top	Yes	1 Day(s)	$192.70
7	473223	Fan blade	Yes	1 Day(s)	$140.10
8	9321004	Hose clamp, 2-3/4 in.	Yes	1 Day(s)	$2.96
9	471566	Temperature sensor, 1ok OHM, 40 in.	Yes	1 Day(s)	$30.02
10	9142109	O-ring 2-109	Yes	1 Day(s)	$2.46
11	473364	Protective cap for water pressure switch	Yes	1 Day(s)	$2.53
12	473070	Water pressure switch	Yes	1 Day(s)	$111.35
13	473065	Hose, spa, 1 in.	Yes	1 Day(s)	$4.13
14	473024	Compressor, trane GH633-LL1-G, Model No. 400, 600, 800	Yes	1 Day(s)	$1490.38
14	473025	Compressor, trane GH673-LM1-G, Model No. 1000, 1000R, CHILLR	Yes	1 Day(s)	$1490.38
15	473157	Circuit board, Honeywell	Yes	1 Day(s)	$161.16
16	473121	Drier, Model No. 400, 600, 800, 1000, CHILLR	Yes	1 Day(s)	$55.23
16	473139	Drier, Model No. 1000R	Yes	1 Day(s)	$164.08
17	473156	Time delay SSAC	Yes	1 Day(s)	$89.45
18	473150	Relay, fan	Yes	1 Day(s)	$64.69
19	473155	Transformer	Yes	1 Day(s)	$94.53
20	473198	Capacitor, 50 MFD 440V	Yes	1 Day(s)	$41.19
21	473154	Capacitor, 7.5 MFD 370V	Yes	1 Day(s)	$34.90
22	473149	Contactor, compressor	Yes	1 Day(s)	$100.45
23	473160	Terminal block 8 POS	Yes	1 Day(s)	$12.78
24	473068	Adapter, male, Model No. 1000, 1000R, CHILLR	Yes	1 Day(s)	$5.26
24	473068	Adapter, male, Model No. 1000, 1000R, CHILLR	Yes	1 Day(s)	$5.26
25	473117	Quest nut, ASM 3/4 NPT, Model No. 800, 1000, 1000R, CHILLR	Yes	1 Day(s)	$10.52
25	473116	Quest nut, ASM 3/4 NPT, Model No. 400, 600	Yes	1 Day(s)	$16.70
26	473216	Thermostat, Model No. 400, 600, 800, 1000	Yes	1 Day(s)	$231.27
26	473221	Thermostat, Model No. 1000R	Yes	1 Day(s)	$235.40
27	473294	Bolt, 5/16-18 X 1.75 in. SS	No	N/A	N/A	N/A
28	473059	Bypass assembly w/check valve	Yes	1 Day(s)	$88.95
29	473403	Water coil assembly, Model No. 800, 1000, 1000R, CHILLR	Yes	1 Day(s)	$1344.21
29	473402	Water coil assembly, Model No. 400, 600	Yes	1 Day(s)	$1187.81
30	473295	Washer, fender	No	N/A	N/A	N/A
31	473026	Compressor isolation kit	Yes	1 Day(s)	$12.66
32	473145	Orifice, reversible, Model No. 400, 600, 800, 1000, CHILLR	Yes	1 Day(s)	$29.75
32	473144	Orifice, reversible, Model No. 1000R	Yes	1 Day(s)	$29.73
33	473181	Switch, 3 position toggle	Yes	1 Day(s)	N/A	N/A
