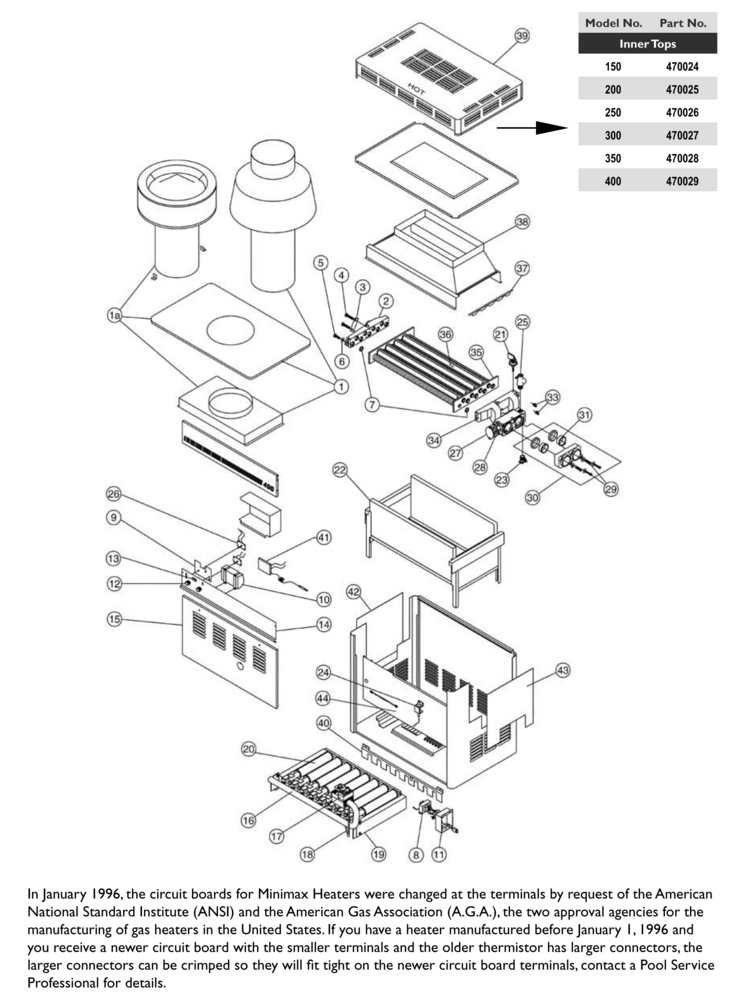

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: MiniMax Plus Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	070715	Clips for transformer	No	N/A	N/A	N/A
-	471291	Pilot - propane - Millivolt	No	N/A	N/A	N/A
-	071515	Pilot - generator	No	N/A	N/A	N/A
-	471740	Thermistor (probe) complete (Millivolt models)	Yes	1 Day(s)	$21.33
-	470180	Thermistor (probe) - (IID models)	Yes	1 Day(s)	$26.39
-	074202	Indicator board LED lightstrip (i)	No	N/A	N/A	N/A
-	070273	Potentiometer (TSTAT) IID (i)	No	N/A	N/A	N/A
-	073727	Orifice main burner natural	No	N/A	N/A	N/A
-	471293	Pilot rainshield	Yes	1 Day(s)	$16.68
-	471328	Pilot electrode (only)	Yes	1 Day(s)	$54.13
-	470181	Shaft T-stat controls	Yes	1 Day(s)	$3.52
-	070715	Clips for transformer	No	N/A	N/A	N/A
-	074540	""L"" brackets	No	N/A	N/A	N/A
-	471292	Pilot - natural - Millivolt	Yes	1 Day(s)	$37.99
-	471205	Pilot - propane - HD	Yes	1 Day(s)	$68.21
-	470965	Wire kit - harness IID (complete)	Yes	1 Day(s)	$70.74
-	471277	Clips for wire harness	Yes	1 Day(s)	$3.52
-	075511	Wire kit - Millivolt	No	N/A	N/A	N/A
-	071703	Screw 8 x 1/4 in. hh.	No	N/A	N/A	N/A
-	071698	Screw 8 x 1/2 in. hh.	No	N/A	N/A	N/A
-	071659	Screw 10-32 x 1/4 in.	No	N/A	N/A	N/A
-	075692	Screw 10-32 x 3/16	No	N/A	N/A	N/A
-	070551	Bushing 1/2 in.	No	N/A	N/A	N/A
-	470414	Therm, knob stopper	Yes	1 Day(s)	$4.81
-	470178	Power element (flow-valve)	Yes	1 Day(s)	$34.53
-	073725	Bolt 5/1 6 - 18 x 3/4 in.	No	N/A	N/A	N/A
-	471204	Pilot - natural - HD	Yes	1 Day(s)	$68.21
-	471271	Bracket adapter 0379 pilot, MV	No	N/A	N/A	N/A
-	072253	Jumper	No	N/A	N/A	N/A
-	471612	Door Latch	Yes	1 Day(s)	$6.32
-	470181	Shaft T-stat controls	Yes	1 Day(s)	$3.52
-	071716	Screw 6 x 1/4 in.	No	N/A	N/A	N/A
-	073728	Orifice main burner propane	No	N/A	N/A	N/A
1a	460225	Vent Kit Assy. Outdoor	Yes	1 Day(s)	$194.80
1a	460226	Vent Kit Assy. Outdoor	Yes	1 Day(s)	$184.94
1a	460224	Vent Kit Assy. Outdoor	Yes	1 Day(s)	$181.58
1a	460223	Vent Kit Assy. Outdoor	Yes	1 Day(s)	$178.21
1a	460222	Vent Kit Assy. Outdoor	Yes	1 Day(s)	$174.85
1a	460237	Vent Kit Assy. Outdoor	Yes	1 Day(s)	$174.85
1	460234	Vent Kit Assy. Indoor	Yes	1 Day(s)	$184.94
1	460233	Vent Kit Assy. Indoor	No	N/A	$214.99
1	460231	Vent Kit Assy. Indoor	No	N/A	$200.58
1	460230	Vent Kit Assy. Indoor	No	N/A	$196.87
1	460228	Vent Kit Assy. Indoor	No	N/A	$193.14
1	460227	Vent Kit Assy. Indoor	No	N/A	$193.14
2	070994	Return header	No	N/A	N/A	N/A
3	074216	Bracket washer	No	N/A	N/A	N/A
4	073739	Both hh. 3/8 in. x 2	No	N/A	N/A	N/A
5	070416	Bolt 3/8 -16 x 1 1/2 in.	No	N/A	N/A	N/A
6	072180	Washer 3/8 in. i.d. 1 in. o.d.	No	N/A	N/A	N/A
7	070951	Tube seal gasket	No	N/A	N/A	N/A
8	471360	Transformer w/ circuit breaker-dual voltage	No	N/A	$46.95
9	470179	Electronic Thermostat circuit board - IID models	Yes	1 Day(s)	$140.10
10	073585	Module propane gas	No	N/A	N/A	N/A
10	073584	Module Nat. gas	No	N/A	N/A	N/A
11	470122	Junction box (IID units)	No	N/A	$23.98
12	470184	Thermostat knob	Yes	1 Day(s)	$7.38
13	470186	Switch rocker (sngl. pole & dbl. throw)	Yes	1 Day(s)	$7.22
14	470990	Control Panel Propane - IID	No	N/A	N/A	N/A
14	471025	Control Panel Millivolt	Yes	1 Day(s)	$392.73
14	470297	Control Panel Natural - IID	Yes	1 Day(s)	$512.00
14	470299	Control Panel Natural - IID	No	N/A	N/A	N/A
14	470296	Control Panel Natural - IID	Yes	1 Day(s)	$472.85
14	470295	Control Panel Natural - IID	Yes	1 Day(s)	$511.30
14	470187	Control Panel Natural - IID	Yes	1 Day(s)	$518.79
14	470987	Control Panel Propane - IID	Yes	1 Day(s)	$427.88
14	470988	Control Panel Propane - IID	No	N/A	N/A	N/A
14	470298	Control Panel Natural - IID	No	N/A	N/A	N/A
14	470992	Control Panel Propane - IID	Yes	1 Day(s)	$490.74
14	471020	Control Panel Millivolt	Yes	1 Day(s)	$371.24
14	470989	Control Panel Propane - IID	Yes	1 Day(s)	$453.02
14	471021	Control Panel Millivolt	Yes	1 Day(s)	$372.44
14	471023	Control Panel Millivolt	Yes	1 Day(s)	$381.78
14	471022	Control Panel Millivolt	No	N/A	N/A	N/A
14	471024	Control Panel Millivolt	Yes	1 Day(s)	$386.52
16	070257	Control Panel Manifold burner	No	N/A	N/A	N/A
16	075526	Control Panel Manifold burner	No	N/A	N/A	N/A
16	075527	Control Panel Manifold burner	No	N/A	N/A	N/A
16	070258	Control Panel Manifold burner	No	N/A	N/A	N/A
17	075457	Control Panel Gas valve natural - Millivolt	No	N/A	N/A	N/A
17	075458	Control Panel Gas valve propane - Millivolt	No	1 Day(s)	$204.65
17	073999	Control Panel Gas valve propane -IID	No	N/A	N/A	N/A
17	073998	Control Panel Gas valve natural -IID	No	N/A	N/A	N/A
18	075192	Control Panel Pilot tube - IID	No	N/A	N/A	N/A
18	076084	Control Panel Pilot tube - Millivolt	No	N/A	N/A	N/A
18	076085	Control Panel Pilot tube - Millivolt	No	N/A	N/A	N/A
18	076086	Control Panel Pilot tube - Millivolt	No	N/A	N/A	N/A
18	075191	Control Panel Pilot tube - IID	No	N/A	N/A	N/A
18	075193	Control Panel Pilot tube - IID	No	N/A	N/A	N/A
19	073751	Burner Tray Natural - IID	No	N/A	N/A	N/A
19	075496	Burner Tray Natural - Millivolt	No	N/A	N/A	N/A
19	073904	Burner Tray Propane - IID	No	N/A	N/A	N/A
19	075510	Burner Tray Propane - IID	No	N/A	N/A	N/A
19	075509	Burner Tray Propane - IID	No	N/A	N/A	N/A
19	073905	Burner Tray Propane - IID	No	N/A	N/A	N/A
19	075493	Burner Tray Propane - IID	No	N/A	N/A	N/A
19	075499	Burner Tray Natural - IID	No	N/A	N/A	N/A
19	073906	Burner Tray Natural - IID	No	N/A	N/A	N/A
19	073750	Burner Tray Natural - IID	No	N/A	N/A	N/A
19	075501	Burner Tray Natural - IID	No	N/A	N/A	N/A
